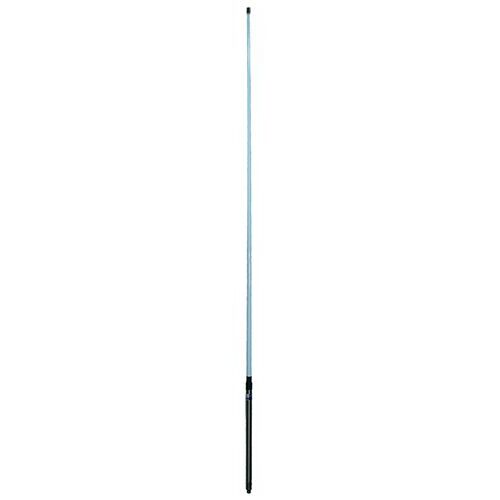

ZCG Scalar CMG1600AM 8.1dBi Mast Mounted Marine & Base Station Antenna


Key Features


  • All white fibreglass construction

  • Stainless steel mount tube

  • Integrated N Female connector

  • Australian made.




  • Stay connected on the water by using this antenna with your mobile phone and wireless broadband modem

  • With 8.1 dBi gain, these mast mount models offer the maximum gain and reception range practical in a broadband omnidirectional cellular mobile phone base station antenna

  • The white fibreglass radome and stainless steel mount tube stands 2.4 metres tall

  • The antenna is matched internally by a unique transforming printed circuit board

  • The N-Female connector located at the base of the mount tube is rated for up to 20 Watts input power

  • This antenna is also often used as a fixed base-station antenna on machinery, temporary work sites, mining accommodation, and more

  • All components used are of the highest quality to ensure long term survival in the harshest weather conditions and environments

  • These antennas will deliver reliable performance for many years.


Specifications / Frequency


Network Compatibility

Optus & Vodafone GSM (900MHz)

All other networks
not compatible


Electrical Specifications


  • Frequency Range: 890-960MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 20Watts

  • Vertical Beamwidth: 13°




  • Construction: White fibreglass radome, stainless steel mount tube

  • Cable: none supplied

  • Connector: N Female

  • Temperature: -40°C +70°C

  • Weight: 0.7kg

  • Height: 2.4m

  • Mounting: 2 parallel clamps (not supplied)



N Flange panel mount connector


N Female Connector [pictured]


  • This antenna has an integrated N Female connector at the base of the mounting tube. There is no cable supplied.


A heads up!


over-size item symbol sign


Special Delivery Information:

  • This product is over 2m in length and must be sent by specialist freight companies

  • Understandably a 2m long cardboard tube can be easily damaged so this product is shipped in a custom made PVC enclosure

  • Due to the costs incurred shipping of this item is expensive, irrespective of whether we're shipping it to Sydney metro, or to Canada.


Read More



zcg scalar antennas logo



Brand ZCG
Shipping Weight 2.3000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 2.400m
Shipping Cubic 0.024000000m3
