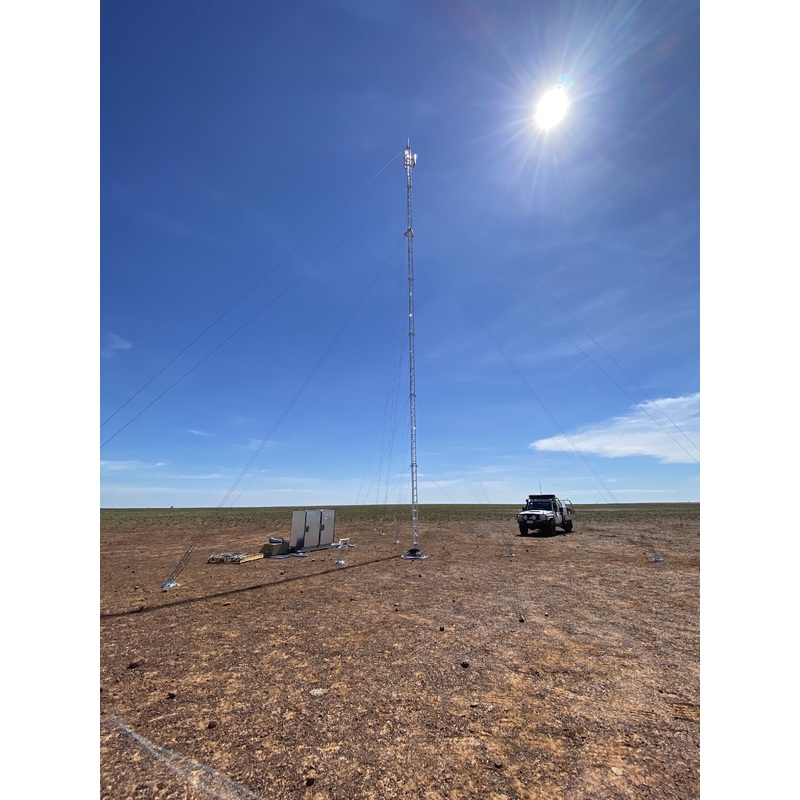

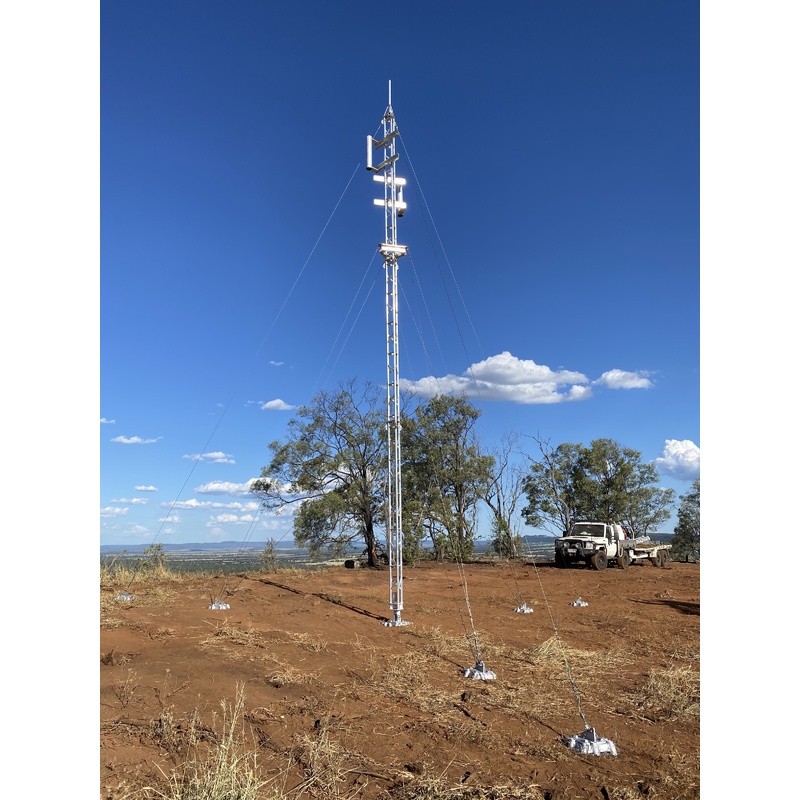

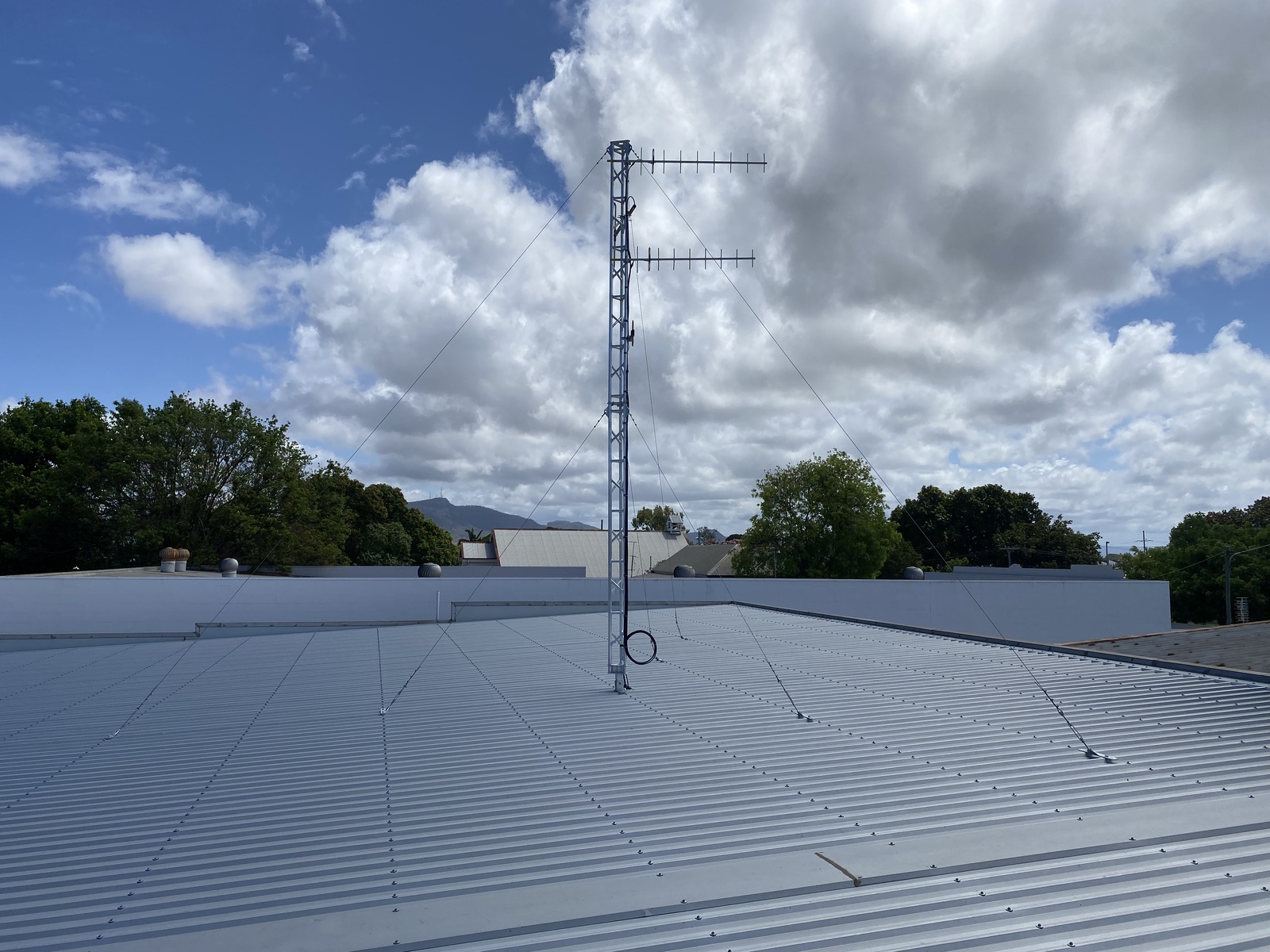

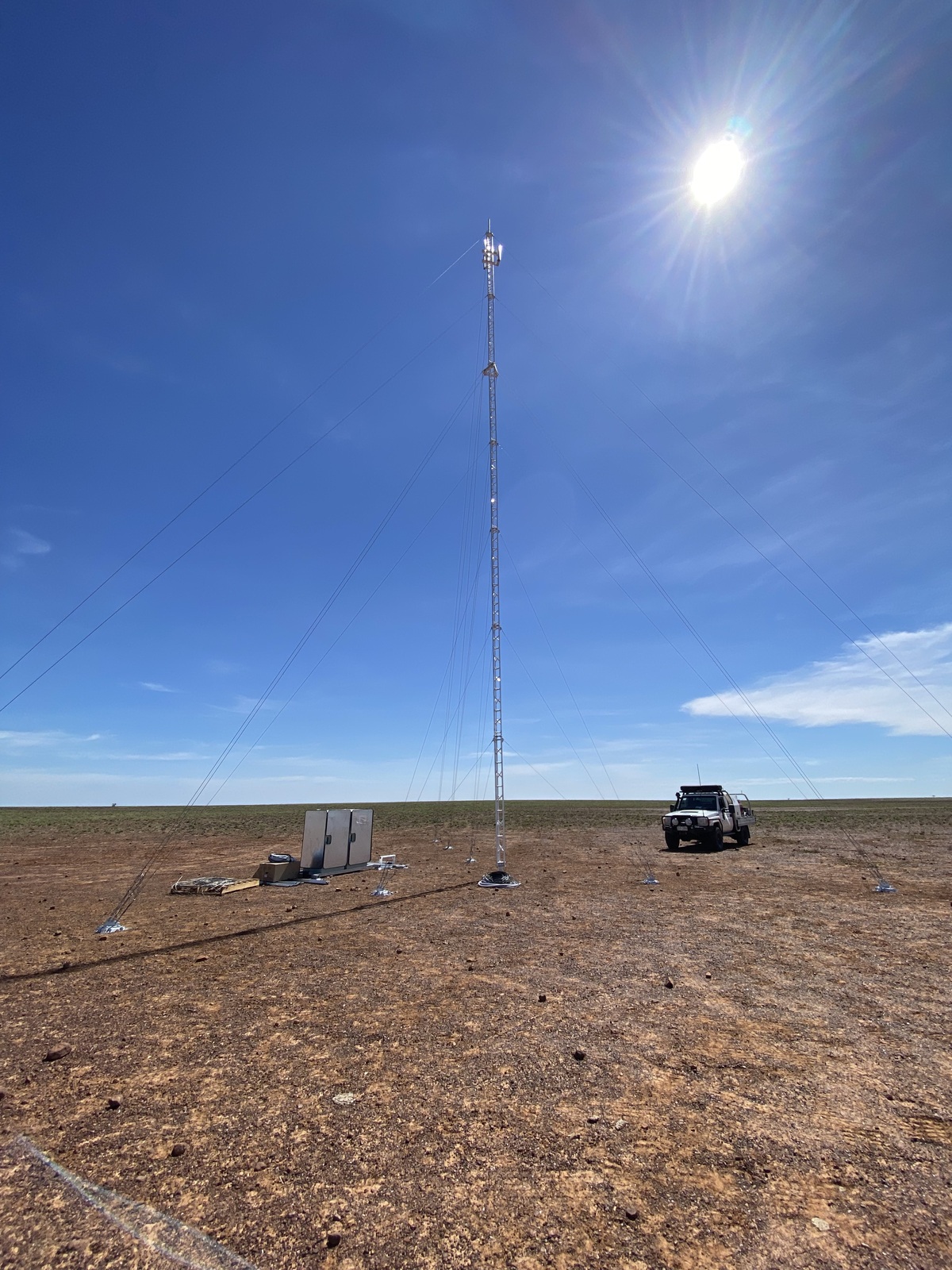

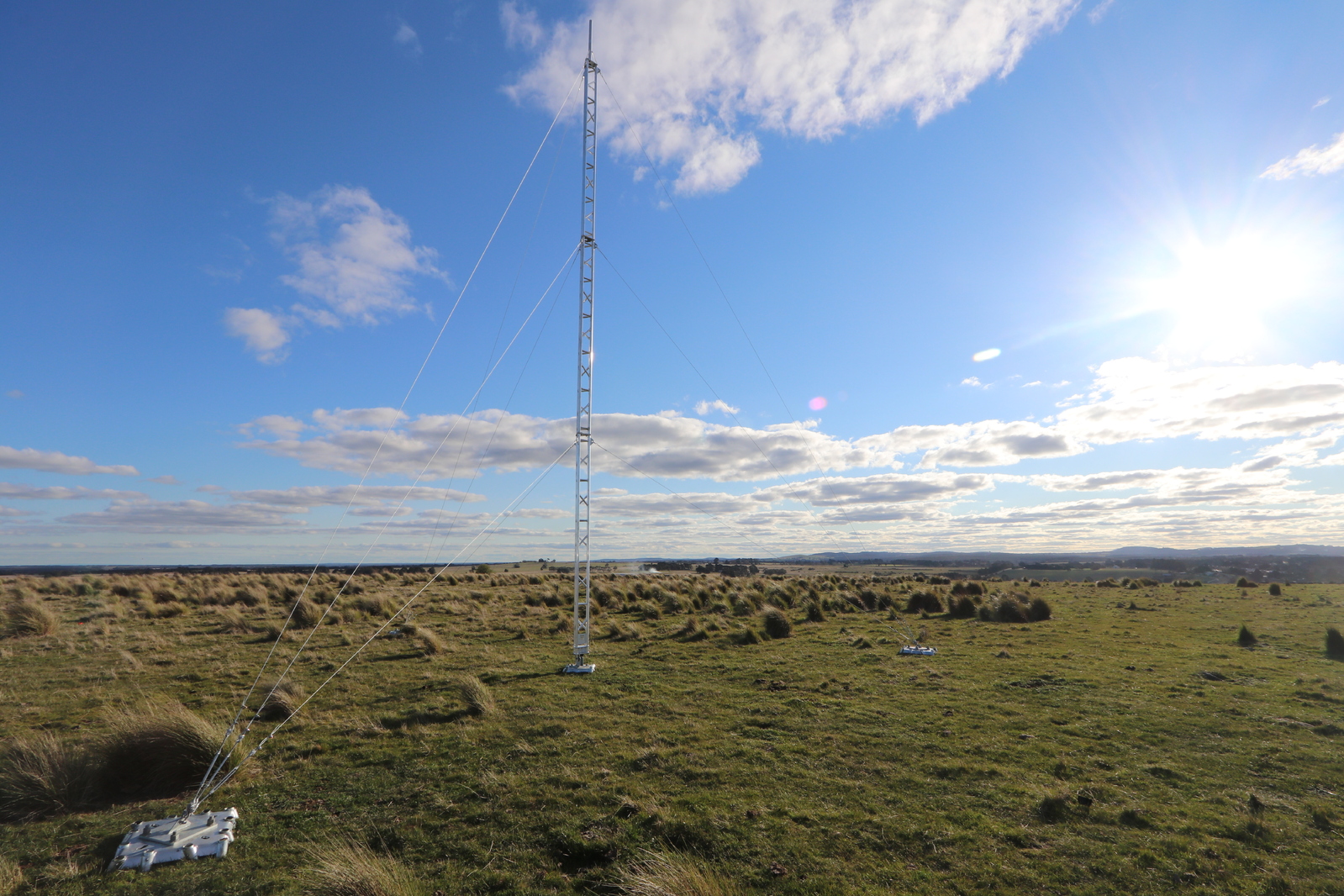

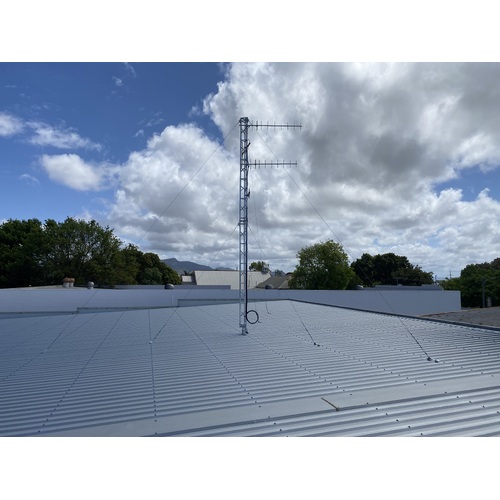

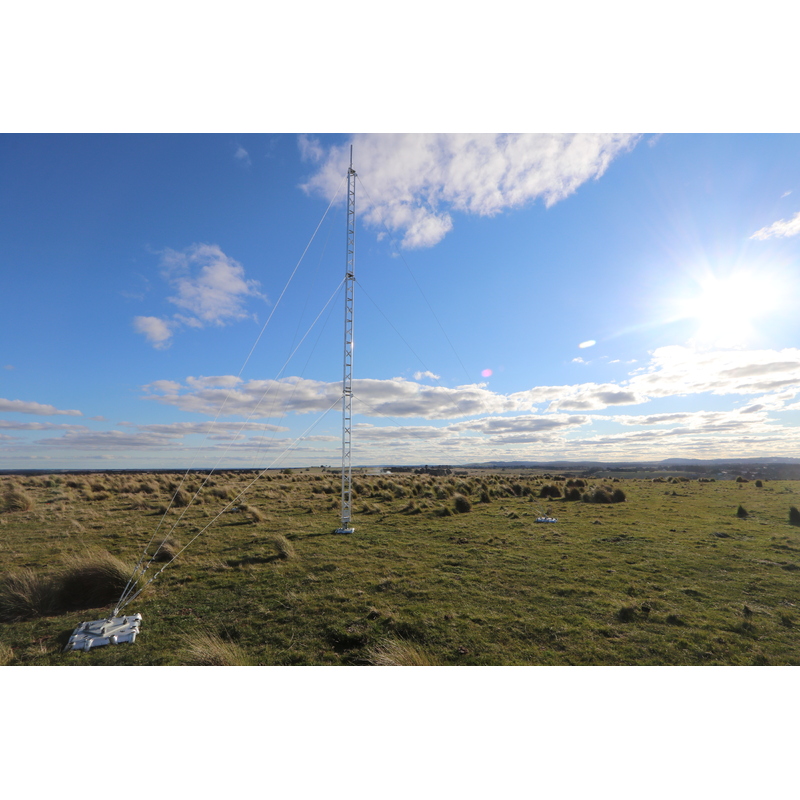

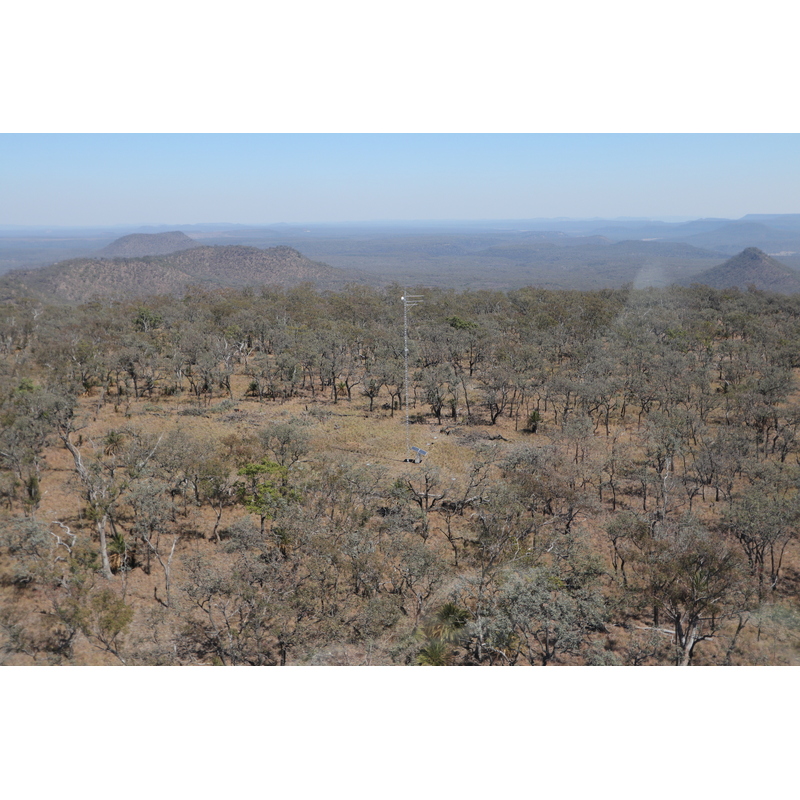

Guyed Serviceable Aluminium Lattice Tower Roof Mount (210mm Faced) - Modular, Lightweight 3m Sections


Key Features


  • Engineer certified to support dish antennas up to 900mm in diameter in 100km/h winds

  • Modular design can reach heights up to 21m and be couriered directly to your location like a standard package

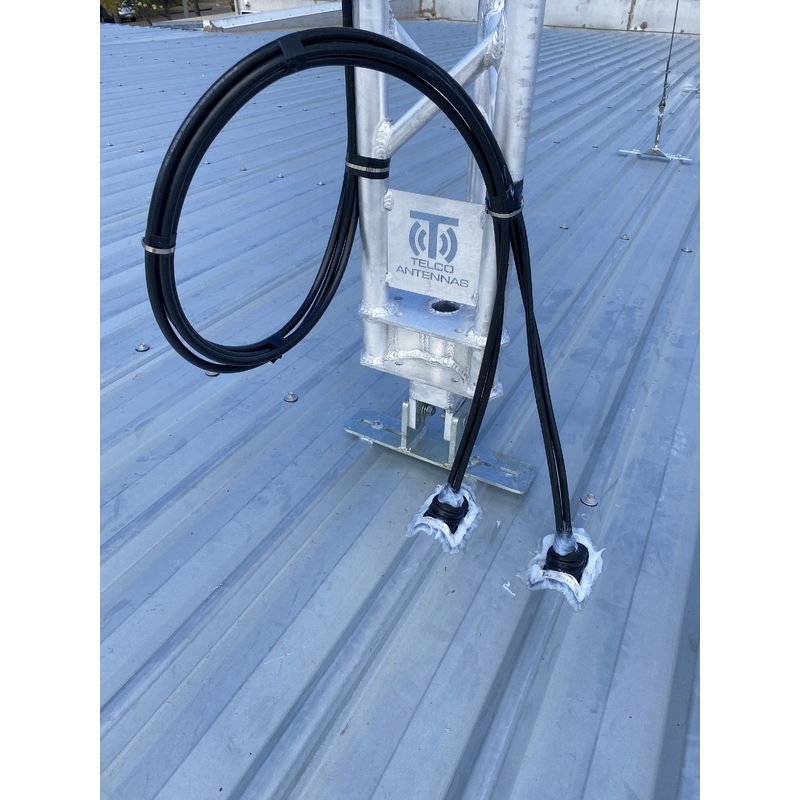

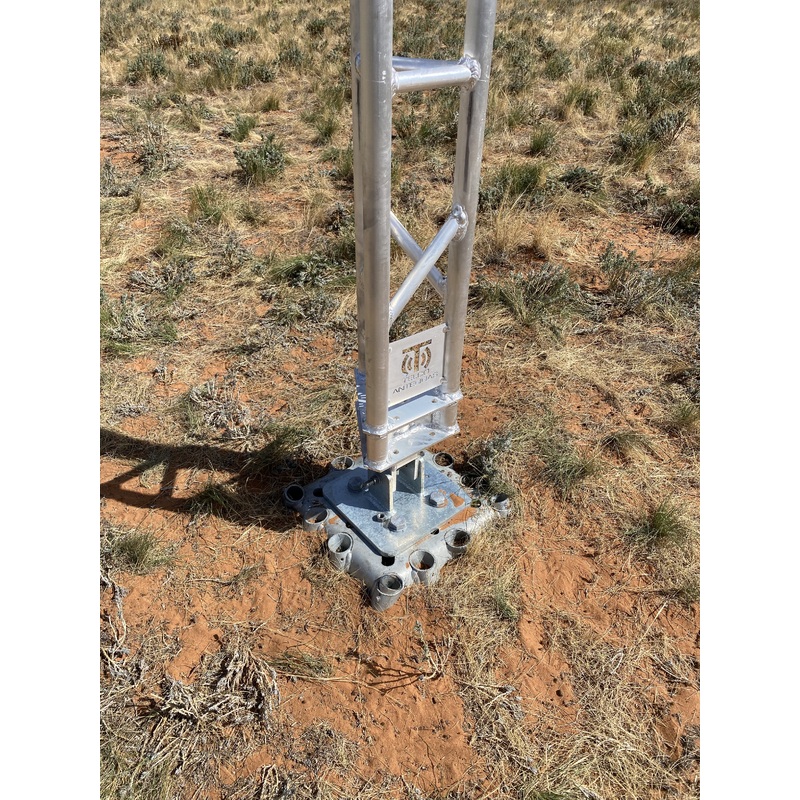

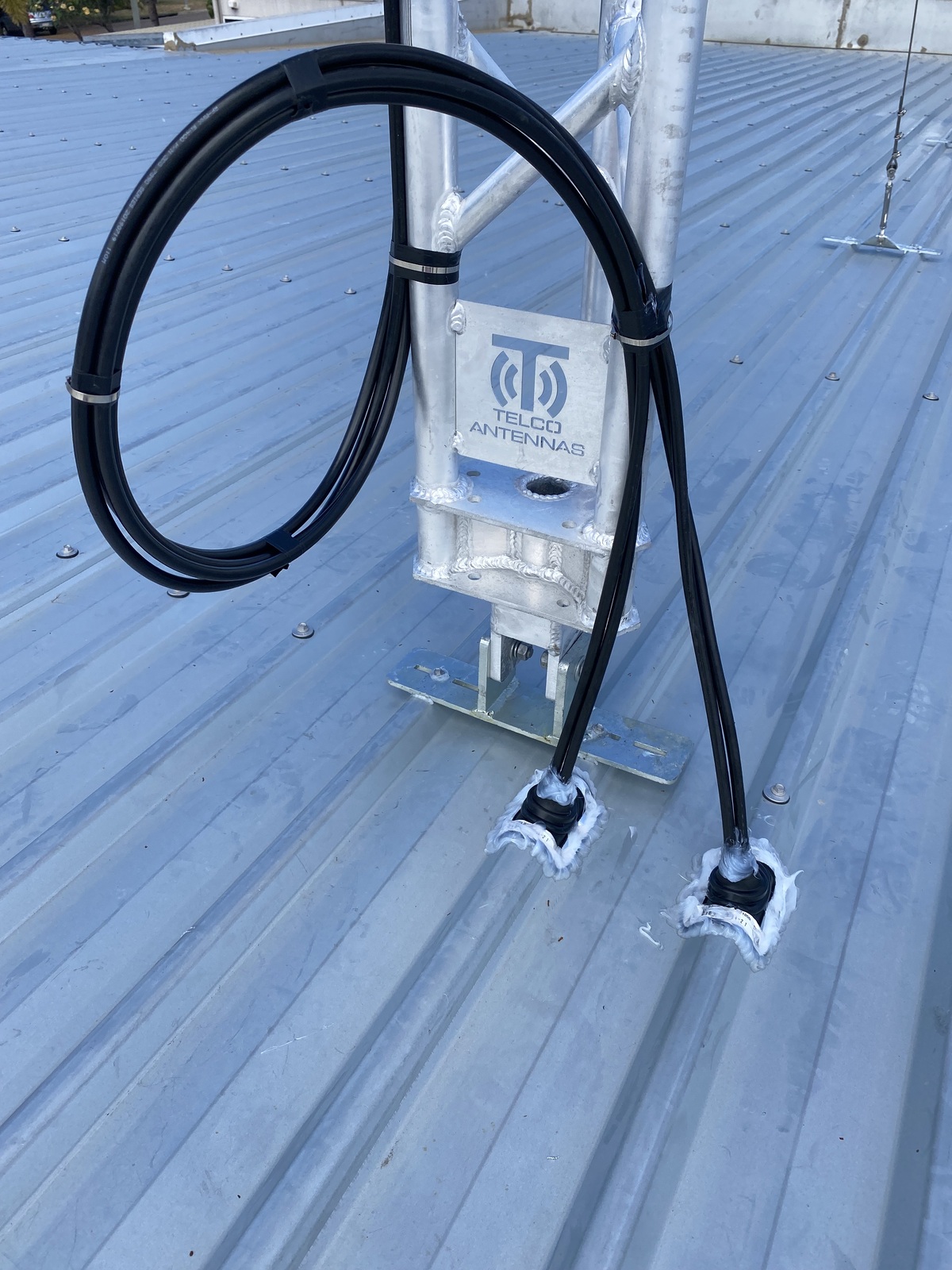

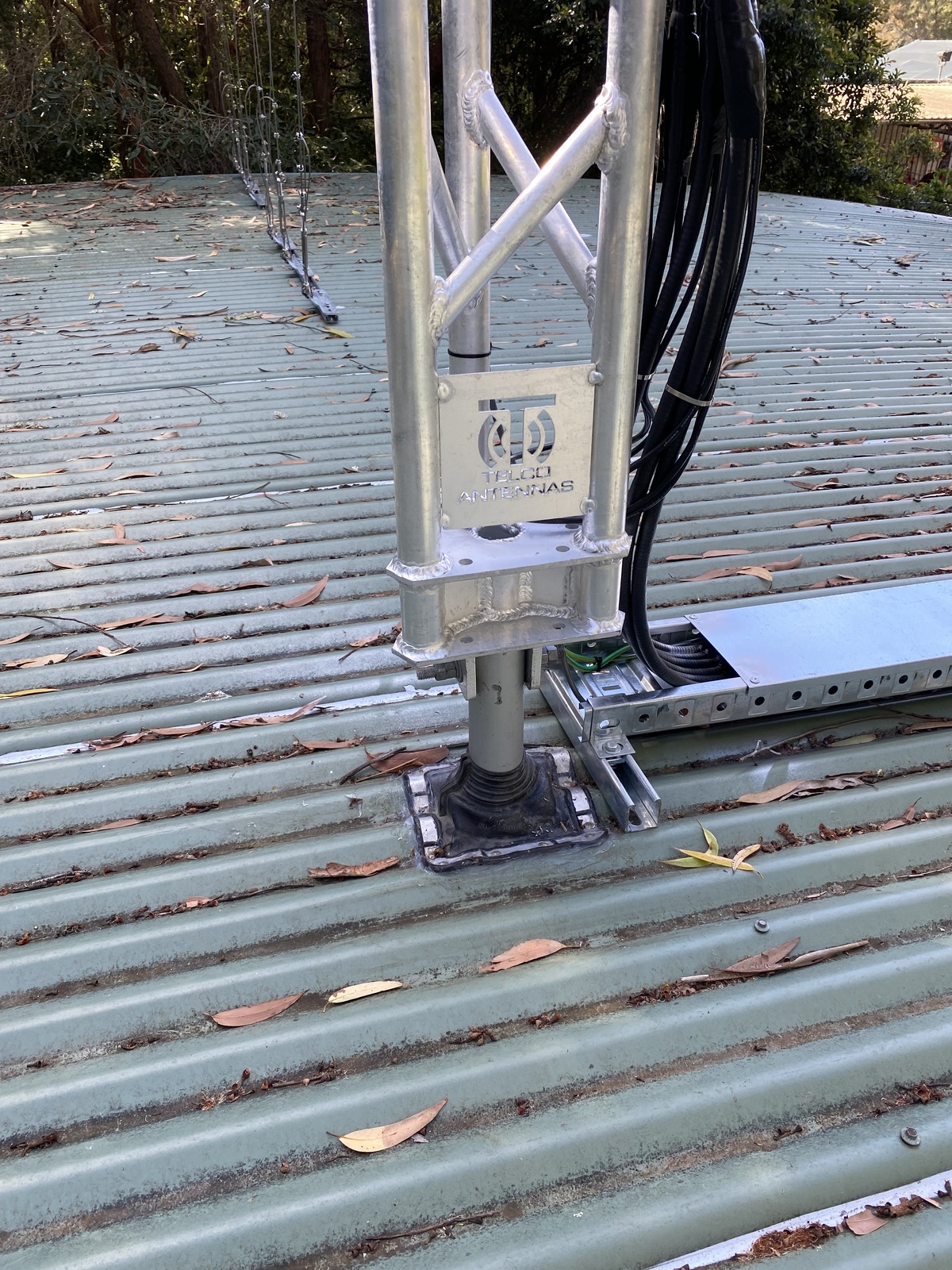

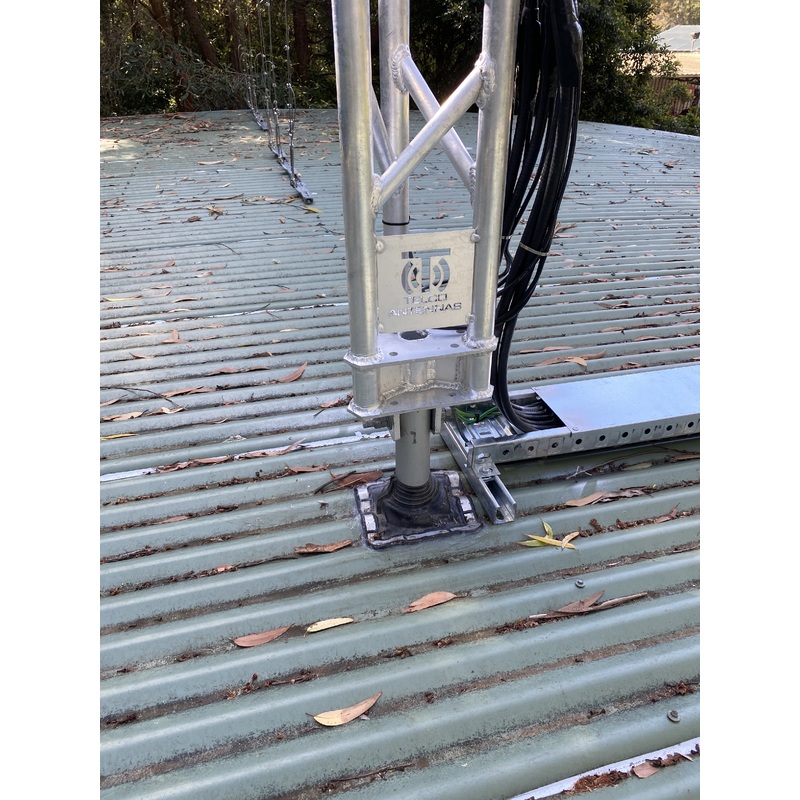

  • Custom swivel baseplate allows the mast to be installed on a wide range of roof angles/pitches and the entire mast can be lowered down to the roof level

  • Design facilitates easy access to the headload and makes performing maintenance or adjustments a simple procedure

  • Regular production runs ensure we have a large number of sections in stock and can supply components quickly.








  • Modular design that is easily adapted to suit height applications.




  • Aluminium fabrication in accordance to AS1664

  • Aluminium welding in accordance to AS1665

  • 7/16" Zinc or Stainless Steel bolts in accordance to ISO 3506 U.N.O.

  • Guy cables in accordance to AS3569, Class 7x19 Grade 2070

  • Guy wire preload tension to 1.0 kN

  • Cable joins and attachments in accordance to AS2579

  • Structure classification per AS3995 is Type II


Engineer approved recommendations

  • Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

  • We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.


Please contact us for:

  • orders of multiple towers, trade pricing, lead times, and to discuss customisation of mast for a specific project

  • maximum dish size, heights and bracing information for your application.



tower configuration plan tower foot print tower configuration plan




Shipping Weight 15.0000kg
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 3.125m
Shipping Cubic 0.382812000m3
