Key Features



  • Heavy duty industrial grade design

  • 2.4/5 GHz IEEE 802.11a/b/g and 802.11ac applications

  • UV-Resistant radome for all-weather operation
  • Heavy duty steel mounting brackets

  • Supports 1x2 and 2x2 MIMO AP/Routers

  • Dual Integrated N-Female connectors.



Usage



  • The Telco ATA-FP2458HV is a professional high gain MIMO dual band omnidirectional base station Wi-Fi antenna designed and optimised for the 2.4 and 5.8GHz frequency

  • The Telco ATA-FP2458HV is actually two antennas in one, a 2.4/5GHz horizontal polarised antenna and a 2.4/5GHz vertical polarised antenna together in a single radome

  • This antenna is ideally suited for multipoint applications where long range and wide coverage is desired

  • Twin N-Type female connectors are utuilised for the Antennas RF Connectors

  • Extremely rugged and weatherproof

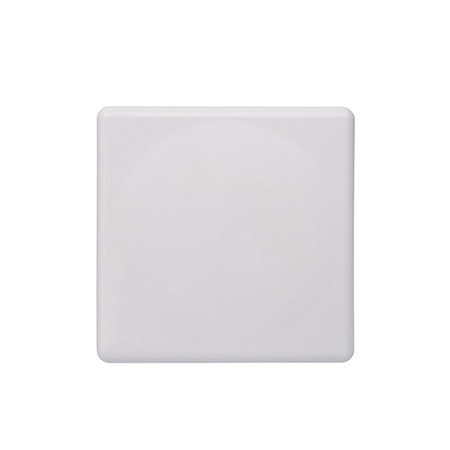

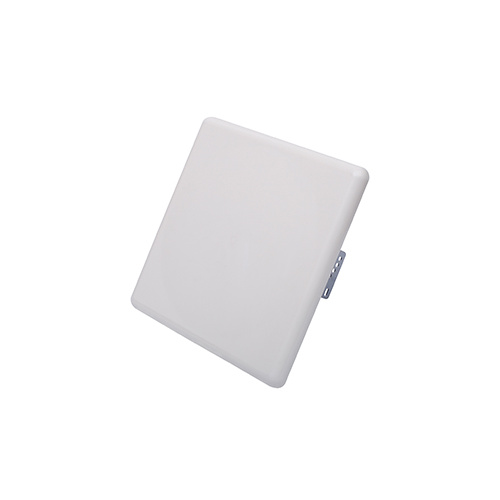

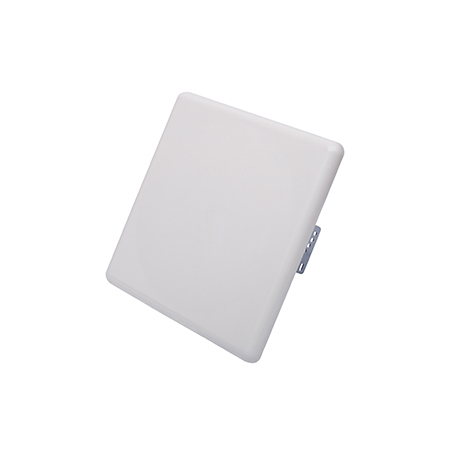

  • The ATA-FP2458HV construction features a heavy-duty UABS radome for durability and aesthetics

  • Designed to operate in the harshest of environments, the ATA-FP2485HV far exceeds other X polarised Wi-Fi antennas

  • The included mounting system features a heavy-duty mounting brackets



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400-2500MHz)
compatible
13dBi
ISM & Bluetooth (2450MHz)
compatible
13dBi
802.11 a/n/ac WiFi (5150-5850MHz)
compatible
17dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz / 5150-5850MHz

  • Input Impedance: 50Ω

  • Input Power: 50W

  • VSWR: <1.5:1, <1.7:1

  • Vertical Beamwidth: 35° /38°

  • Polarisation: Vertical (Con1) / Horizontal (Con2)

Mechanical/Environmental Specifications



  • Construction: UV Resistant PVC radome, stainless steel mounting bracket

  • Cable: None supplied

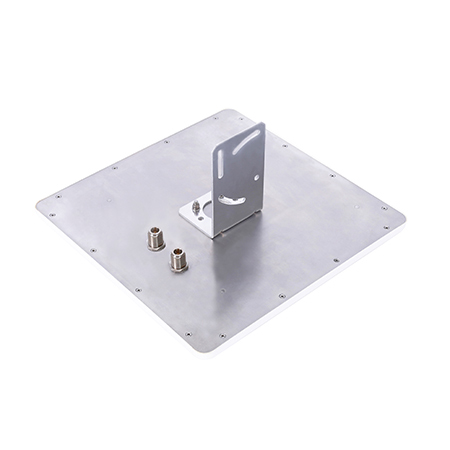

  • Connector: Dual Integrated N Female

  • Weight: 1.8kg

  • Height: 305mm

  • Diameter: 305mm

  • Thickness: 25mm

  • Operating Temperature: -40° to +60°C

  • Wind velocity: 200km/h (survival)

  • Mounting: 2x Parallel Clamp suit 40-65mm OD

(TA-2458-13-17)

SKU TA-2458-13-17
Brand Telco
Shipping Weight 1.6000kg
Shipping Width 0.320m
Shipping Height 0.075m
Shipping Length 0.315m
Shipping Cubic 0.007560000m3
