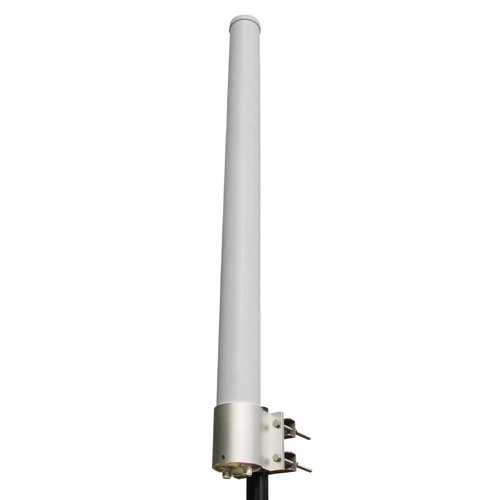

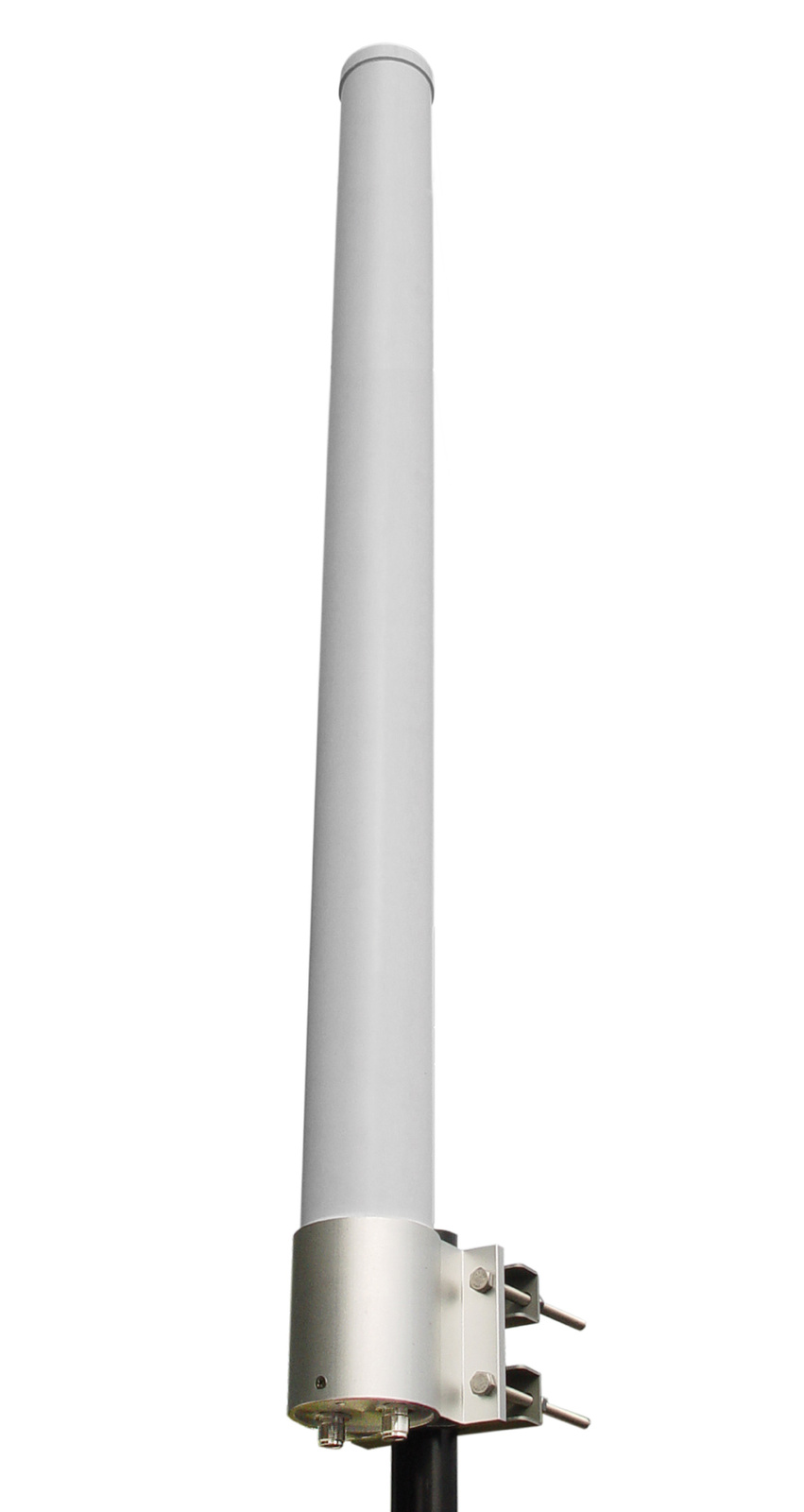

HyperLink 6dBi / 11dBi Dual Band 2.4 / 5.8GHz MIMO Omni Antenna

Key Features

• Heavy duty industrial grade design

• 2.4/5 GHz IEEE 802.11a/b/g and 802.11ac applications

• UV-Resistant radome for all-weather operation

• Twin heavy duty steel mounting brackets and u-bolts

• Supports 1x2 and 2x2 MIMO AP/Routers

• Dual Integrated N-Female connectors.

Usage

• The HyperLink HG2458-11DPU2 is a professional high gain MIMO dual band omnidirectional base station Wi-Fi antenna designed and optimised for the 2.4 and 5.8GHz frequency

• The HG2458-11DPU2 is actually two antennas in one, a 2.4/5GHz horizontal polarized antenna and a 2.4/5GHz vertical polarized antenna together in a single radome

• This antenna is ideally suited for multipoint applications where long range and wide coverage is desired

• Twin N-Type female connectors are utuilised for the Antennas RF Connectors

• Rugged and weatherproof

• The HG2458-11DPU2 construction features a heavy-duty fiberglass radome for durability and aesthetics

• Designed to operate in the harshest of environments, the HG2458-11DPU2 far exceeds other omnidirectional antennas

• The included mounting system features twin heavy-duty mounting brackets and u-bolts for superior strength.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
802.11 b/g/n/ac WiFi (2400MHz)		6dBi
ISM & Bluetooth (2400MHz)		6dBi
802.11 a/n/ac WiFi (5800MHz)		11dBi

Electrical Specifications

• Frequency Range: 2400-2500MHz / 5100-5850MHz

• Input Impedance: 50Ω

• Input Power: 100W

• VSWR: <1.6:1 / <1.9:1

• Vertical Beamwidth: 30° / 6.5°

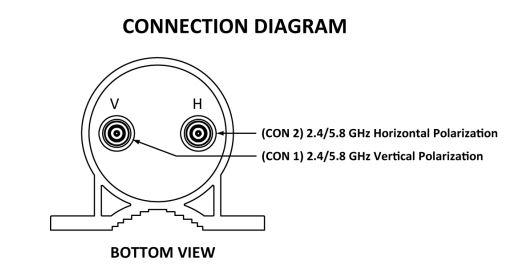

• Polarisation: Vertical (Con1) / Horizontal (Con2)

• Radiation: Omnidirectional

Mechanical/Environmental Specifications

• Construction: UV Resistant PVC radome, stainless steel mount tube

• Cable: None supplied

• Connector: Dual Integrated N Female

• Weight: 3.5kg

• Height: 1250mm

• Diameter: 75mm

• Operating Temperature: -40° to +60°C

• Mounting: 2x Parallel Clamp suit 30-60mm OD
