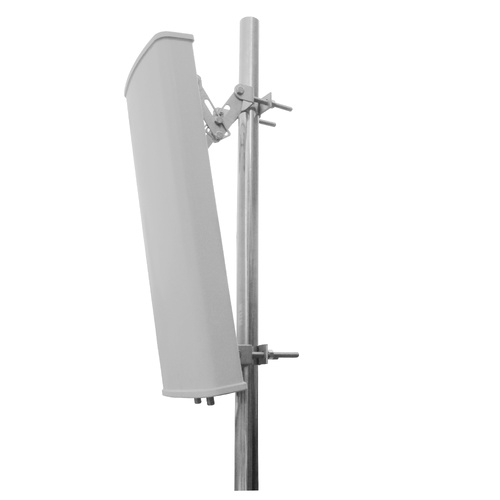

Telco Antennas 2.4GHz & 5GHz Dual Band WiFi Sector Antenna  - 15dBi / 16dBi

Key Features

• Heavy Duty Industrial Grade Design
• Dual Pol MiMo Design
• High Gain 90° Sector Antenna
• 2.4/5 GHz IEEE 802.11a/b/g and 802.11ac applications
• Dual Integrated N Female Connectors

Usage

• The Telco XPOL-2458-1516 is a professional high gain MIMO dual band omnidirectional base station Wi-Fi antenna designed and optimised for the 2.4 and 5.8GHz frequency

• The Telco XPOL-2458-1516 is actually two antennas in one, a 2.4/5GHz horizontal polarised antenna and a 2.4/5GHz vertical polarised antenna together in a single radome

• This antenna is ideally suited for multipoint applications where long range and wide coverage is desired

• Twin N-Type female connectors are utuilised for the Antennas RF Connectors

• Extremely rugged and weatherproof

• The XPOL-2458-1516 construction features a heavy-duty UPVC radome & internal Aluminium Elements for durability and aesthetics

• Designed to operate in the harshest of environments, the XPOL-2458-1516 far exceeds other X polarised Wi-Fi antennas

• The included mounting system features a heavy-duty mounting brackets

Specifications / Frequency

Network Compatibility	Yes/No	Gain
802.11 b/g/n/ac WiFi (2400-2500MHz)		15dBi
ISM & Bluetooth (2450MHz)		15dBi
802.11 a/n/ac WiFi (5150-5850MHz)		16dBi

Electrical Specifications

• Frequency Range: 2400-2500MHz / 5150-5850MHz

• Input Impedance: 50Ω

• Input Power: 50W

• VSWR:  <1.7:1

• Vertical Beamwidth: 12° /8° ±10°

• Horizontal Beamwidth: 90° / 90° ±10°

• Polarisation: ±45°

Mechanical/Environmental Specifications

• Radome Construction Material: UPVC

• Cable: None supplied

• Connector: Dual Integrated N Female

• Weight: 8.5kg

• Height: 700mm

• Diameter: 285mm

• Thickness: 90mm

• Operating Temperature: -40° to +60°C

• Wind velocity: 200km/h (survival)

• Mounting: Dual Integragted Pole Mounts

• Mounting Pole: 40-65mm OD

​
