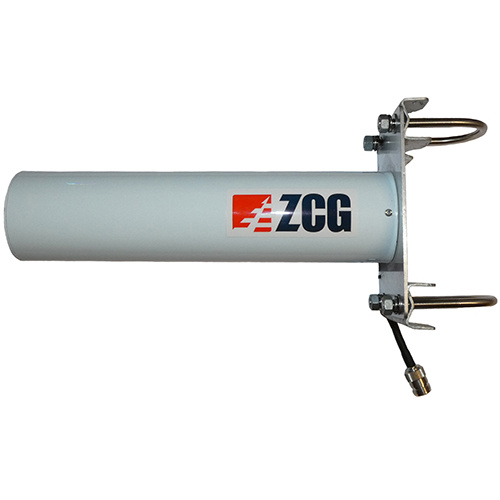

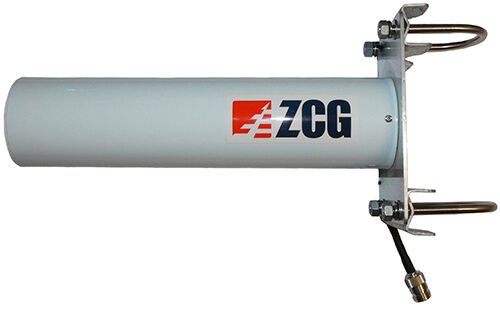

ZCG 2.4GHz WiFi High Gain Enclosed Yagi Antenna 2.4-2.5GHZ 11dBi - N Female



Key Features



  • 11.3dBi Gain on 2.4GHz WiFi

  • 12dBi peak gain on 5.8GHz

  • SiSo Antenna - Single Connector

  • Enclosed Radome

  • Rugged construction

  • Aluminium Mounting Plate & Clamps Included (50mm OD)



Usage



  • The ZCG Scalar Y2400-9 is a high-gain, directional 2.4 GHz Yagi antenna engineered for reliable wireless data transmission across point-to-point and point-to-multipoint networks. Covering the 2.4-2.5 GHz ISM band, this antenna is optimised for WiFi/WLAN, telemetry, and industrial data link applications where signal focus and range extension are critical.

  • Delivering 11.3 dBi gain, the Y2400-9 enhances link performance in congested RF environments by concentrating energy in a defined beamwidth?supporting stable connectivity for system integrators deploying remote communications infrastructure. Typical deployments include smart agriculture systems, utility monitoring, transport telemetry, and industrial IoT networks.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400MHz)
compatible
<11.3dBi



Electrical Specifications



  • Frequency Range: 2.3 to 2.7 GHz / 5.15 to 5.8 GHz

  • Gain: <12 dBi

  • VSWR: <2:1

  • Input power max: 25 Watts

  • Input Impedance: 50Ω

  • Horizontal Beamwidth: 36°

  • Elevation Beamwidth: 43°



Mechanical/Environmental Specifications



  • Construction Material - Fibreglass Parallel Radome

  • Dimensions: 300 x 80mm

  • Weight: 1.5kg

  • Cable: 200mm RG58

  • Connector: N-Type Female



Read More





(Y2400-9)

SKU Y2400-9
Brand ZCG
Shipping Weight 0.5000kg
Shipping Width 0.120m
Shipping Height 0.200m
Shipping Length 0.120m
Shipping Cubic 0.002880000m3
