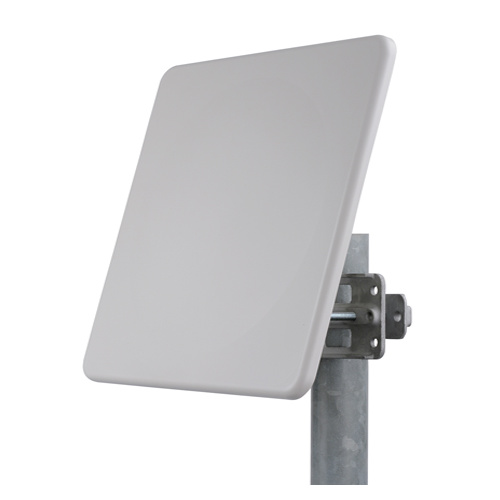

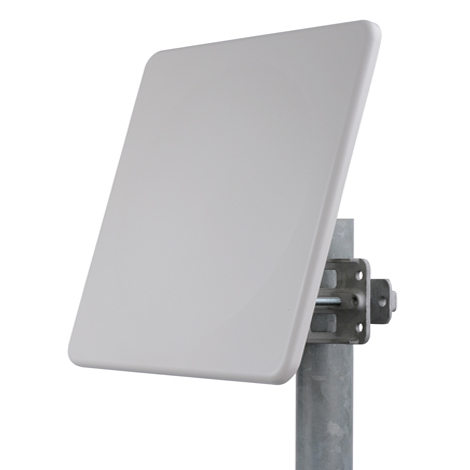

MARS 5.125-6.1 GHz Triple Polarization MIMO Subscriber Antenna



Key Features

  • Carrier grade construction
  • 3 Ports: Dual Slant (±45º) and Vertical Polarization.
  • Specially designed for MIMO applications for optimal decorrelation.
  • Light weight and durable construction.
  • UV Stable polycarbonate radome
  • Designed for 3.4GHz PtMP and 3.6GHz remote licence applications.



Usage



  • MARS MA-WA55-TPMIMO is an industrial grade Triple Polarization MIMO Subscriber Antenna designed for 5GHz point to multipoint wireless networks.

  • With a small 305 x 305mm form factor this high performance antenna achieves 19dBi across the entire 5.125 to 6.1GHz bandwidth

  • The antenna can be mounted in vertical+horizontal polarisation or slant mounted for cross-polarised systems with the supplied MNT-22 pole mounting kit.



 Specifications / Frequency



Network Compatibility
Yes/No
Gain
UNII-1 5.15GHz - 5.25GHz
compatible
19dBi
UNII-2 5.25GHz - 5.35GHz
compatible
19dBi
UNII-2e 5.47GHz - 5.725GHz
compatible
19dBi
UNII-3 5.725GHz - 5.85GHz compatible 19dBi



Electrical Specifications



  • Frequency Range: 5125 - 6100MHz

  • Input Impedance: 50Ω

  • VSWR: <1.7:1

  • Gain (Vertical Pol): 19 dBi

  • Gain (Dual Slant Pol): 17.5dBi

  • Polarisation: Dual Slant

  • Port to Port Isolation: -40 dB (Vertical to ±45° Dual Slant)

  • Port to Port Isolation: -30 dB (+45° Dual Slant to -45° Dual Slant)

  • Ratio: >35dB



Mechanical/Environmental Specifications



  • Cable: None

  • Connector: 3 x N Female

  • Wind Rating: 200km/hr

  • Weight: 1.5kg

  • Mounting: Pole mounting bracket included

  • Dimensions: 305 x 305 x 15mm

  • Flammability: UL94

  • Weather Rating: IP67

  • Compliance: ETSI TS3, RoHS



Read More



(MA-WA55-TPMIMO)

SKU MA-WA55-TPMIMO
Brand Mars Antennas
Shipping Width 0.350m
Shipping Height 0.050m
Shipping Length 0.350m
Shipping Cubic 0.006125000m3
