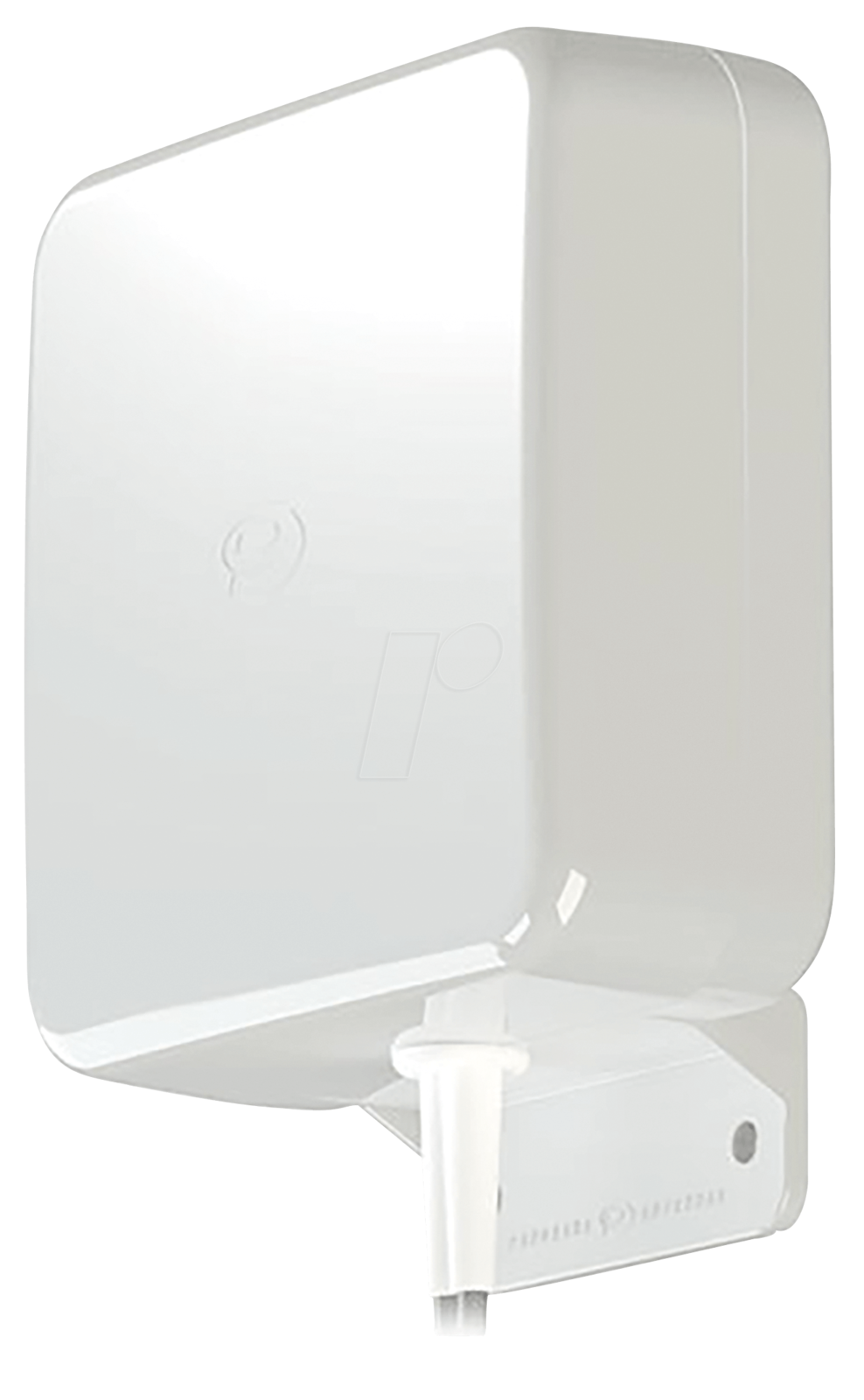

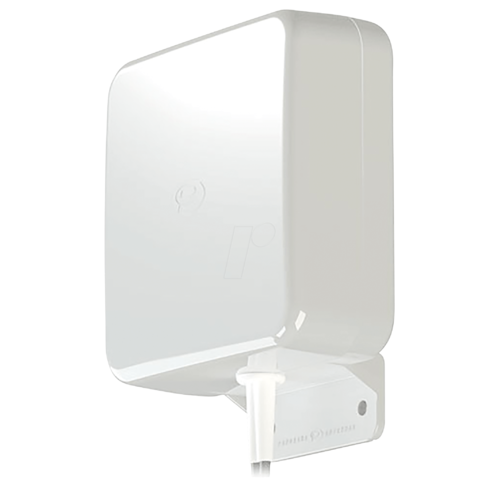

Panorama 2x2 MIMO 3G, 4G & 5G Directional Panel Antenna

Key Features

• Ultra wide-band coverage 700 to 3800MHz

• Wall Mount, Pole Mount & Desk Mount

• Your choice of cable length and connectors (SMA or N-type)

• Two cables for true 2x2 MIMO operation

• Wide spectrum design, suits all current and planned cellular networks (including future 5G Networks).

Additional Information

• The brilliance of this antenna is its wideband design - operating on three separate bands 698-960MHz, 1710-2700MHz, and 3400-3800MHz

• With a compact design this panel antenna will stand up to the challenge of ever-changing network frequencies for years to come

• This is one of the few antennas on the market capable of covering the recently auctioned 5G spectrum, as well as all current 3G and 4G Mobile Networks utilised in Australia.

Usage

• Not sure if you'll get 5G? With an equally high gain on all other 4G/3G networks, you can still improve your current connection

• Take full advantage of the blistering fast 4G network it won't matter whether you are with Telstra, Optus and Vodafone's or one of their resellers

• If you're outside the official 4G 'coverage zone' or your modem keeps switching back over to 3G, this antenna will help you lock on, or increase the signal strength and speed of your 4G connection.

• Ideal for suburban and metro areas

• Antennas like this that offer a Wide Beamwidth are ideal for areas where hills and buildings are very close to your location

• This antenna rests at ground potential, providing improved lightning protection and reduced precipitation static noise

• Termination is via your choice of 'N' female coaxial connectors fitted to short cable tails, or SMA male connectors fitted to 5m CS29 cables

• If used as a 5G or you are connecting to the higher bands within the 4G offering we strongly suggest selecting the 500mm N Female option and using LCU400 extension cables due to the high attenuation losses suffered on higher frequencies.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		6dBi
Optus 4G+ (700MHz)		6dBi
Telstra Next-G™ (850MHz)		6dBi
Vodafone 4G+(850MHz)		6dBi
Optus Regional 3G (900MHz)		6dBi
Vodafone Regional 3G (900MHz)		6dBi
Telstra/Optus/Voda 4G (1800MHz)		9dBi
All carriers - Urban/Metro 3G (2100MHz)		9dBi
Optus 4G/Vivid Wireless (2300MHz)		9dBi
LTE-TDD Bands 38, 40 (2300MHz)		9dBi
802.11 b/g/n/ac WiFi (2400MHz)		9dBi
Telstra 4Gx (2600Mhz)		9dBi
Optus 4G+ (2600Mhz)		9dBi
Future 5G Networks		9dBi

Electrical Specifications

• Frequency Range: 650-960MHz / 1710-2700MHz / 3400-3800MHz

• Input Impedance: 50Ω

• VSWR: <2:1

• Vertical Beamwidth: 70° / 100° / 80°

• Horisontal Beamwidth: 60° / 165° / 55°

• Maximum Power: 20 Watts

Mechanical/Environmental Specifications

• Construction: White Impact Resistant ASA

• Cable: 500mm tails or 5m CS29 cables

• Connector: N-Type Female or SMA Male

• Temperature: -30°C +80°C

• Weight: 0.955kg

• Dimensions: 230 x 180 x 94mm (L x W x D)

• Ingress Protection: IP65
