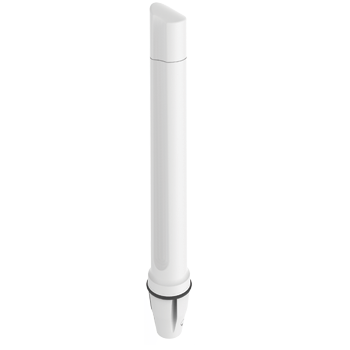

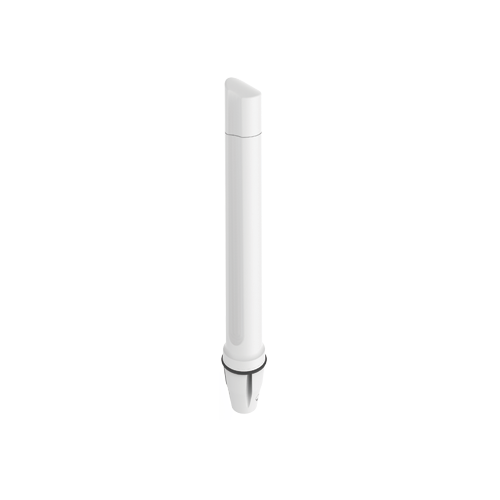

Poynting Wideband Omni-Directional Coastal MiMO Antenna - 3G, 4G & 5G



Key Features

  • Medium gain omni-directional antenna

  • Ultra Wide Band Operation

  • The Antenna is purpose-built for marine and coastal operation

  • UV and salt-water resistant

  • Robust and weather resistant design with IP 68 rating

  • 2X2 MIMO capable for improved performance

  • Includes 3.5 GHz CBRS band and is 5G ready



Usage

  • The OMNI-402 is an ultra-wide band antenna, which covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies.
  • The antenna also offers 2X2 MIMO capability from its vertically separated radiating elements, all in the same radome.
  • The antenna design allows the antenna to have superior pattern control over the entire frequency range making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications.
  • Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network.
  • The antenna is future proof as it covers the 450 MHz LTE frequency band, which is becoming more popular in various regions and countries. This antenna is also 3400 – 3800 MHz capable for coastal and inland use.

Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
6.2dBi
Optus 4G+ (700MHz)
compatible
6.2dBi
Telstra Next-G™ (850MHz)
compatible
6.2dBi
Vodafone 4G+ (850MHz)
compatible
6.2dBi
Optus Regional 3G (900MHz).
compatible
6.2dBi
Vodafone Regional 3G (900MHz).
compatible
6.2dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
6.2dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
6.2dBi
Optus 4G TDD (2300MHz)
compatible
6.2dBi
Telstra 4GX (2600MHz)
compatible
6.2dBi
Telstra 5G (3500MHz)
compatible
2.2dBi
Optus 5G (3500MHz)
compatible
2.2dBi
Vodafone 5G (3500MHz)
compatible
2.2dBi



Electrical Specifications

Frequency Range: 410-470MHz / 698-2700MHz / 3400-3800MHz

Input Impedance: 50Ω

VSWR: <2.5:1 (over 90%)

Polarisation: Linear Vertical

Radiation: Omnidirectional

Maximum Power: 10Watt



Mechanical/Environmental

Product Dimensions: 750 mm x Ø75 mm (incl. BRKT-40)

Packaged Dimensions: 704 mm x 147 mm x 100 mm

Radome Material: UV Stable Marine ASA

Radome Colour: Brilliant White Pantone P 179-1C

Mounting Type: Standard 1'' -14 TPI marine mount & Wall/pole mount

Wind Survival: <160km/h

Tempreature Range: -40°C to +80°C

Water Ingress Rating: IP68

Salt Spray: MIL-STD 810G/ASTM B117

Operating Relative Humidity: Up to 98%

Complies with CE and RoHS standards



Specfication Sheet







(OMNI-0402-V1-02)

SKU OMNI-0402-V1-02
Brand Poynting
Shipping Weight 3.0450kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.200m
Shipping Cubic 0.012000000m3
