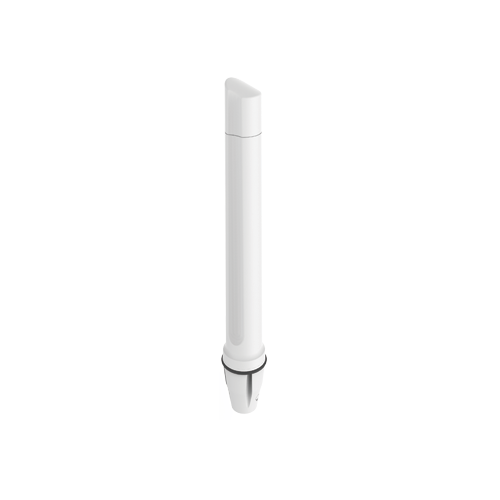

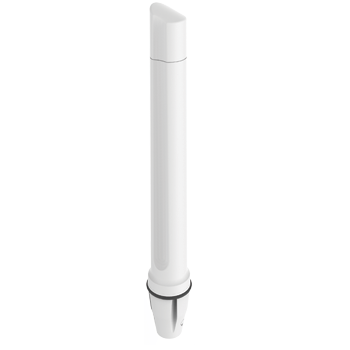

Poynting Wideband Omni-Directional, Marine & Coastal Antenna - 3G, 4G & 5G



Key Features

  • High gain omni-directional antenna

  • Wideband operation future proofs the Antenna

  • Includes 3.5 GHz 5G bands

  • Purpose-built for marine and coastal operation

  • Robust and weather resistant design with IP68 rating

  • UV stable and saltwater resistant enclosure for marine



Usage

  • The OMNI-493 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies.

  • The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. The antenna is future proof as it covers the up-and-coming LTE Band 71 (617 to 698 MHz band), as well as 3400 to 3800 MHz CBRS band which will be utilized for future 5G applications.

  • This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-493 a true high performance omni-directional antenna, suitable for marine and coastal applications.

  • The exceptional wideband performance is an important factor for LTE and future 5G technologies, where these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously.



Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
6dBi
Optus 4G+ (700MHz)
compatible
6dBi
Telstra Next-G™ (850MHz)
compatible
6dBi
Vodafone 4G+ (850MHz)
compatible
6dBi
Optus Regional 3G (900MHz).
compatible
6dBi
Vodafone Regional 3G (900MHz).
compatible
6dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
9dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
9dBi
Optus 4G TDD (2300MHz)
compatible
9dBi
Telstra 4GX (2600MHz)
compatible
9dBi
Telstra 5G (3500MHz)
compatible
8dBi
Optus 5G (3500MHz)
compatible
8dBi
Vodafone 5G (3500MHz)
compatible
8dBi



Electrical Specifications

Frequency Range: 617-960MHz / 1427-1517MHz / 1710-2700MHz / 3400-3800MHz

Input Impedance: 50Ω

VSWR: <2.5:1 (over 90%)

Polarisation: Linear Vertical

Radiation: Omnidirectional

Maximum Power: 10Watt



Mechanical/Environmental

Product Dimensions: 646 mm x Ø75 mm (excl. BRKT-40)

Packaged Dimensions: 704 mm x 147 mm x 100 mm

Radome Material: UV Stable Marine ASA

Radome Colour: Brilliant White Pantone P 179-1C

Mounting Type: Standard 1'' -14 TPI marine mount & Wall/pole mount

Wind Survival: <160km/h

Tempreature Range: -40°C to +80°C

Water Ingress Rating: IP68

Salt Spray: MIL-STD 810G/ASTM B117

Operating Relative Humidity: Up to 98%

Complies with CE and RoHS standards



Specfication Sheet







(OMNI-0493-V1-01)

SKU OMNI-0493-V1-01
Brand Poynting
Shipping Weight 3.0450kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.200m
Shipping Cubic 0.012000000m3
