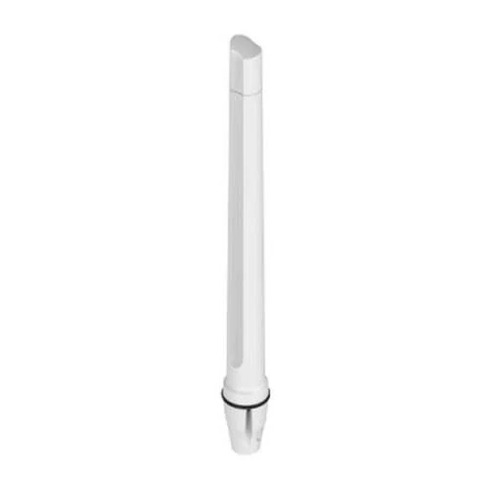

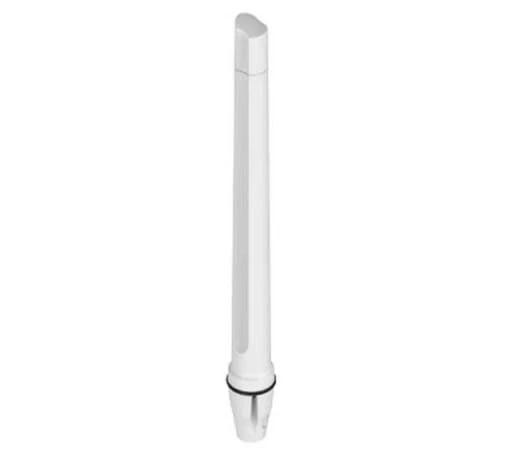

Poynting OMNI-414 Omni-Directional, 4×4 MIMO Marine & Coastal 5G/LTE Antenna; 617 – 3800 MHz, 4dBi, 2m SMA/m

The Poynting OMNI-414 Omni-Directional, 4×4 MIMO Marine & Coastal 5G/LTE Antenna; 617 – 3800 MHz, 4dBi, 2m SMA/m is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellently balanced gain across all frequencies from 617 to 3800 MHz.

This antenna also offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-414 a true omnidirectional 4×4 MIMO antenna, suitable for marine and coastal applications. The antenna also comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea. The radome is also fully saltwater protected so that it can be used in highly corrosive environments, thanks to the UV-stable ASA radome material.

The OMNI-414 guarantees signal reception almost everywhere and is usable in all parts of the world. The ultra-wideband performance makes the antenna future-proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use.





(OMNI-414)

SKU OMNI-414
Brand Poynting
Shipping Weight 0.8600kg
Shipping Width 0.100m
Shipping Height 0.700m
Shipping Length 0.150m
Shipping Cubic 0.010500000m3
