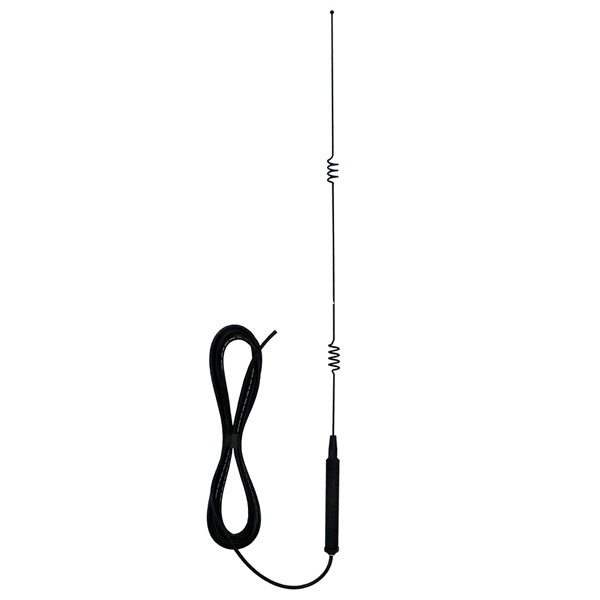

RFI CD1250 Stud Mounted Elevated Feed Antenna


Key Features


  • Fully ground independent

  • Indestructible stainless steel design

  • Black finish will not scratch or peel

  • 5m of unterminated 9006 low loss cable

  • RFI offer this antenna with a limited lifetime warranty.




  • The RFI CD1250 Elevated Feed Antenna provides a 5dB gain on the Telstra Next-G network, and has a 13mm diameter thread for mounting on any bracket or mount

  • Elevated Feed antennas provide high performance in virtually any mounting position

  • The design raises the radiating element above the vehicle roof or other obstructions to provide a strong omnidirectional pattern and high performance for vehicle gutter, fender, boot or magnetic mounting

  • This ground-independent antenna is the ideal solution for fleet/work/mine site vehicles where a lightbar or hazard lights might interfere with regular antenna performance

  • Because of the antenna's virtually universal 13mm thread, it can be secured to any existing UHF, CB, or lightbar, as well as gutter mounted, mirror mounted, and many other ways.


Specifications / Frequency


Australian Network Compatibility
Telstra Next-G™ (850MHz)
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map.


Electrical Specifications


  • Frequency Range: 824-896MHz

  • Input Impedance: 50Ω

  • VSWR: <2:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 50Watts


Mechanical/Environmental Specifications


  • Construction: 17-7PH Stainless steel black finish

  • Cable: 5m 9006 RG58 coaxial cable

  • Connector: FME Female

  • Length: 765mm

  • Mounting: 13mm Stud Mount





  • This antenna has a 5m cable that terminates with an FME Female connector

  • The FME Female connector is the most common type of connector for mobile antennas and mates with the FME Male connector found on patch leads and phone cradles.


female FME Connector

FME Female Connector [pictured]


If you would like a shorter length of cable, or a different connector please email us so we can customise this antenna for you.


Read More



RFI wireless logo


SKU CD1250
Brand RFI
Shipping Weight 1.3000kg
Shipping Width 0.090m
Shipping Height 0.100m
Shipping Length 0.400m
Shipping Cubic 0.003600000m3
