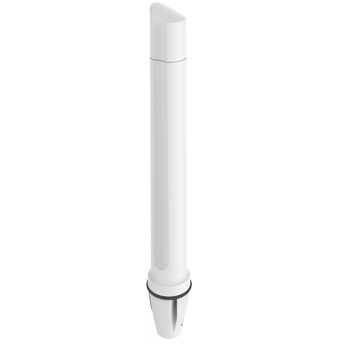

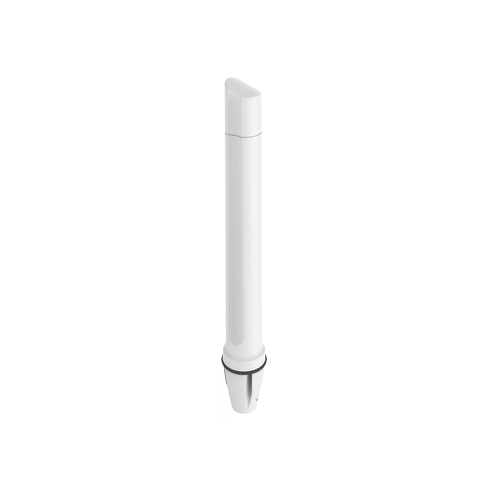

Poynting Omni-Directional, Wideband LTE/5G Antenna 9dBi (617-3800 MHz) - N Female

Key Features

• High gain omni-directional antenna

• Wideband operation future proofs the Antenna

• Includes 3.5 GHz 5G bands

• Purpose-built for marine and coastal operation

• Robust and weather resistant design with IP65 rating

Usage

• The OMNI-293 is an advanced antenna that provides excellent signal reception in all directions (omni-directional) across a broad spectrum of cellular frequencies. It is compatible with current 4G/LTE technologies and is also prepared for future 5G advancements.

• This antenna ensures reliable performance over an extensive frequency range (617 to 3800 MHz) with a peak gain of 9 dBi.

• What makes the OMNI-293 a future-ready option is its coverage of the new 617 to 698 MHz band, which is gaining significance. Additionally, it captures frequencies within the 3400 to 3800 MHz range, designated for upcoming 5G applications.

• This extensive compatibility renders the OMNI-293 a dependable choice for nearly any location globally, guaranteeing robust signal reception in both metropolitan and rural settings. Furthermore, the antenna's design promotes superior signal quality across all frequencies.

Specifications / Frequency

Network Compatibility Yes/No Gain Telstra 4GX (700MHz) 6dBi Optus 4G+ (700MHz) 6dBi Telstra Next-G™ (850MHz) 6dBi Vodafone 4G+ (850MHz) 6dBi Telstra/Optus/Voda 4G (1800MHz) 9dBi Optus 4G TDD (2300MHz) 9dBi Telstra 4GX (2600MHz) 9dBi Telstra 5G (3500MHz) 8dBi Optus 5G (3500MHz) 8dBi Vodafone 5G (3500MHz) 8dBi

Electrical Specifications

Frequency Range: 617-960MHz / 1427-1517MHz / 1710-2700MHz / 3400-3800MHz

Input Impedance: 50Ω

VSWR: <2.5:1 (over 90%)

Polarisation: Linear Vertical

Radiation: Omnidirectional

Maximum Power: 10Watt

Mechanical/Environmental

Product Dimensions: 635 mm x Ø71 mm (excl. BRKT-40)

Packaged Dimensions: 700 mm x 95 mm x 90 mm

Radome Material: ABS (Hallogen Free)

Radome Colour: Pantone - Cool Gray (1C) RAL - 7047

Mounting Type: Wall and pole mount

Wind Survival: <160km/h

Tempreature Range: -40°C to +80°C

Water Ingress Rating: IP68

Operating Relative Humidity: Up to 98%

Complies with CE and RoHS standards
