QuMax XR LTE

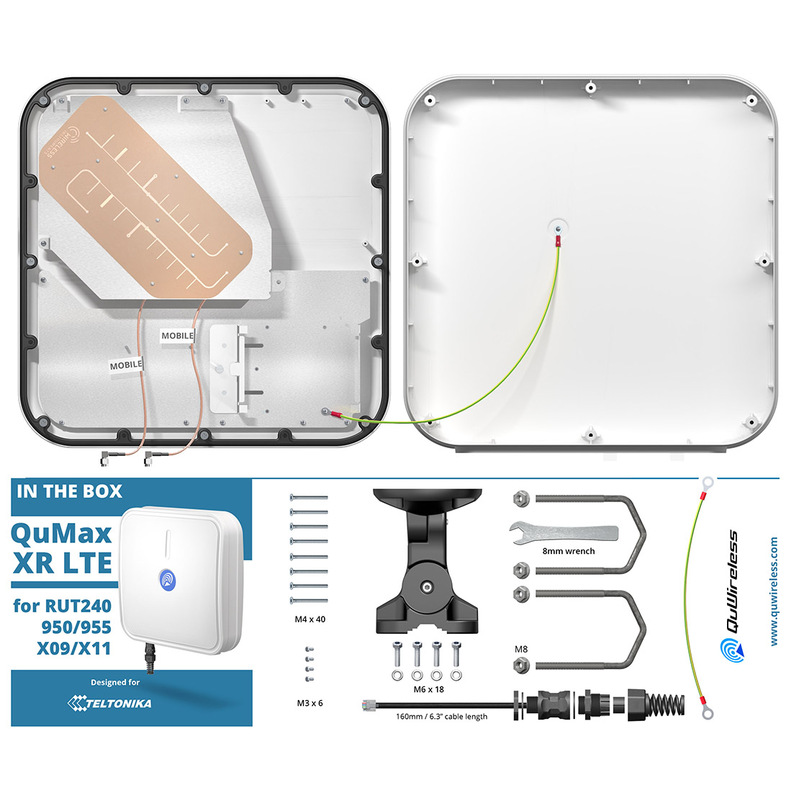

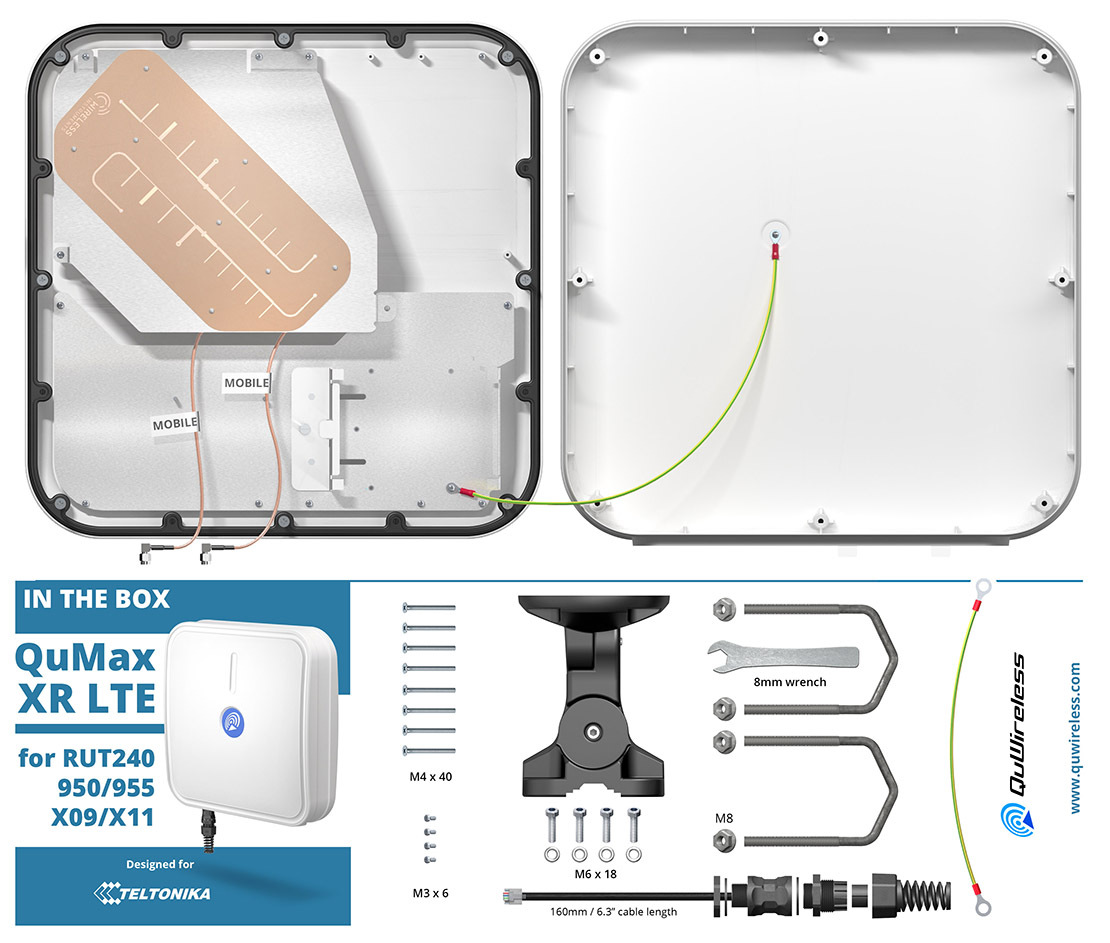

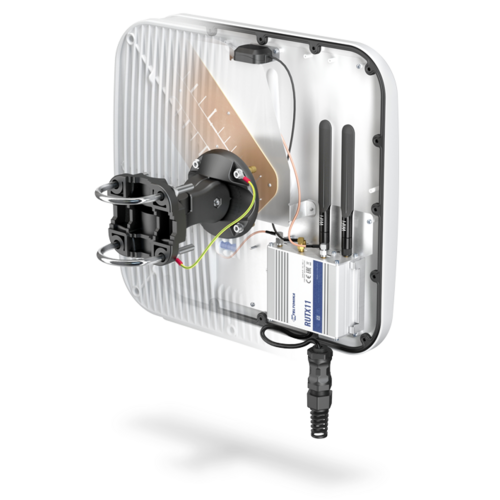

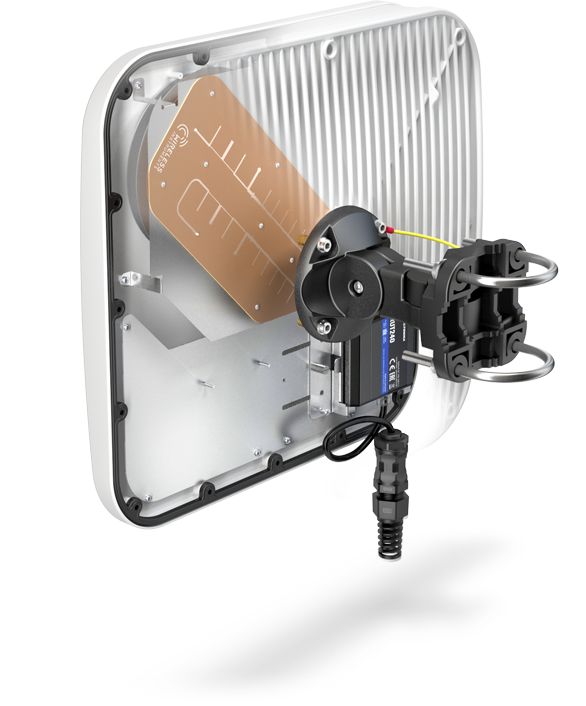

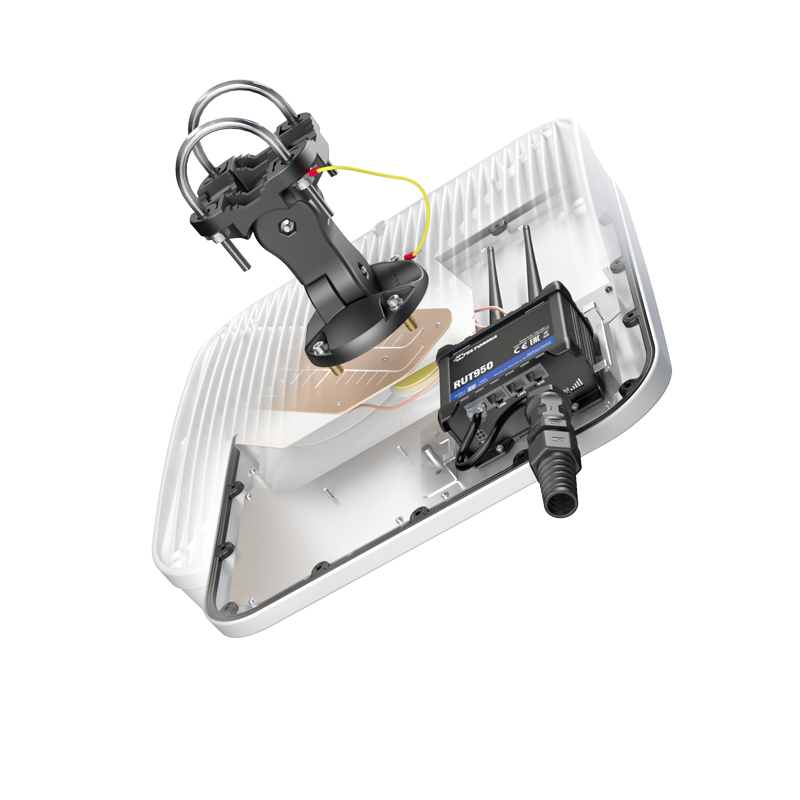

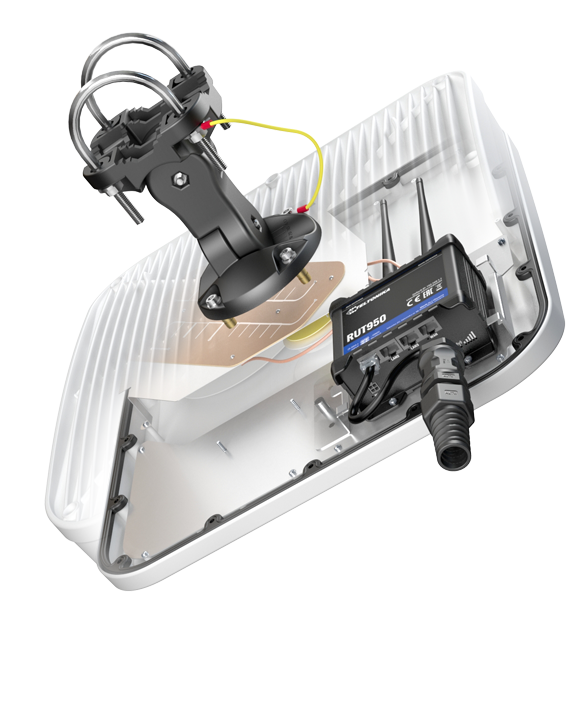

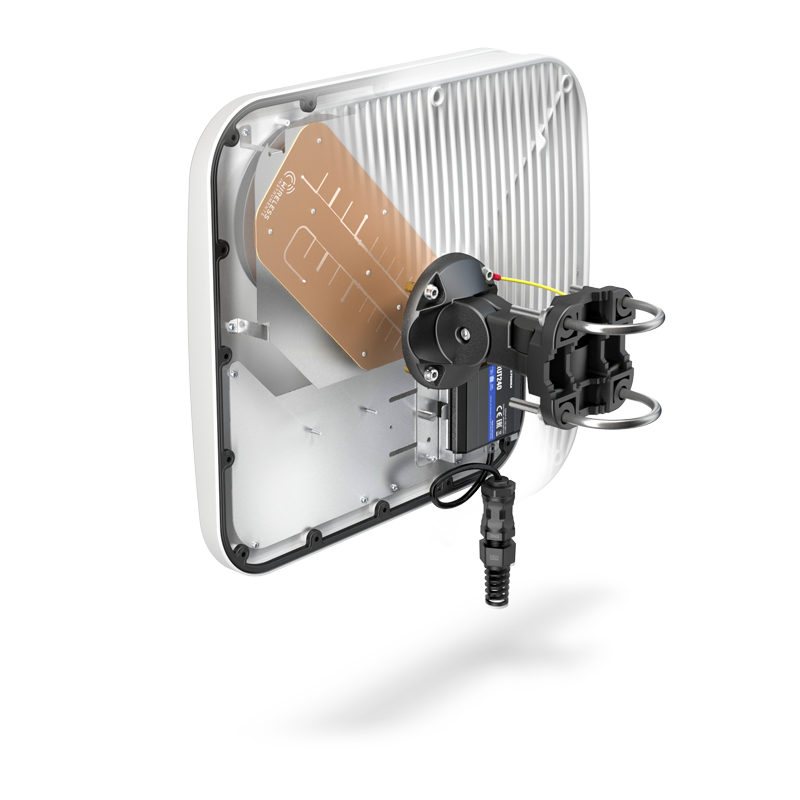

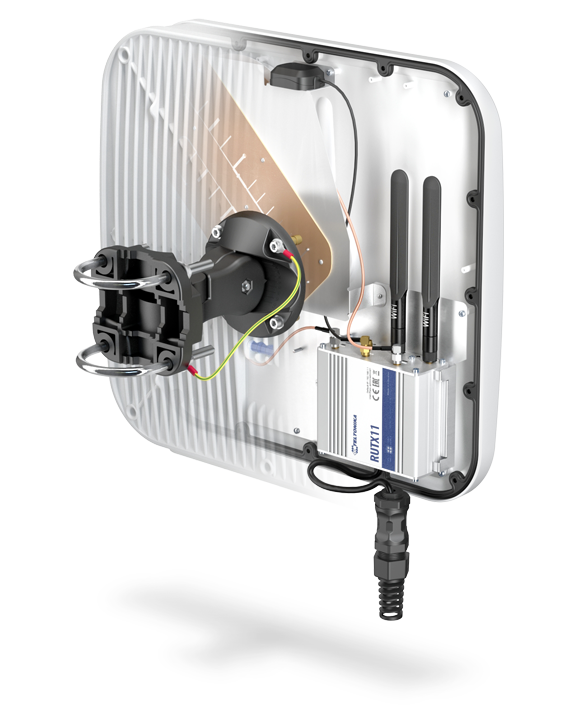

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT240/950/955/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7 dBi
Front-to-Back >10 dB
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization Dual polarized X-Pol
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45
Ingress protection IP67
Dimensions 392 x 392 x 99 mm
15.43 x 15.43 x 3.90 inch
Weight 3.7 kg
8.16 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F



(XRLTE)

SKU XRLTE
Brand QuMax
Shipping Weight 0.5000kg
Shipping Width 0.400m
Shipping Height 0.110m
Shipping Length 0.400m
Shipping Cubic 0.017600000m3
