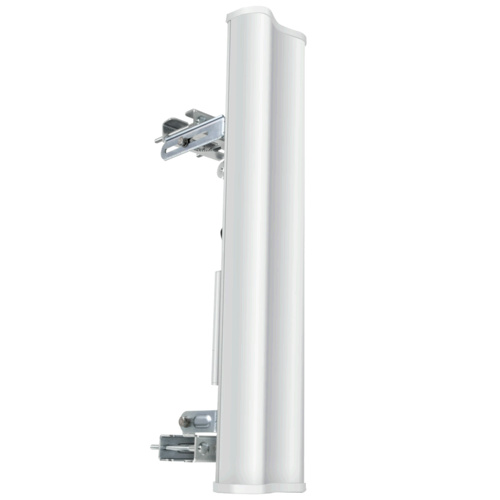

Ubiquiti airMAX 2.4GHz (M2) 15dBi Sector Antenna

Key Features

• Integrated Rocket mount

• Ideal for sectored base station deployment

• 2x2 MIMO 2.4GHz

• Designed specifically for airMAX Rocket M2 and UniFi Outdoor+.

Usage

• AirMAX Sector is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna that was designed to seamlessly integrate with Rocket M2 radios

• Pair a Rocket M2 radio with an airMAX Sector reach to create a high powered 2.4GHz WiFi or PtMP base station, covering a 120 degree sector

• 120 degree sectors are ideal for when deploying a conventional 2x or 3x sector airMAX node

• Dividing your base station into 3 sectors can theoretically produce up to a 300% increase in capacity due to frequency-reuse. Higher capacity can be achieved by further subdivision into 4-6 sectors using even higher gain antennas

• A common use of this antenna in a WiFi deployment is to provide a semi-directional base station where WiFi is required primarily in the boresight direction, but also permitting clients either side (and some distance behind) access to the network.

UniFi Outdoor+ High Density Access Point

• This sector antenna can be coupled with the UAP Outdoor+ in a 3-gang base station to provide a high performance, high capacity WiFi network

• The Outdoor+ access point contains an active heterodyne filter to isolate the units channel from others ganged on the same mast, meaning 3 AP's can be positioned on channels 1, 6, and 11 with almost no co-channel interference.

airMAX TDMA multi-user access scheme permitting up to 100 clients per airMAX antenna.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
AirMAX M2 2x2 MIMO (2400MHz)		15dBi

Electrical Specifications

• Frequency Range: 2300-2700MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Dual Linear (V & H)

• Cross-Pol Isolation: >28dB H-POL

• Beamwidth: 123° (6dB)

• V-POL Beamwidth: 118° (6dB)

• Electrical Beamwidth: 9°

• Electrical Downtilt: 4°

• Radiation: Sector

Mechanical/Environmental Specifications

• Cable: 2x RP-SMA jumper cables included

• Connector: 2x RP-SMA Female

• Wind Rating: 200km/hr

• Weight: 4kg

• Mounting: Pole mounting bracket included

• Dimensions: 700 x 145 x 93mm (L x W x H)

• EN 302 326 DN2
