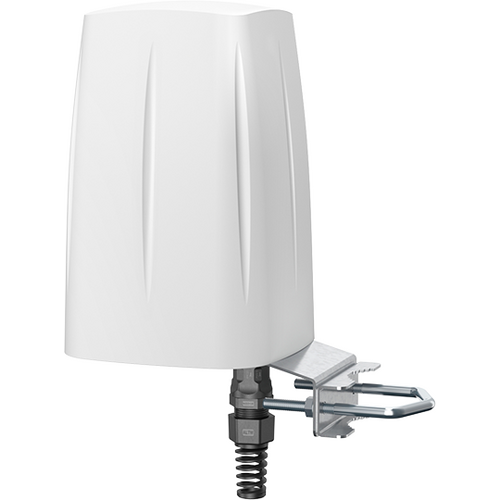

QuSpot for Teltonika RUTM52 - Integrated LTE & 5G Omni Antenna + Wi-Fi omni antenna + GPS

Outdoor Antenna Works in any Weather Conditions - IP68
Antenna Perfectly Matched with the Router
Passive PoE Support
Made in Europe

QuSpot for RUTM52 is an outdoor antenna engineered to deliver dependable wireless connectivity across diverse environments.

This product serves as a comprehensive solution, combining high-gain omnidirectional 5G and Wi-Fi antennas with the RUTM52 within a single IP68 enclosure.

This integration facilitates the deployment of innovative outdoor RUTM52 solutions. QuSpot for RUTM52 is particularly well-suited for outdoor wireless connectivity in dynamic applications, including transportation, yachting, boating, and camping, as well as in urban areas characterized by high signal density.

RUTX50 sold separately, just add to your cart.

LTE ANTENNA SPECIFICATION
Frequency	0.58 - 2.0 GHz 2.0 - 3.5 GHz 3.5 - 5.0 GHz 5.0 - 6.35 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256
Gain	0.58 - 2.0 GHz : 2 dBi 2.0 - 3.5 GHz : 3.2 dBi 3.5 - 5.0 GHz : 3.1 dBi 5.0 - 6.35 GHz : 3.8 dBi
VSWR	<2.50, max <3.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

WI-FI ANTENNA SPECIFICATION
Frequency	2.40 - 2.50 GHz 5.0 - 7.125 GHz
Gain	2.40 - 2.50 GHz : 2 dBi 5.0 - 7.125 GHz : 5 dBi
VSWR	<2.50
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45
Ingress protection	IP68
Dimensions	160 x 160 x 240 mm
Weight	1.5 kg
Operating temperature	From -40°C to 75°C

Specification Sheet

(AM52S)

SKU	AM52S
Model #	AX11M
Shipping Weight	5.0000kg
Shipping Width	0.400m
Shipping Height	0.180m
Shipping Length	0.400m
Shipping Cubic	0.028800000m3
