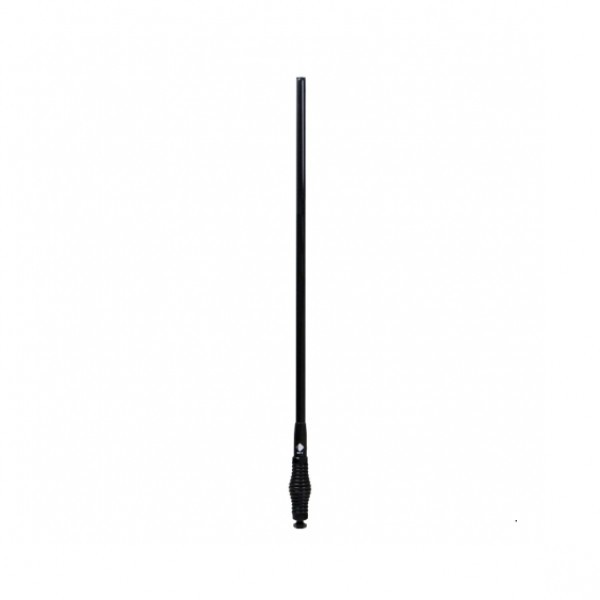

RFI CDR8195 6.5dBi Bullbar Mounted 3G+4G+4GX Antenna

Key Features

The evolution continues with the release of the CDR8100 Series 4G LTE cellular mobile antenna.

• Multiband 700-3800MHz

• Patented PCB based collinear design offering the ultimate in pattern and gain stability

• Ideal for all new 4G networks with true multi-band coverage

• Supplied with 5m low loss coaxial cable, with male SMA connector.

Additional Information

• Like the CDQ8100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements

• These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth

• The result is a unique antenna, housed in the one unit, able to operate across all mobile phone networks globally

• The CDR8194 provides an impressive 6.5dBi gain on lower bands such as 3G, Next-G, 4GX and 5G, as well as a modest 4.5dBi gain on regular 4G bands.

Usage

•  This antenna does not provide MIMO - if you require the best possible Internet performance you should use two antennas, separated by around 300mm

• The antenna sports the "Q-Fit™ removable whip system for fast and simple removal when entering low height areas, car washes or for antenna security." - read more on the RFI website

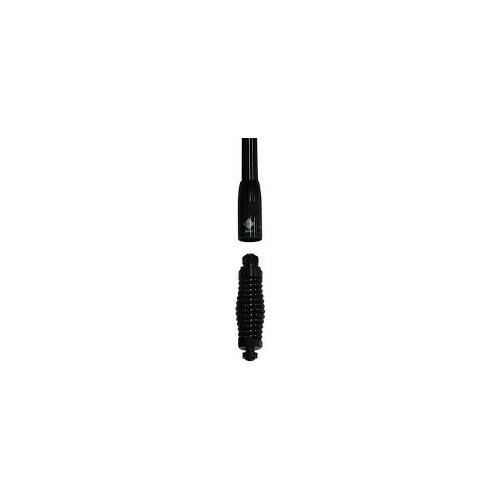

• The CDR8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly

• When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas

• With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD8100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		6.5dBi
Optus 4G+ (700MHz)		6.5dBi
Telstra Next-G™ (850MHz)		6.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		6.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		6.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		6.5dBi
Telstra/Optus/Voda 4G (1800MHz)		4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)		4.5dBi
Optus 4G TDD (2300MHz)		5.5dBi
Telstra 4GX (2600MHz)		5.5dBi

Electrical Specifications

• Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Vertical Beamwidth: 25° / 30° / 20°

• Maximum Power: 10Watts.

Mechanical/Environmental Specifications

• Construction: Fibreglass radome, PCB Radiator, black electro-polished stainless steel spring

• Cable: 5m Cellfoil 9006 low loss coaxial

• Connector: SMA Male

• Length: 930mm

• Weight: 0.75kg.

Connection

• This antenna has a 5m cable that terminates with an FME Female connector

• The FME Female connector is the most common type of connector for mobile antennas and mates with the FME Male connector found on patch leads and phone cradles.

Please contact us If you would like a shorter length of cable, or a different connector and we will customise this antenna for you.
