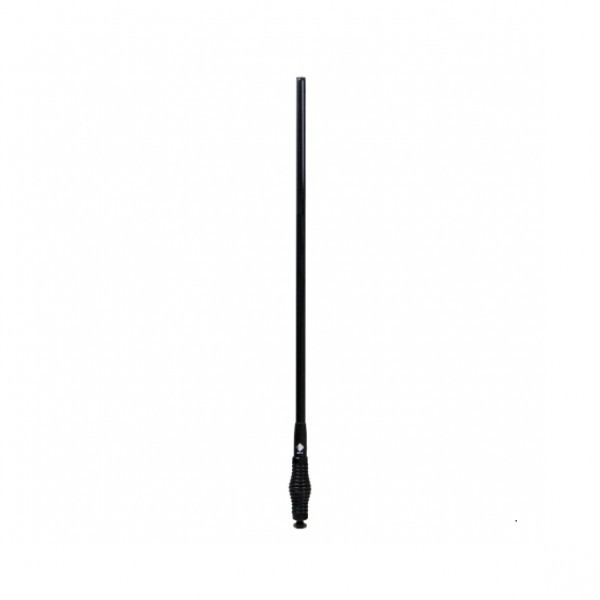

RFI 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black


Key Features

The evolution continues with the release of the CDR7100 Series 4G LTE cellular mobile antenna.


  • Multiband 700-3800MHz

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability

  • Ideal for all new 5G lte networks with true multi-band coverage

  • Supplied with 5m low loss coaxial cable, with female FME connector.


Additional Information


  • Like the CDQ7100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements

  • These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth

  • The result is a unique antenna, housed in the one unit, able to operate across all mobile phone networks global

  • - High gain across all bands making it suiting fringe and rural applications.

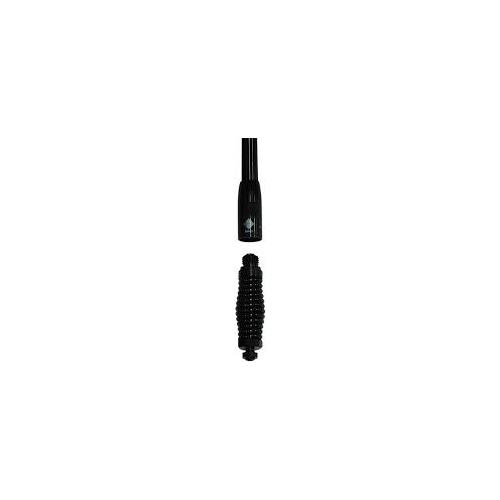

  • The antenna sports the "Q-Fit™ removable whip system for fast and simple removal when entering low height areas, car washes or for antenna security." - read more on the RFI website

  • The CDR8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly

  • When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas

  • With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD8100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.


Specifications / Frequenc


Whip Material Fibreglass
Cable And Connector 5m RG58 (9006) low loss cable terminated with SMA male connector
Frequency Range 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm diameter hole
Tuned bandwidth Full
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 695
Brand RFI


Please contact us If you would like a shorter length of cable, or a different connector and we will customise this antenna for you.
