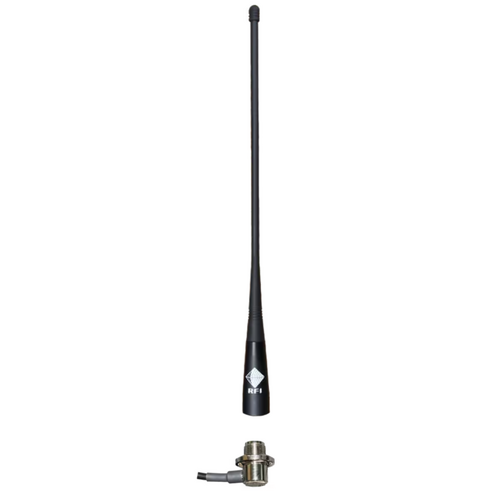

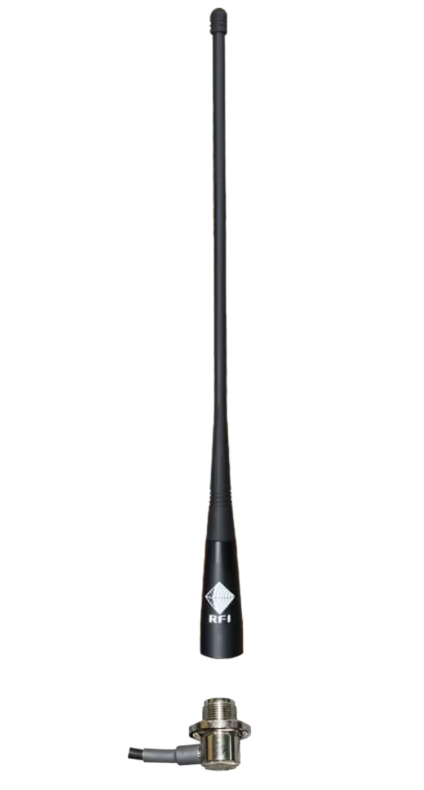

RFI VHF/UHF Dual Broad Band Mopole Antenna (148-174 / 400-470 MHz): MBC Base 5m No Connector


Key Features:

  • Np tune, dual band coverage of VHF (148-174 MHz) and UHF (400-470 MHz) frequencies
  • Rugged construction for long lasting, reliable emergency response applications
  • MBC (SO-239) compatible interface for easy installation or upgrade
  • Excellent VSWR performance across frequencies

RFI’s new dual band VHF/UHF antenna supports multi-band radio technology to provide interoperability among emergency management and response personnel, regardless of the frequency band used. It provides outstanding coverage of VHF and UHF bands frequencies in an easy-to-install, no tune design. Its PCB based matching circuit is housed in a rugged, impact-resistant housing for maximum durability and its base is designed to interface with standard SO-239 (MBC) mobile base mounts to facilitate existing installation upgrades on public safety vehicles.

Specifications:

Mounting MBC (PL259) base (included)
Frequency MHz 148-174 / 400-470
Tuned Bandwidth Full
VSWR <2.0:1
Nominal Gain [dBi] 1 / 4.5
Power [W] 40 / 25
Band 148-174MHz & 400-470MHz
Whip Length mm 496
Whip Material Flexible tapered stainless steel whip
Antenna Type Ground Dependent, MBC Base Mount, Vehicle
Antenna Application Vehicle Antenna
Antenna Configuration SISO



Read More

(CD30-148470-53)

SKU CD30-148470-53
Brand RFI
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.380m
Shipping Cubic 0.003800000m3
