Teltonika PR1ICC60 - Integrated LTE Omni Antenna + Wi-Fi omni antenna + GPS

Place to install Teltonika RUT900 Series (All-in-one)

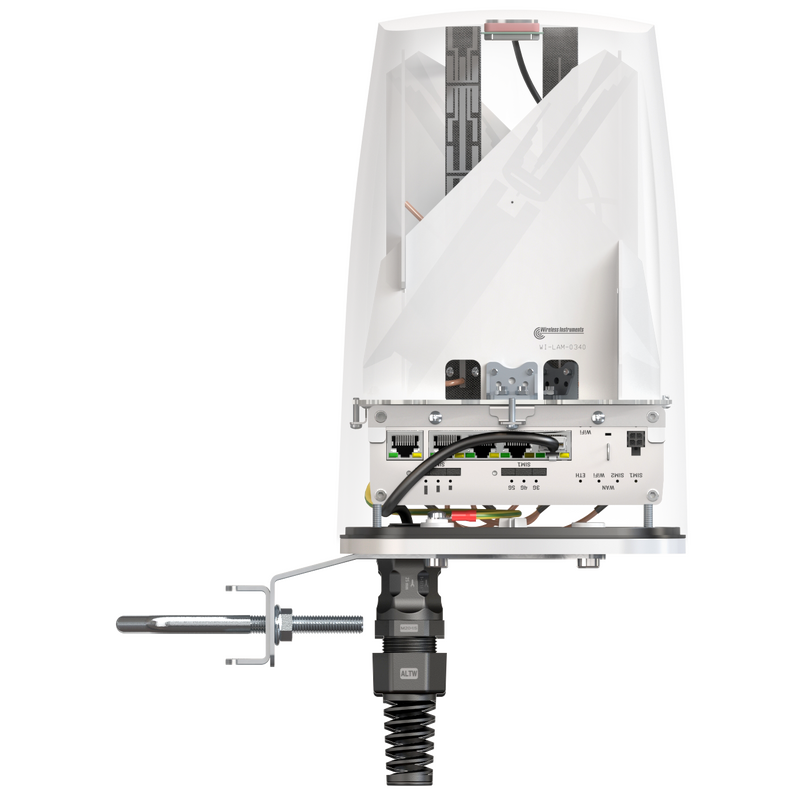

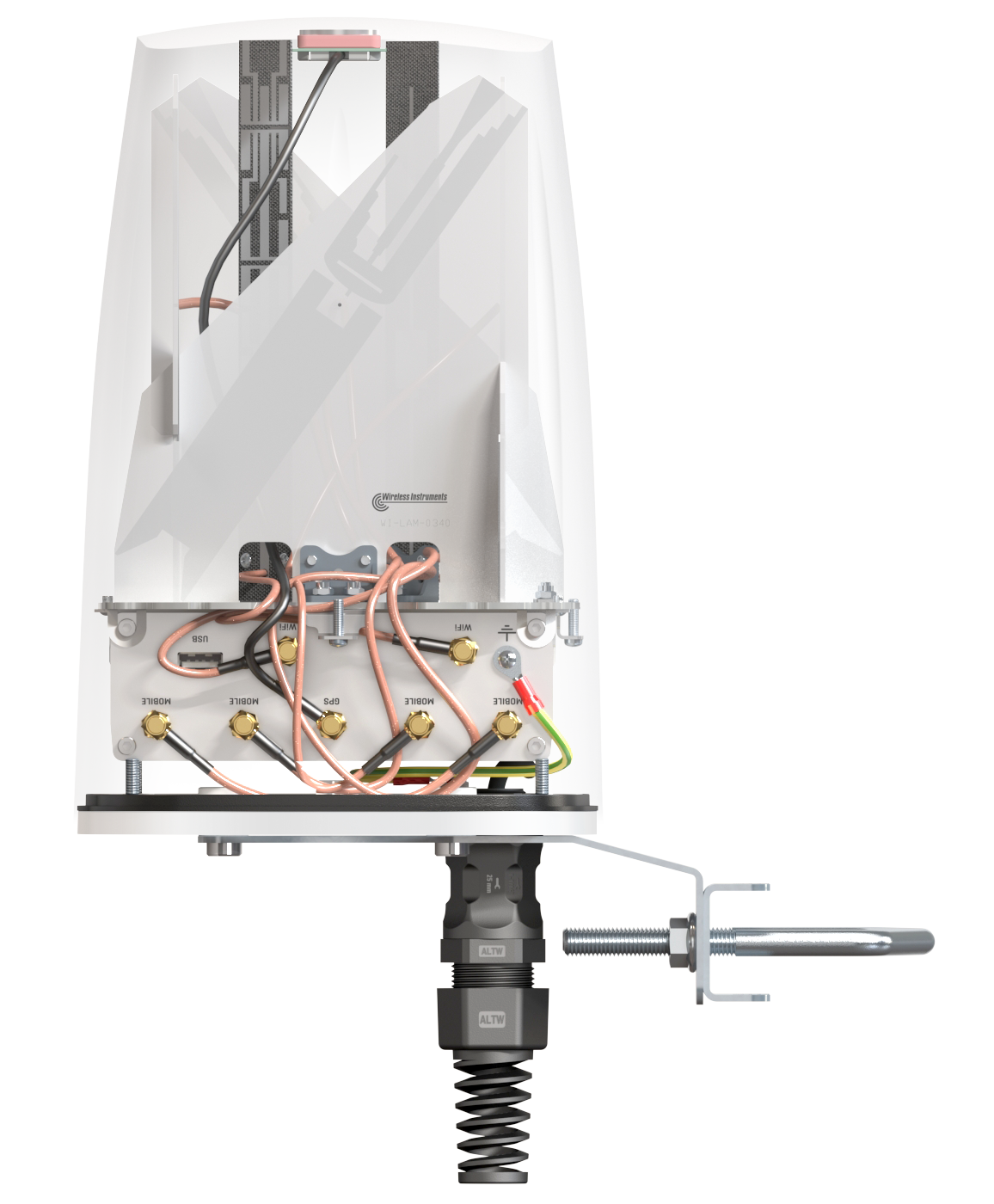

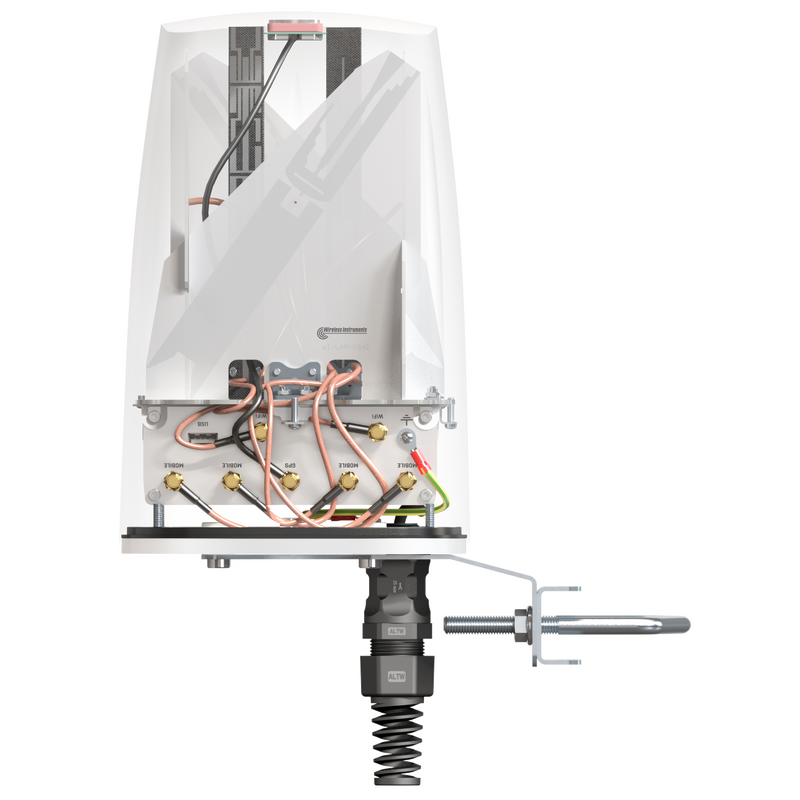

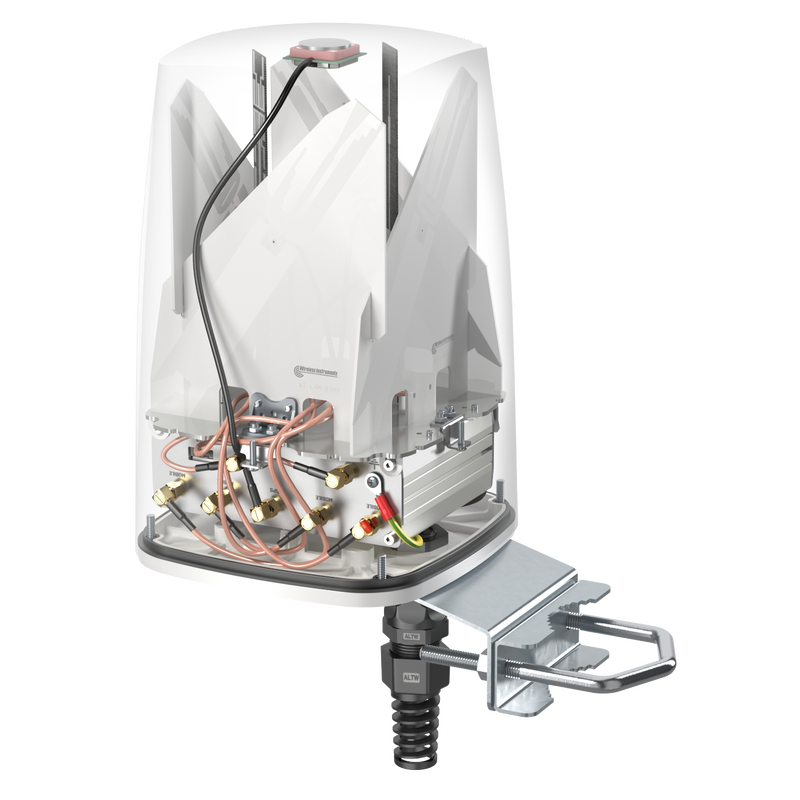

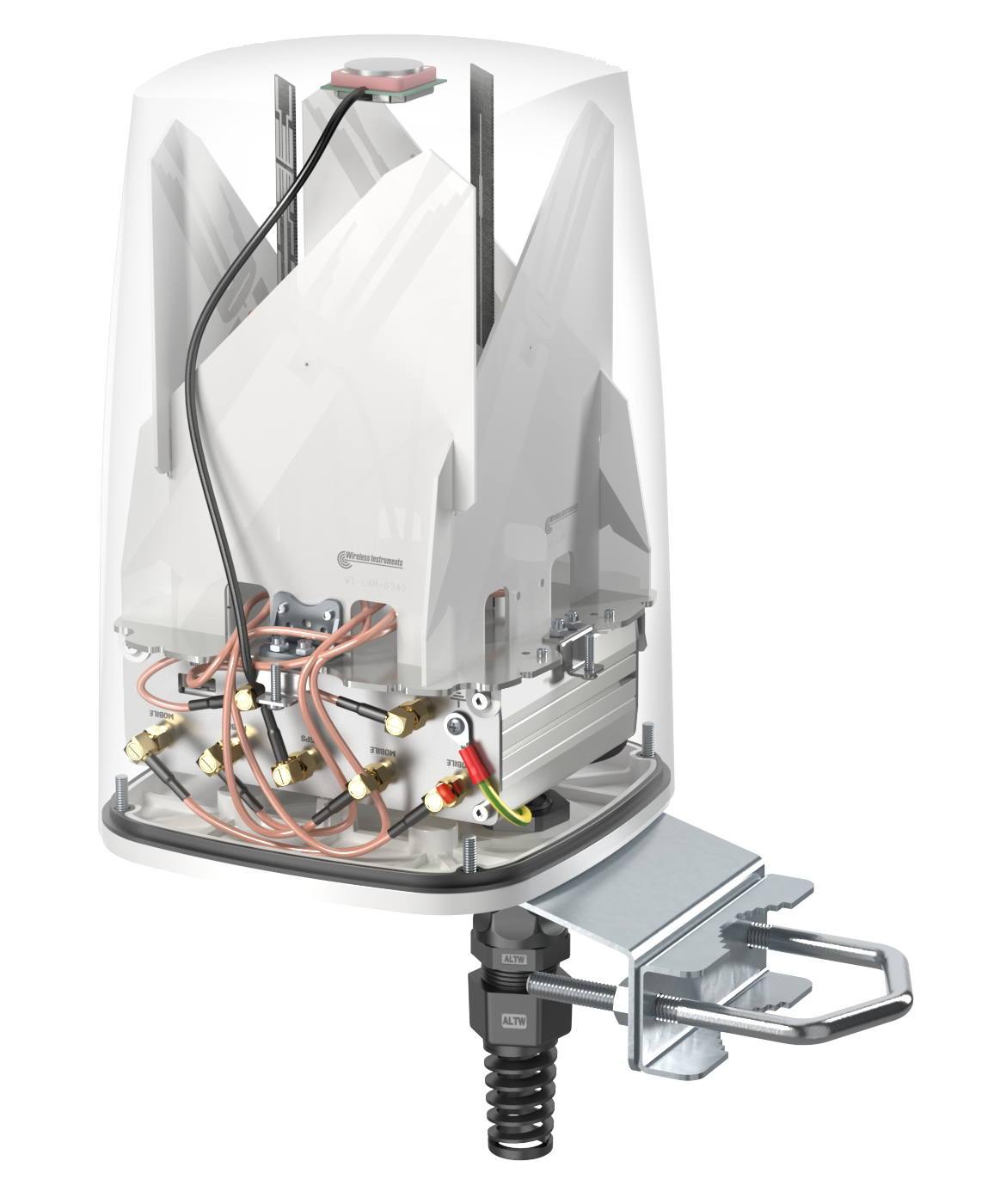

The PR1ICC60 for the RUT900 series (RUT951/RUT901/RUT956) is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments.
This product is an all-in-one solution that integrates a highgain, omnidirectional 5G and Wi-Fi antennas with RUT951/RUT901/RUT956 into a single IP67 enclosure.
Such integration allows implementation of new, outdoor RUT951/RUT901/RUT956 solutions.
The PR1ICC60 for RUT951/RUT901/RUT956 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

The RUT951/RUT901/RUT956 sold separately, just add to your cart.

LTE ANTENNA

  • Frequency range: 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
  • Polarisation: Vertical
  • Radiation pattern type: Omnidirectional
  • Gain: Max 4.5 dBi
  • V.S.W.R: < 2.50
  • Impedance: 50 Ω
  • Connector type and count: 2x SMA male

GNSS ANTENNA

  • Frequency range: 1560 ~ 1610 MHz
  • Polarisation: RHCP
  • Gain: 28 dBi
  • V.S.W.R: < 2.00
  • Impedance: 50 Ω
  • Connector type and count: 1x SMA male
  • Current consumption: 2.5 - 6.5 mA
  • Supply voltage: 2.5 - 6.5 VDC

WI-FI ANTENNA

  • Frequency range: 2400 ~ 2500, 4700 ~ 6000 MHz
  • Polarisation: Vertical
  • Radiation pattern type: Omnidirectional
  • Gain: Max 7.5 dBi
  • V.S.W.R: < 2.00
  • Impedance: 50 Ω
  • Connector type and count: 2x RP-SMA male

MECHANICAL/ENVIRONMENTAL

  • Cable: 4x RG316, 1x RG174
  • Operating temperature: -40 °C to 75 °C
  • Mounting method: Wall, ceiling, mast
  • IP rating: IP67
  • Weight: 1500 g
  • RoHS compliant:

Specification Sheet

(PR1ICC60)

SKU PR1ICC60
Model # AX11M
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.180m
Shipping Length 0.400m
Shipping Cubic 0.028800000m3
