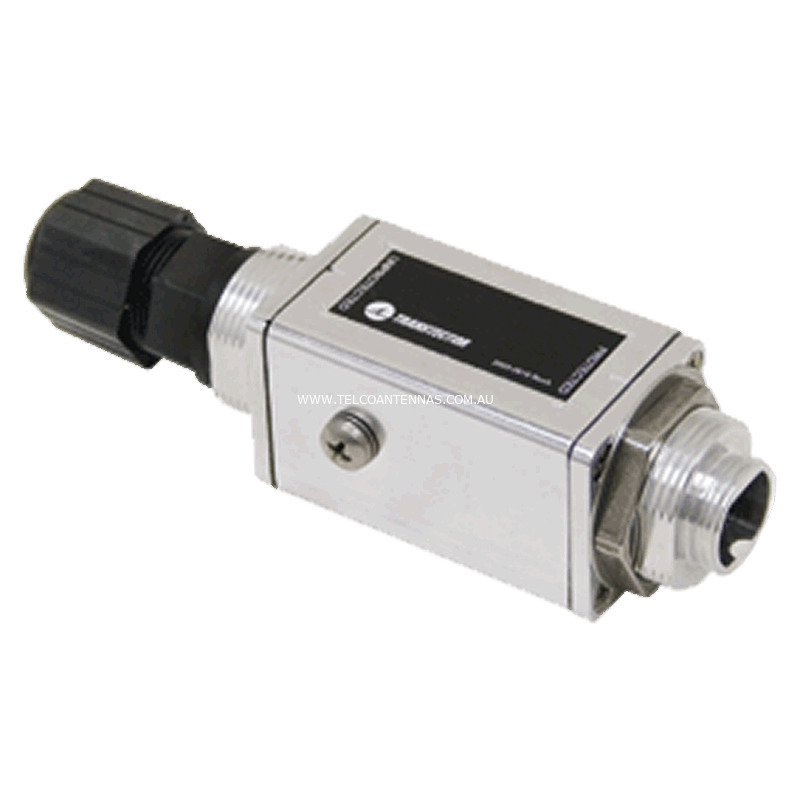

Transtector Thunderbolt Data Protector GbE - Outdoor Surge Protector


Key Features


  • Gigabit PoE ethernet RJ-45 Cat5

  • Inline panel mount surge protector

  • Compact

  • High performance

  • Non-degrading technology.




  • Transtector's Thunderbolt Series is engineered to protect all manner of outdoor Ethernet/Cat5e applications including 10/100/1000Base-T(X) (including PoE) by mitigating the effects of common induced lightning transients

  • The aluminium housing offers weather-tight mechanical mounting through bulk head apertures

  • This device incorporates the advantage of coordinated high-power gas discharge tube (GDT) and low capacitance transient blocking technology in a single package

  • Each protection module type is clearly marked on the face of adjacent to the ground screw to show the correct orientation of the connectors to the "unprotected" outside world and "protected" equipment as well as indicate the compatible Ethernet protocols for the module

  • Because many POE and GigE protocols use the same cat5e cable and connectors, care must be taken by the installer and operator to be sure the cable installation and operating conditions are supported by the Thunderbolt protector

  • The Thunderbolt series provides a #10 ground screw as well as a molded RJ-45 connector shroud with cable gland and mounting hardware

  • All protection configurations offer straight through pin-outs from the input to output connectors

  • In the unlikely event of surge protection self sacrifice, the individual protection modules will reliably fail short to disrupt communication.


Specifications / Frequency


  • Compatible applications: 1000Base-T(X) PoE

  • Data rate: 1000Mb/s

  • Nominal operating voltage: 48Vdc

  • Maximum continuous operating voltage: 60Vdc

  • Connector style: RJ45 Cat5e UTP

  • Maximum capacitance per pin: 3pF

  • Nominal GDT spark over voltage: 150V ± 20%

  • Peak surge suppression level per pin: 5000A 8/20µs (10 operations)

  • Operating/storage temperature: -40° C to +75° C

  • Relative humidity: 99% (non-condensing)

  • Dimensions: 3.6 x 3.6 x 10cm Weight: 0.1kg
