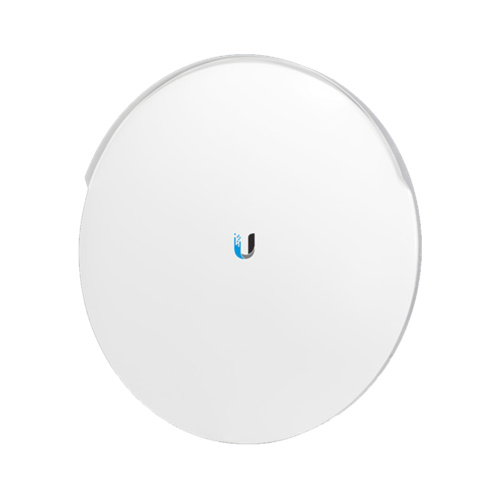

Ubiquiti airMAX RocketDish AC - 31dBi

Key Features

• Integrated mount for Rocket

• 2x2 MIMO 5.8GHz

• Designed specifically for airMAX Rocket M5.

Usage

• The RocketDish RD-5G31-AC is a 2X2 MIMO dish antenna designed to seamlessly integrate with RocketM radios (RocketM sold separately)

• Pair the RocketM’s radio with the RocketDish antenna’s reach to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul

• We regularly deploy RocketDish M5s as the high bandwidth backbone between two sites, typically out to 15km (rLOS). In shorter range communications smaller form-factor equipment can be deployed, but this can leave the link susceptible to interference and reduced throughput due to link adaptation

• Another concern is channel pollution (observed as a rise in noisefloor at other APs/stations), particularly when the transmitter is tower or rooftop mounted

• While Ubiquiti spec this antenna at 31dBi, in real world terms 0.6m dishes have around 27-28dBi gain. If your link requires ~30dBi gain antennas, please check out our 0.9m antennas:

  • Ubiquiti RocketDish 34

  • Telco XFIRE 31dBi

Here is one example of how the RocketDish can be deployed.

• The Ubiquiti Research and Development team engineered the RocketDish RD-5G31-AC with high isolation and Front-to-Back (F/B) ratio - the main benefit is improved Signal-to-Noise Ratio (S/N or SNR).

• The improved F/B ratio and lower sidelobes reduce the interference from other transmitters in the area – potentially on the same tower

• The improved S/N ratio allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This in turn increases the number of bits per second for a fixed bandwidth, which is also known as the data rate.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
AirMAX M5 2x2 MIMO (5800MHz)		31dBi

Electrical Specifications

• Frequency Range: 5450-5850MHz

• Input Impedance: 50Ω

• VSWR: <1.4:1

• Polarisation: Dual Linear V & H

• Cross Pol Isolation: >35dB F/B

• Ratio: >34dB

• Horizontal Beamwidth: 5°

• Vertical Beamwidth: 5°

• Radiation: Highly Directional

Mechanical/Environmental Specifications

• Cable: 2x RP-SMA jumper cables included

• Connector: 2x RP-SMA Female

• Wind Rating: 192km/hr

• Weight: 9.8kg

• Mounting: Pole mounting bracket included

• Dimensions: 648mm (OD) EN 302 326 DN2
