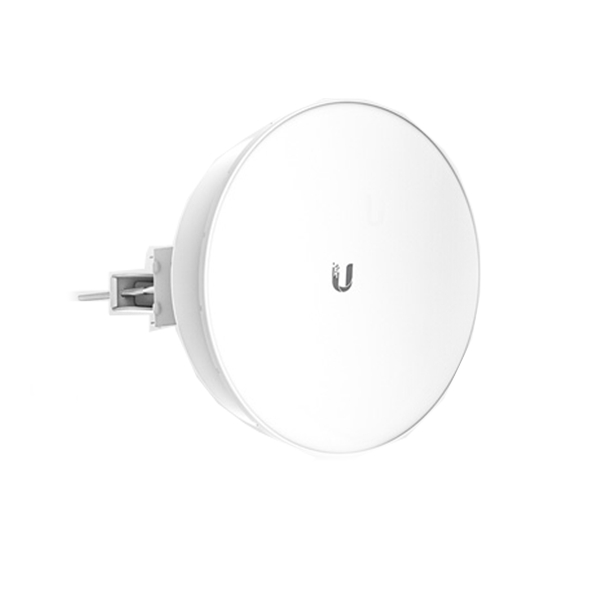

Ubiquiti airMAX PowerBeam 5AC ISO 400mm



Key Features

  • Connect remote locations on one network

  • Share Internet connection between buildings, remote sites, etc.

  • Indistinguishable from Ethernet cable

  • 200mW output power, 2x2 MIMO operation

  • Gigabit Ethernet interface

  • 25dBi antenna gain

  • Up to 40MHz channel width in PtMP, 80MHz channel with in PtP

  • Includes 24VDC POE injector and Australian 240V AC adaptor.



New Model



  • Ubiquiti Networks launches the latest generation of airMAX® CPE(Customer Premises Equipment), the PowerBeam® 5AC Gen 2, with dedicated Wi-Fi management.

  • The PowerBeam 5AC Gen 2 directs RF energy in a tighter beam-width. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

  • The PBE-5AC-ISO-Gen2 offers a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest elements.



High Speed Network Sharing

  • The Ubiquiti PowerBeam is an ideal all-in-one solution for bridging networks or sharing broadband across a long distance (up to 25km)

  • To install, place the units at either end of the network and connect both to Ethernet cables - connect the first unit into your modem/router at location one, and the second into an Ethernet switch or WiFi access point at the second location

  • This equipment is ideal for sharing an Internet connection over long distances, perfect for farms and agricultural facilities.



ubiquiti nanobridge m5 setup instructions installation diagram



  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

  • Management of the Ubiquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.



Ready to Install

  • This unit has all networking hardware and surge protection integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment

  • For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the PowerBeam, and the other into the PoE Injector (which is plugged into AC power)

  • This allows one cable to both power the unit and also carry network traffic

  • We recommend using Cat6 Outdoor UV Shielded Cable with this unit.



Read More

(PBE-5AC-ISO-Gen2)

SKU PBE-5AC-ISO-Gen2
Brand Ubiquiti
Shipping Weight 6.0000kg
Shipping Width 0.520m
Shipping Height 0.180m
Shipping Length 0.520m
Shipping Cubic 0.048672000m3
