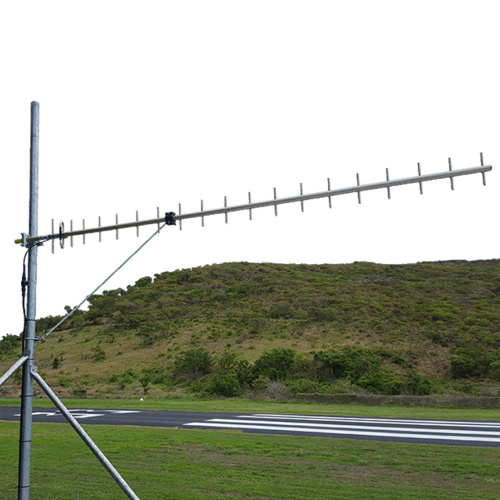

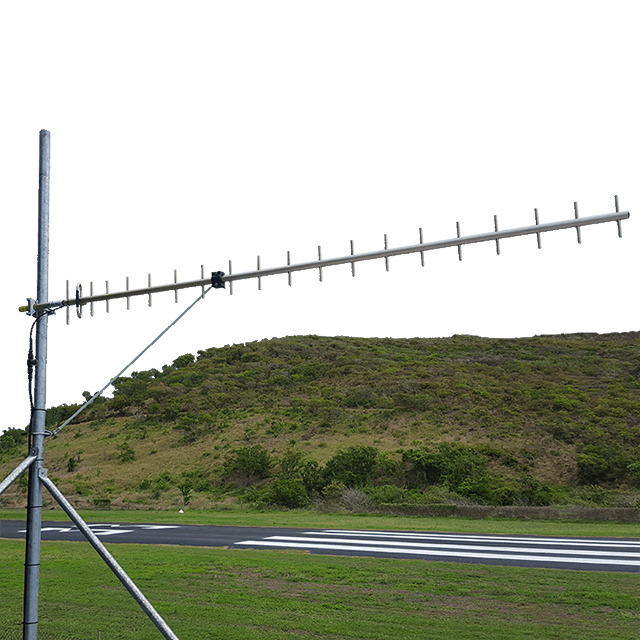

RFI 16dBi Optus 900MHz Yagi Directional Antenna



Key Features



  • Fully welded construction for maximum performance and reliability

  • Narrow beamwidth & high front to back ratios effective in reducing interference

  • Can be configured in stacks or bays for higher gain applications

  • Short low loss cable tail with N-female connector

  • Australian manufactured and warrantied.



Additional Information



  • This antenna rests at ground potential and provide excellent lightning protection and reduced precipitation static noise

  • Termination is via an 'N' female coaxial connector fitted to a short 9302 Durathene cable tail

  • Durathene is a PTFE dielectric and polyethylene jacketed cable providing superior resistance to weathering and abrasion and is less susceptible to bird attack than standard PVC sheathed cables.



Usage



  • This is the highest performing Yagi antenna available

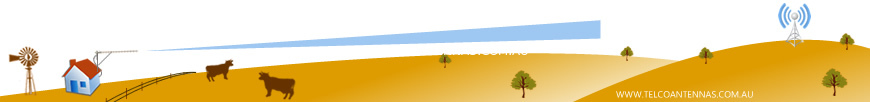

  • This antenna has been specifically designed for long range and very poor signal areas - a quality antenna designed for long term domestic, commercial and industrial applications

  • If you're having serious problems with your Optus broadband internet or mobile phone signal, the performance of this high quality fully welded aluminium antenna cannot be matched

  • The YB820 series has been used by several mining companies to provide mobile phone reception over 80km to nearest phone tower

  • Measuring in at 2.3m, this Yagi is a solid piece of hardware that is often used for:

    • very flat outback locations

    • areas with only one cell tower

    • when signal is very weak outside or even on the roof

    • when no other antenna cuts the mustard.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Optus Regional 3G (900MHz)
compatible
16dBi
Vodafone Regional 3G (900MHz)
compatible
16dBi
LPWAN (915MHz)
compatible
16dBi



Electrical Specifications



  • Frequency Range: 850-930MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Vertical Beamwidth: 27°

  • Horisontal Beamwidth: 27°

  • Front to Back Ratio: >18dB

  • Radiation: Directional

  • Maximum Power: 100Watts



Mechanical/Environmental Specifications



  • Construction: Fully welded aluminium, alodined finish

  • Cable: Short 9302 Durathene tail

  • Connector: N Female

  • Mount: Recommend RFI Bracing Harness

  • Wind rating: 189km/hr

  • Weight: 1.35kg

  • Dimensions: 2300mm (L)



Connection



  • This antenna has an N Female connector for attaching your required length of cable - please refer to the Coaxial Cables, Reels and Assessories section above.



n female connector
N Female Connector [pictured]



Important



over-size item symbol sign



  • Special Delivery Information: This product is over 2.3m long and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box

  • Please provide an address where someone will be present to sign for the package.



Read More







(YB820-82)

SKU YB820-82
Brand RFI
Shipping Weight 3.0000kg
Shipping Width 0.260m
Shipping Height 0.150m
Shipping Length 2.170m
Shipping Cubic 0.084630000m3
