RFI CDQ8199 8.5dBi Folding Antenna Kit - Marine



Key Features



  • The RFI CDQ8199 Marine is perfect for vessell heading right offshore as it provides the strongest gain out of our Omni Directional Antennas

  • Manufactured by internationally renown antenna manufacturer, RFI, the CDQ8199 is a durable antenna designed for outdoor use

  • Consistently achieves an impressive gain across all Australian mobile networks

  • White construction blends in with your other Marine Antennas

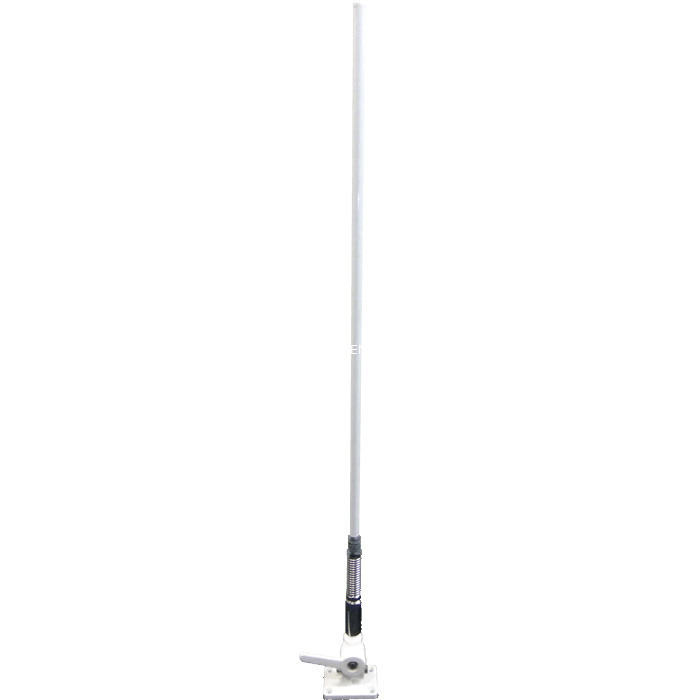

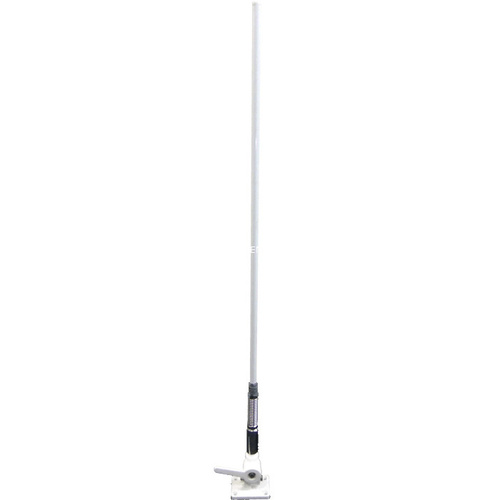

  • The kit includes a stainless steel swivelling ratchet mount and 16mm chrome adaptor, allowing easy attachment and removal of the high gain antenna



Usage

  • As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive signal

  • The CDQ8199's 8.5dBi gain means that this antenna setup is perfect for usage offshore

  • The CDQ8199 has been primarily deisgned to suit the low band 3G, 4G  frequencies that will be available offshore but the Antenna is also tuned to pick up all of the high band 4G & 5G frequencies when you are in the Harbour or Near Shore.

  • We have had customers report the antenna provides servicability out to 100km off the coast



Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
8.5dBi
Optus 4G+ (700MHz)
compatible
8.5dBi
Telstra Next-G™ (850MHz)
compatible
8.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
8.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
8.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
8.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4.5dBi
Optus 4G TDD (2300MHz)
compatible
5.5dBi
Telstra 4GX (2600MHz)
compatible
5.5dBi
All Networks 5G (3500MHz) compatible 6.5dBi




Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700 / 3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 15° / 30° / 20° / 15°

  • Maximum Power: 10Watts



Mechanical/Environmental

  • Construction: Fibreglass radome, PCB Radiator, black electro-polished stainless steel spring

  • Cable: 5m Cellfoil 9006 low loss coaxial

  • Connector: SMA Male

  • Length: 2080mm

  • Weight: 1.7kg



Connection

Connection

This antenna has a 5m cable that terminates with an SMA Male connector

The SMA Male is the most common type of connector for mobile antennas and mates with the SMA Female connector found on the Cel Fi Repeaters & our various patch leads.

If you would like a shorter length of cable, or a different connector, please email us so we can customise this antenna for you.




A heads up!



  • This product is over 1200mm long and can only be delivered by courier and not Australia Post - please leave an appropriate address for a signatory.
