Telco Collinear MuMiMo (4x4) Omnidirectional Antenna

Key Features

• Moderate 3-6dBi Gain Across all 3G, 4G & 5G Frequencies

• Weatherproof PVC Radome

• Carrier Aggregation ready

• Nominal MuMIMO (V+V+V+V)

• Perfect for Urban 5G Installations

Additional Information

• This MuMiMo Multiband Omnidirectional Antenna sports an extremely wide bandwidth design - operating on three bands 698 to 960MHz, 1710 to 2700MHz & 3400-3800MHZ covering all 3G, 4G & 5G cellular bands with high gain and high efficiency

• The Antenna has been specifically designed for High End 5G Router installation in an Urban Setting

Usage

• This Antenna offers a 3-6dBi gain across all Current Cellular Bands no matter which Carrier you are with

• The ultrawide bandwidth will allow you to take full advantage of the blistering fast speed your 4G/5G network carrier aggregation

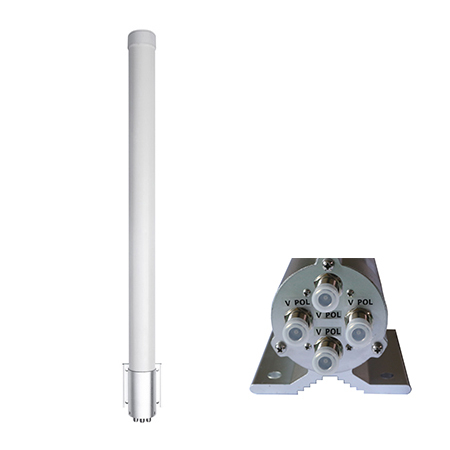

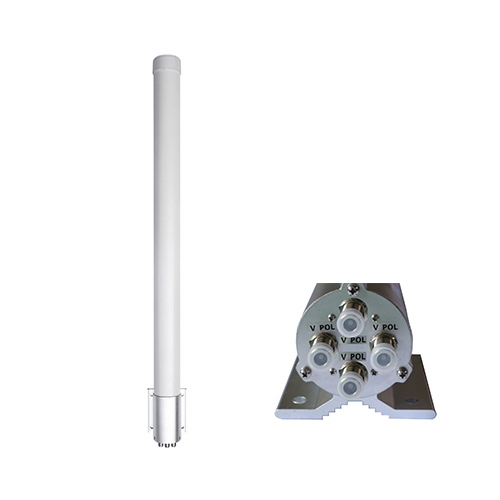

• Unlike some base station antennas which have lossy coaxial cable, this antenna has an integrated N Female connector located at its base, allowing for direct attachment of low loss feeder/riser cables

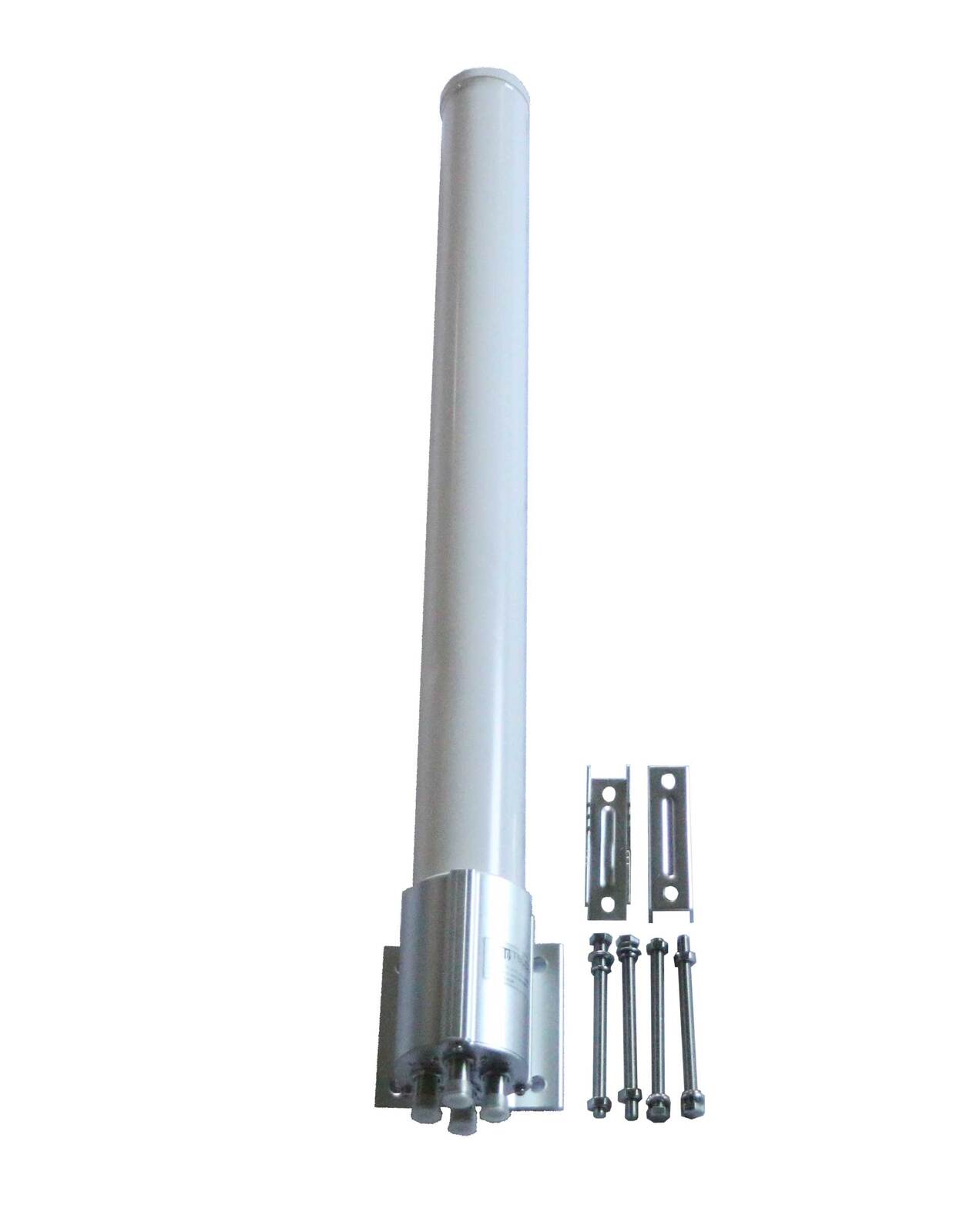

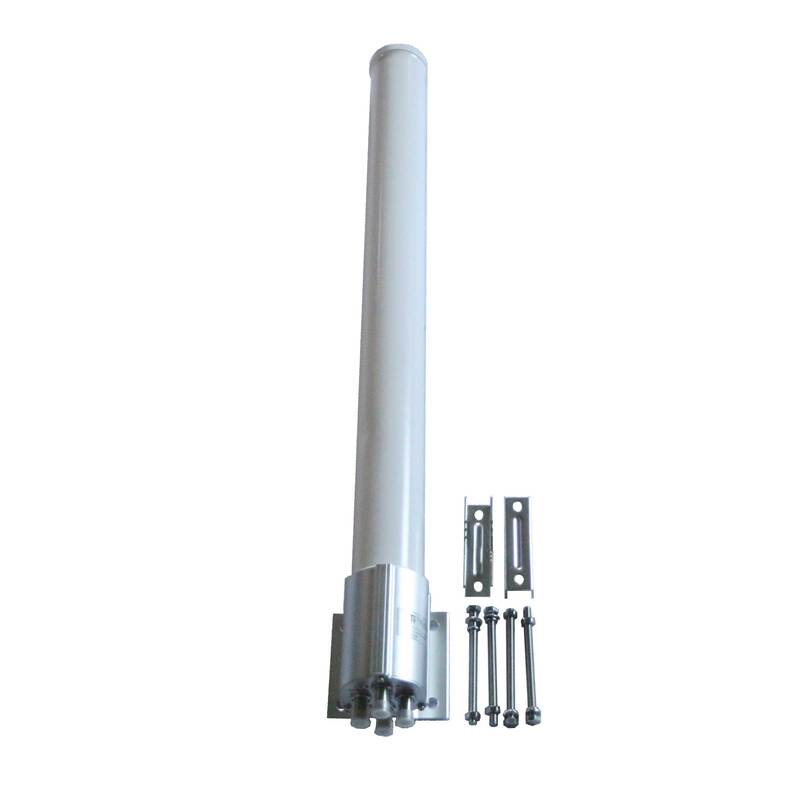

• Designed specifically for mast mounting, the antenna's heavy duty aluminium mounting tube can be mounted using the supplied parallel U-bolt clamp.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		3 dBi
Optus 4G+ (700 MHz)		3 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		3 dBi
Telstra Next-G™ (850 MHz)		3 dBi
Vodafone 4G+ (850 MHz)		3 dBi
Optus Regional 3G (900 MHz)		3 dBi
Vodafone Regional 3G (900 MHz)		3 dBi
Telstra/Optus/Voda 4G (1800 MHz)		5 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		5 dBi
LTE Bands 1, 33, 34 (2100 MHz)		5 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		5 dBi
Optus 4G TDD (2300 MHz)		5 dBi
LTE-TDD Bands 40 (2300 MHz)		5 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		5 dBi
LTE Band 41 (2500 MHz)		5 dBi
LTE Bands 7, 38 (2600 MHz)		5 dBi
Telstra 4GX Band 7 (2600 MHz)		5 dBi
All Carriers - 5G (3500MHz)		6 dBi

Electrical Specifications

• Frequency Range: 698-960 MHz / 1710-2700 MHz / 3400-3800 MHz

• Input Impedance: 50 Ω

• VSWR: ≤1.8:1 / ≤1.5:1 / ≤1.5:1

• Polarisation: V + V

• Isolation: ≥25dB

• Vertical Beamwidth: 80° (± 5°) / 70° (± 5°) / 60° (± 5°)

• Radiation: Omnidirectional

• Maximum Power: 50 Watts

Mechanical/Environmental Specifications

• Cable: Nil

• Connector: 4 x N-Type Female

• Radome Material: UPVC

• Radome Colour: White

• Temperature: -40 °C to +60 °C

• Weight: 1.5 kg

• Dimensions: 1000 x 76 mm (L x Ø)

• Mounting: 30-55 mm Ø pole
