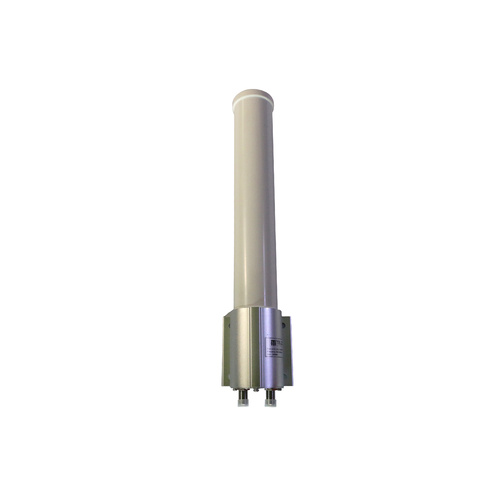

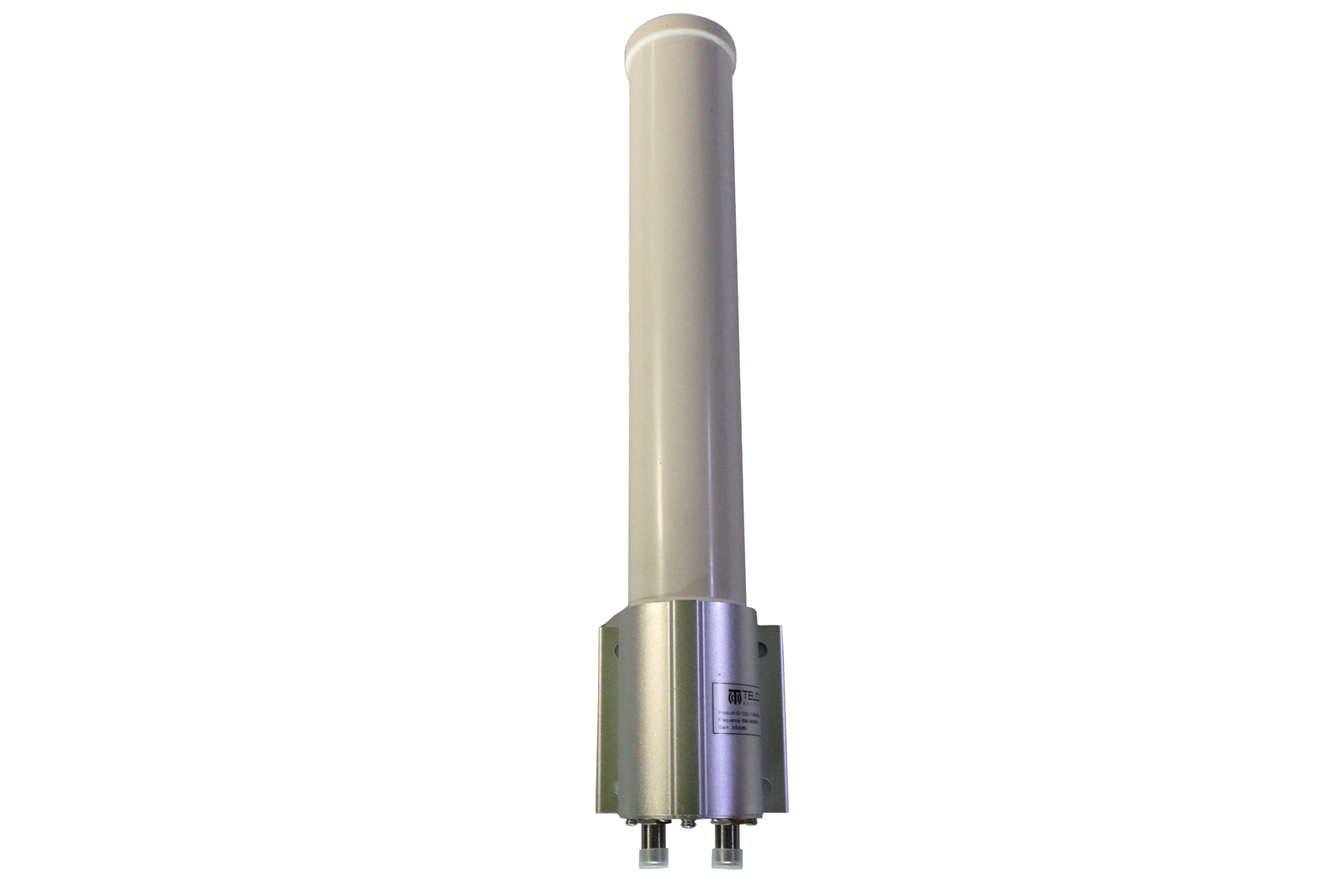

Telco Collinear MiMo Omnidirectional Antenna



Key Features



  • Moderate 3-6dBi Gain Across all 3G, 4G & 5G Frequencies

  • Weatherproof PVC Radome

  • Carrier Aggregation ready

  • Nominal MIMO (V+V)

  • Perfect for Urban Installations



Additional Information



  • This MiMo Multiband Omnidirectional Antenna sports an extremely wide bandwidth design - operating on three bands 698 to 960MHz, 1710 to 2700MHz & 3400-3800MHZ covering all 3G, 4G & 5G cellular bands with high gain and high efficiency



Usage



  • This Antenna offers a 3-6dBi gain across all Bands no matter which Carrier you are with, so it is perfect for Urban Installations

  • The ultrawide bandwidth will allow you to take full advantage of the blistering fast speed your 4G/5G network carrier aggregation

  • This is an ideal antenna for semi-mobile station setups

  • Unlike some base station antennas which have lossy coaxial cable, this antenna has an integrated N Female connector located at its base, allowing for direct attachment of low loss feeder/riser cables

  • Designed specifically for mast mounting, the antenna's heavy duty aluminium mounting tube can be mounted using the supplied parallel U-bolt clamp.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
3 dBi
Optus 4G+ (700 MHz)
compatible
3 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)
compatible
3 dBi
Telstra Next-G™ (850 MHz)
compatible
3 dBi
Vodafone 4G+ (850 MHz)
compatible
3 dBi
Optus Regional 3G (900 MHz)
compatible
3 dBi
Vodafone Regional 3G (900 MHz)
compatible
3 dBi
Telstra/Optus/Voda 4G (1800 MHz)
compatible
5 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)
compatible
5 dBi
LTE Bands 1, 33, 34 (2100 MHz)
compatible
5 dBi
All Carriers - Urban/Metro 3G (2100 MHz)
compatible
5 dBi
Optus 4G TDD (2300 MHz)
compatible
5 dBi
LTE-TDD Bands 40 (2300 MHz)
compatible
5 dBi
802.11 b/g/n/ac WiFi (2400 MHz)
compatible
5 dBi
LTE Band 41 (2500 MHz)
compatible
5 dBi
LTE Bands 7, 38 (2600 MHz)
compatible
5 dBi
Telstra 4GX Band 7 (2600 MHz)
compatible
5 dBi
All Carriers - 5G (3500MHz) compatible 6 dBi



Electrical Specifications

  • Frequency Range: 698-960 MHz / 1710-2700 MHz / 3400-3800 MHz

  • Input Impedance: 50 Ω

  • VSWR: ≤1.8:1 / ≤1.5:1 / ≤1.5:1

  • Polarisation: V + V

  • Isolation: ≥25dB

  • Vertical Beamwidth: 80° (± 5°) / 70° (± 5°) / 60° (± 5°)

  • Radiation: Omnidirectional

  • Maximum Power: 50 Watts



Mechanical/Environmental Specifications

  • Cable: Nil

  • Connector: 2 x N-Type Female

  • Radome Material: UPVC

  • Radome Colour: White

  • Temperature: -40 °C to +60 °C

  • Weight: 1.5 kg

  • Dimensions: 500 x 76 mm (L x Ø)

  • Mounting: 30-55 mm Ø pole



(COL-7-38-MIMO)

SKU COL-7-38-MIMO
Brand Telco Antennas
Shipping Weight 0.0450kg
Shipping Width 0.190m
Shipping Height 0.170m
Shipping Length 1.490m
Shipping Cubic 0.048127000m3
