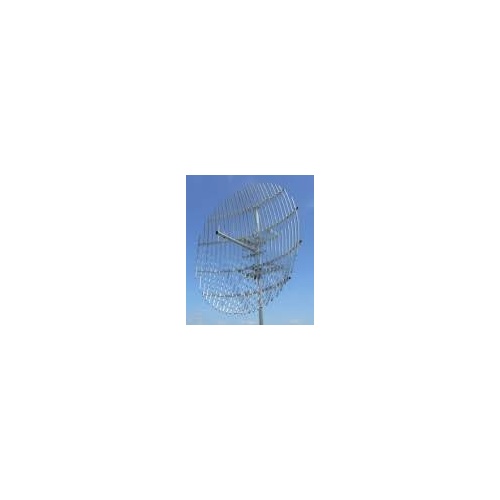

ZCG Scalar MGP-6750N 22 dBi Grid Antenna

Made to order

Key Features



  • Industrial/Carrier/Broadcast grade construction

  • Designed for LTE B28

  • High 28 dB front-to-back ratio

  • 1.8m diameter (shipped in split sections)

  • Designed and manufactured by ZCG Scalar in Australia.



Usage



  • The MGP-6750N grid pack provides a broad bandwidth across the full 698-802 MHz frequency range at better than 1.5:1 VSWR with 22.2 dBi gain at middle of the band

  • The highly directional narrow Radiation Pattern Envelope (RPE) and high side-lobe suppression make this grid pack a perfect choice for use in studio to transmitter Link (STL) applications

  • Broadcast grade, this antenna is manufactured per application with a typical leadtime of 20 days

  • An N-female connector rated for up to 100 watts input power is located at the base of the end launcher

  • The antenna is supplied in semi-kit form and requires assembly

  • The kit includes U-bolts for mounting the grid pack to a round pole between 75 mm and 115 mm in diameter.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
22.2 dBi
Optus 4G+ (700 MHz)
compatible
22.2 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)
compatible
22.2 dBi



Electrical Specifications



  • Frequency Range: 698 to 802 MHz

  • Input Impedance: 50 Ω

  • VSWR: <1.5:1 (>15 dB RL) V

  • ertical Beamwidth: 12 degrees

  • Horizontal Beamwidth: 10 degrees

  • Front to Back Ratio: >28 dB

  • Cross Polar XPD: >28 dB

  • Maximum Power: 100 Watts



Mechanical/Environmental Specifications



  • Construction: Aluminium, hand assembled

  • Cable: None

  • Connector: Integrated N Female

  • Mount: Integrated + U-Bolts 75-115 mm OD mast

  • Wind rating: 160 km/h (1.12 kN)

  • Weight: 19 kg

  • Assembled Dimensions: 1850 x 1850 mm

  • Shipping Dimensions: 1900 x 1000 x 500 mm (L x W x H)



Read More
