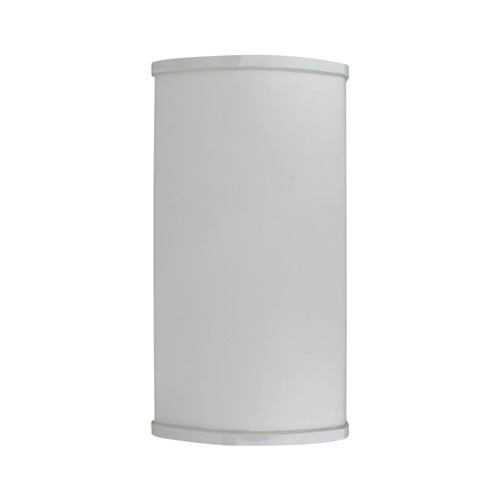

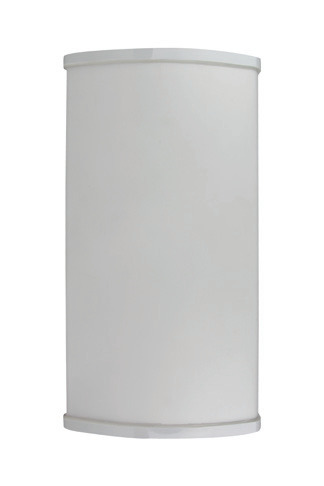

Telco SiSo Industrial Class Panel Antenna


Key Features

  • Ideal for LTE Small Cell DAS deployments

  • Industrial grade weatherproof PVC radome

  • High gain 12dBi

  • High F/B ratio

  • Integrated N Female connectors

  • Stainless steel mounting bracket

  • Ideal for LTE Small Cell DAS deployments

  • Perfectly suited for External Coverage via the Cel Fi Go

  • Wide spectrum design, suits all current and planned networks (including 700 MHz LTE).




  • This heavy duty wideband panel antenna sports an extremely wideband design - operating on two bands 698-960 MHz, 1700-3800 MHz

  • As the highest grade multiband panel antenna on the market, this antenna has an incredibly low VSWR making it the ideal antenna for commercial and industrial 4G applications, and suitable for broadcast and carrier applications

  • This Antenna covers all of the 4G Bands in use by Telstra, Optus and Vodafone

  • This Antenna is perfectly suited for External Coverage with the Cel Fi Go, with an Extremely wide 65° beamwidth and 12dBi of Gain. But as always with External Cel Fi Coverage Isolation between the Donor and Distribution Antennas is imperative, ideally there needs to be physical separation between the two Antennas as well as Shielding Via a dedicated RF Shield or the Building itself.

  • This incredibly high performance antenna, is highly recommended for most suburban, metro, and semi-rural applications


Specifications / Frequency


Network Compatibility
Telstra 4GX (700 MHz)
12 dBi
Optus 4G+ (700 MHz)
12 dBi
Telstra Next-G™ (850 MHz)
12 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map
12 dBi
Optus Regional 3G (900 MHz)
12 dBi
Vodafone Regional 3G (900 MHz)
12 dBi
Telstra/Optus/Voda 4G (1800 MHz)
12 dBi
All Carriers - Urban/Metro 3G (2100 MHz)
12 dBi
Optus/Vivid Wireless 4G (2300 MHz)
12 dBi
802.11 b/g/n/ac WiFi (2400 MHz)
12 dBi
Telstra & Optis 4G (2600 MHz)
12 dBi


Electrical Specifications


  • Frequency Range: 600 to 960 MHz / 1700 to 2700 MHz

  • Input Impedance: 50Ω VSWR: <1.7:1 / <1.7:1

  • Vertical Beamwidth: 65° (± 10°)

  • Horisontal Beamwidth: 65° (± 8°)

  • Front to Back Ratio: >25 dB / >28 dB

  • Radiation: Directional

  • Maximum Power: 150 Watts


Mechanical/Environmental Specifications


  • Construction: UPVC Radome, 304 Stainless Steel Tilt Bracket

  • Cable: none

  • Input Connector: 1x Integrated N-Type Female

  • Wind Rating: 200 km/hr

  • Temperature: -40 °C +60 °C

  • Weight: 5kg

  • Dimensions: 300 x 330 x 135 mm (L x W x D)

  • Mounting: 25-72 mm Ø pole





This antenna has a single integrated N Female connectors at the base of the antenna. There is no cable supplied.


N Flange panel mount connector

N Female Connector [pictured]

Read More


  • Specification Sheet



SKU SPOL-627-1
Brand Telco Antennas
Shipping Weight 8.4000kg
Shipping Width 0.390m
Shipping Height 0.220m
Shipping Length 0.710m
Shipping Cubic 0.060918000m3
