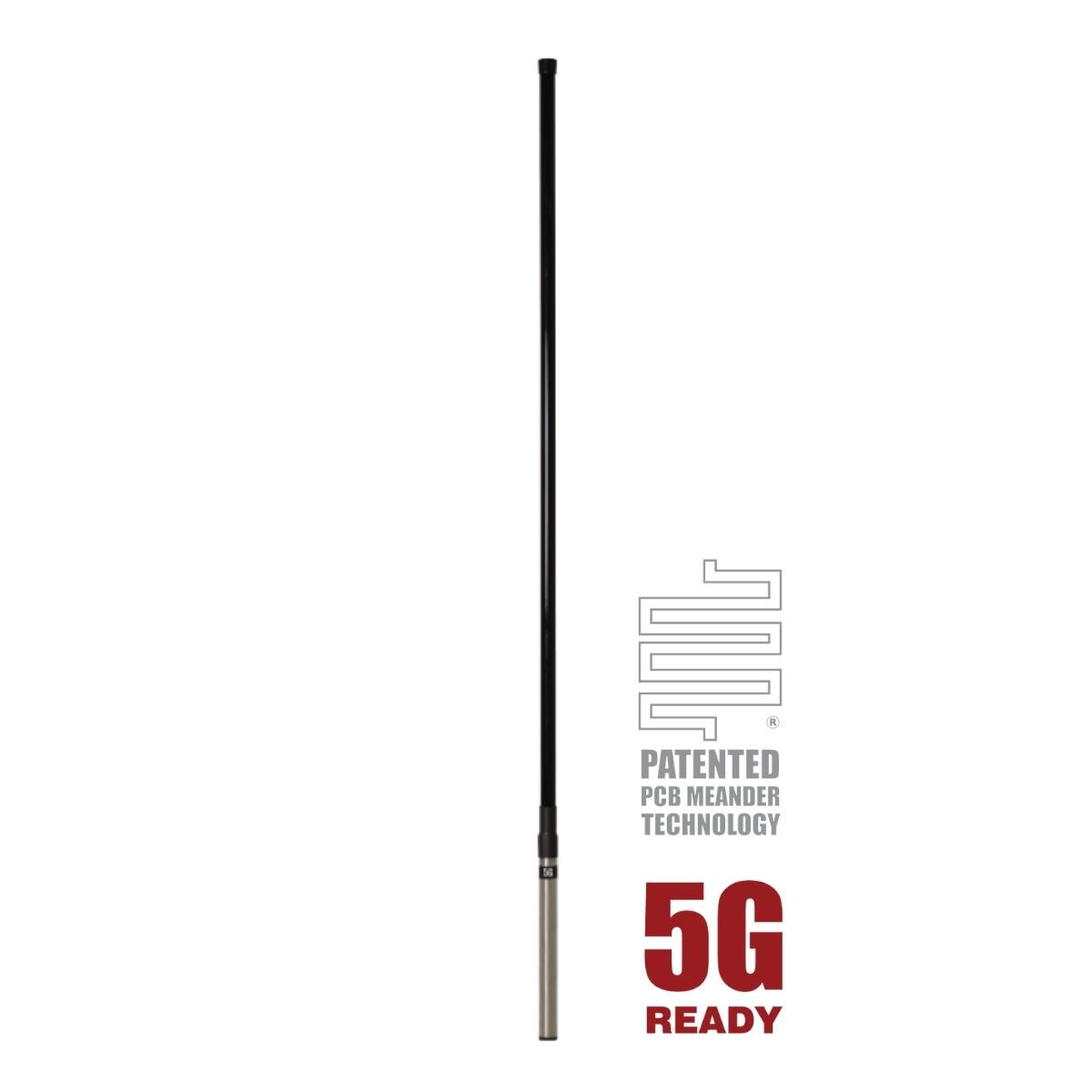

RFI COL8195 3G + 4G + 5G Collinear Base Station Mobile Antenna



Key Features

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability.

  • Ideal for new 5G/LTE networks with true multi-band coverage.

  • Supplied with 10m low loss coaxial cable, with Male SMA connector.



Additional Information

  • The evolution continues with the release of the COL8195 4G/5G LTE cellular mobile antenna

  • IThe new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800 MHz) and is ideal for use with cellular modems & active repeaters, especially when signal is poor.

  • The COL7195 provides an impressive 6.5dBi gain on lower bands such as 3G, Next-G, and 4GX, as well as a modest 4.5dBi gain on regular 4G bands and 6.5dBi across 5G.

  • The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

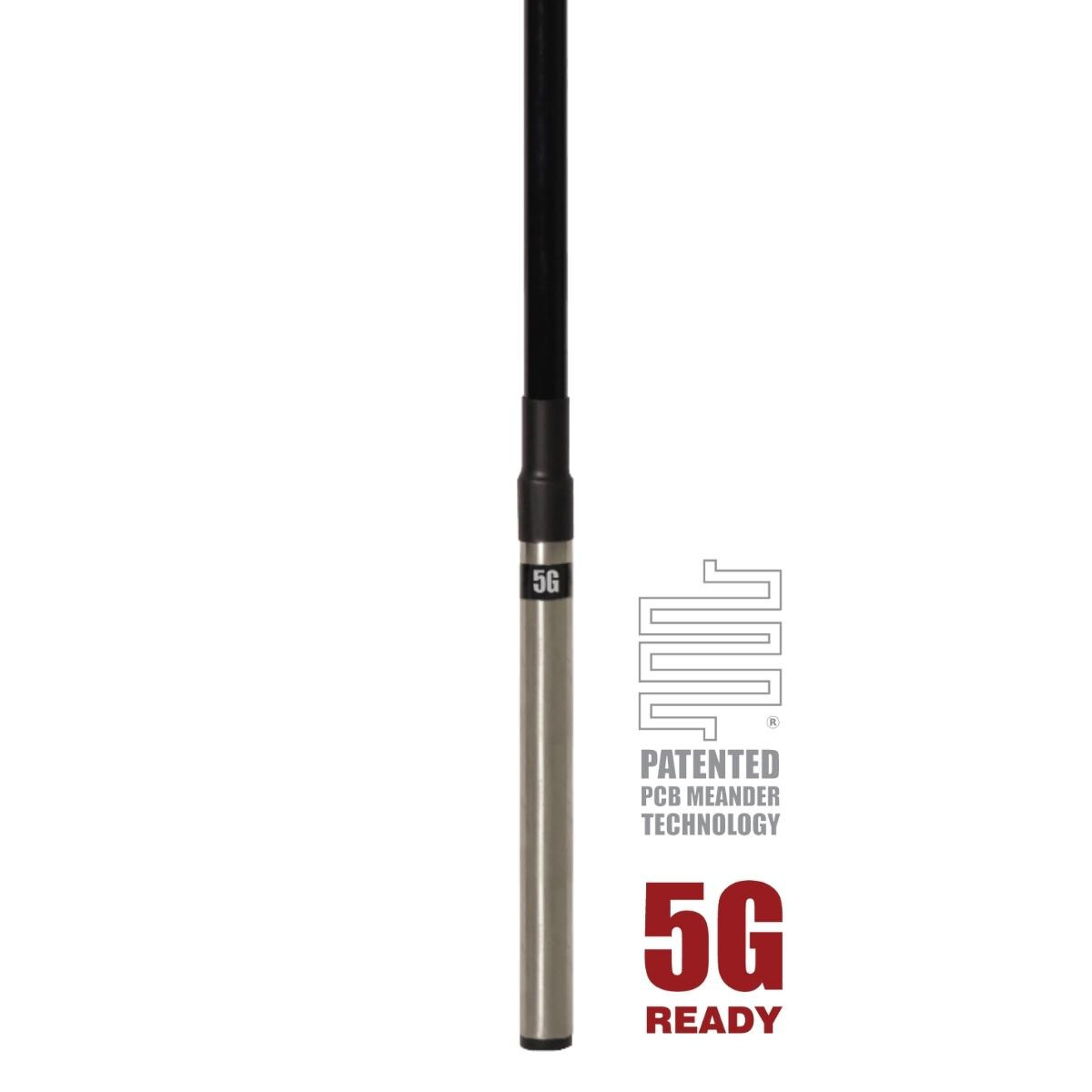

  • The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.

  • This antenna does not provide MIMO, if you require the best possible Internet performance you should use two antennas, separated by around 300mm.



Usage

  • This multi-purpose antenna is most often used as a high quality roof mounted antenna to improve poor signal inside the home

  • It is also regularly used as a durable marine antenna for using your mobile phone or wireless broadband offshore

  • The COL8195 is a brilliant solution to slow wireless broadband or poor phone reception in suburban areas, or anywhere where signal is poor inside but fine outside the house

  • If you've ever taken your mobile on to the roof of your house you've probably noticed that signal is much better - roof mounting an antenna takes advantage of this naturally stronger signal and passes it down it's 10m cable to be connected to your phone or modem

  • Supplied with 10m RG-58 cabling, 2x Stainless steel hose clamps



Specifications / Frequency

Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
6.5dBi
Optus 4G+ (700MHz)
compatible
6.5dBi
Telstra Next-G™ (850MHz)
compatible
6.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
6.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
6.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
6.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4.5dBi
Optus 4G TDD (2300MHz)
compatible
5.5dBi
Telstra 4GX (2600MHz)
compatible
5.5dBi
All Carriers 5G (3500MHz)
compatible
6.5dBi



Electrical Specifications

  • Frequency Range: 698-960 / 1710-2170 / 2300-2700 / 3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 25° / 30° / 20° / 15°

  • Maximum Power: 10Watts.



Mechanical/Environmental Specifications

  • Construction: Fibreglass radome, PCB Radiator, Aluminium mounting tube

  • Cable: 10m Cellfoil 9006 low loss coaxial

  • Connector: SMA Male

  • Female Length: 965mm

  • Weight: 0.572kg.
