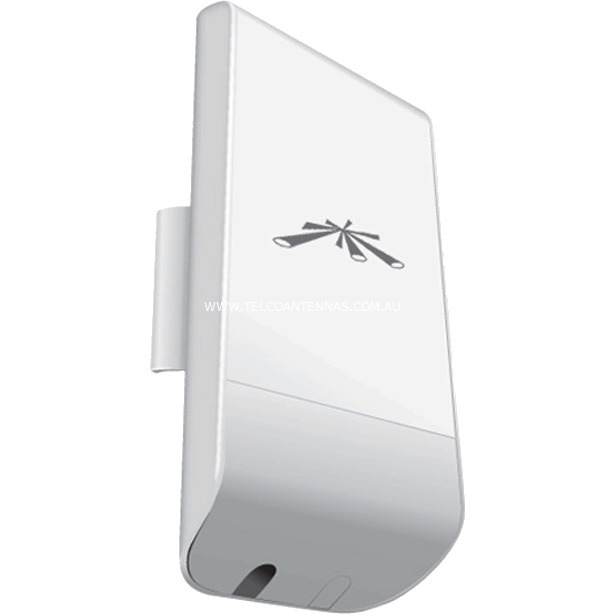

Ubiquiti NanoStation M2 LOCO (2.4GHz) Point-to-Point Wireless & WiFi AP


Key Features


  • Connect two remote locations on the one network

  • Share Internet connection between buildings, remote sites, etc.

  • Up to 200mW output power, 2x2 MIMO operation, 100Mbps

  • Integrated AirOS web software for controlling power, bridge/AP mode, etc.

  • Includes POE injector and 240V AC adaptor

  • Two units required for wireless bridge.


What is a NanoStation LOCO?


  • If you've checked out the Ubiquiti NanoStation, the more cost effective LOCO version is simply a lower power unit designed for shorter distances

  • There are some features, such as Dual-Ethernet capabilities, that the LOCO version doesn't have, so if in doubt, please read through the specification sheet at the bottom of the page.


ubiquiti nanostation m5 installation diagram setup instructions


High Speed Point-to-Point Networking


  • Forget Ethernet cable, the Ubiquiti NanoStation LOCO is ideal for bridging networks or sharing broadband between buildings

  • To install, place the units at either end of the network and connect both to Ethernet cables - for example, connect the first unit into your modem at location one, and connect the second into an Ethernet switch or WiFi access point at the other location

  • Face both units so they point towards each other and the link is established. Simple!

  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

  • Management of the Ubquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.


802.11b/g/n WiFi Access Point


  • Login to the AirOS management software and set to AP mode to create a high performance WiFi network

  • With a wide directional broadcast angle the NanoStation LOCO is ideal for covering sports grounds and outdoor areas by a sector-by-sector approach

  • You can learn how to set up the NanoStation as a long range WiFi access point by following our Guide to extend WiFi coverage using an Ubiquiti NanoStation


Ready to Install


  • This unit has all networking hardware integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment. For best performance the unit should be roof mounted, high and clear of obstructions, via it's integrated pole mounting bracket

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the NanoStation, and the other into the PoE Injector (which is plugged into AC power)

  • This allows one cable to both power the unit and also carry network traffic. We recommend using Cat6 Outdoor UV Shielded Cable with this unit.


A heads Up!


  • Surge protection should be used for all outdoor installations. Ubiquiti recommend that you use two Ethernet Surge Protectors - model ETH-SP - place one near the NanoStation and the other at the entry point to the building. The ETH-SP will absorb power surges and safely discharge them into the ground.


Read More



Setup Guides (Click Image)

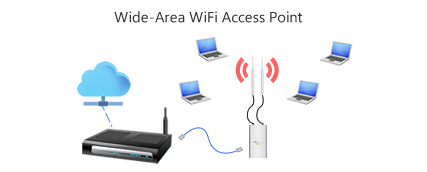

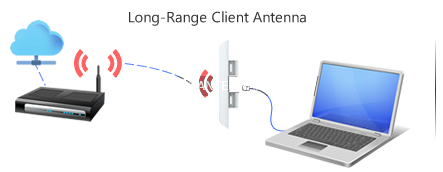

long range wifi client using ubiquiti nano as antennawide area wifi access point setup ubiquiti



direct point to point wireless bridge ubiquiti nanostation m2 m5point to multipoint wireless bridge ubiquiti nano station access point WDS



point to point link with wifi access ubiquiti airos


Brand Ubiquiti
Shipping Weight 0.9000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
