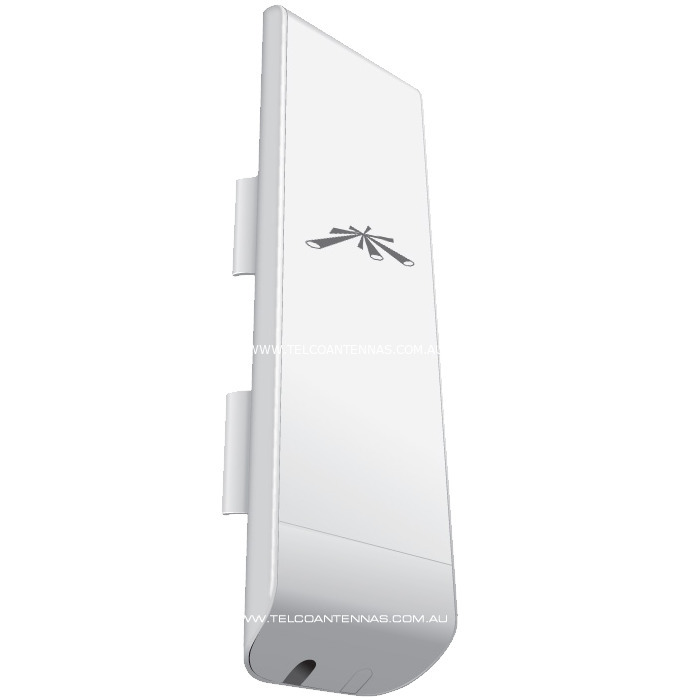

Ubiquiti NanoStation NSM2 (2.4GHz) Wireless Bridge & WiFi AP


Key Features


  • Connect two remote locations on the one network

  • Share Internet connection between buildings, remote sites, etc.

  • Up to 600mW output power, 2x2 MIMO operation, 150Mbps

  • Integrated AirOS web software for controlling power, bridge/AP mode, etc.

  • Includes PoE injector and 240V AC adaptor

  • Two units required for wireless bridge

  • High speed point-to-point networking.




  • Forget Ethernet cable, the Ubiquiti NanoStation is ideal for bridging networks or sharing broadband across distance

  • To install, place the units at either end of the network and connect both to Ethernet cables - for example, connect the first unit into your modem at location one, and connect the second into an Ethernet switch or WiFi access point at the other location

  • Up to six remote buildings can be linked over one connection with the NanoBridge supporting AP-WDS.

ubiquiti nanostation m5 installation diagram setup instructions


  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

  • Management of the Ubiquiti device couldn't be easier with SSH and SNMP protocol support and an intuitive HTTP interface.


802.11b/g/n WiFi Access Point


  • Login to the AirOS management software and set to AP mode to create a high performance, long range WiFi network

  • With a wide directional broadcast angle the NanoStation M2 is ideal for covering sports grounds and outdoor areas with a sector-by-sector approach

  • You can learn how to set up the NanoStation as a long range WiFi access point by following their Quick Start Installation Manual


Ready to Install


  • This unit has all networking hardware integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment

  • For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the NanoStation, and the other into the PoE Injector (which is plugged into AC power) - this allows one cable to power the unit and also carry network traffic

  • We recommend using Cat6 Outdoor UV Shielded Cable with this unit.


A heads Up!


  • Surge protection should be used for all outdoor installations. Ubiquiti recommend that you use two Ethernet Surge Protectors - model ETH-SP - place one near the NanoStation and the other at the entry point to the building

  • The ETH-SP will absorb power surges and safely discharge them into the ground.


Read more



Setup Guides (click on image)


long range wifi client using ubiquiti nano as antennawide area wifi access point setup ubiquiti



direct point to point wireless bridge ubiquiti nanostation m2 m5point to multipoint wireless bridge ubiquiti nano station access point WDS






sharing internet connection between houses with ubiquiti nanostation m5 rural farm




Brand Ubiquiti
Shipping Weight 0.0450kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
