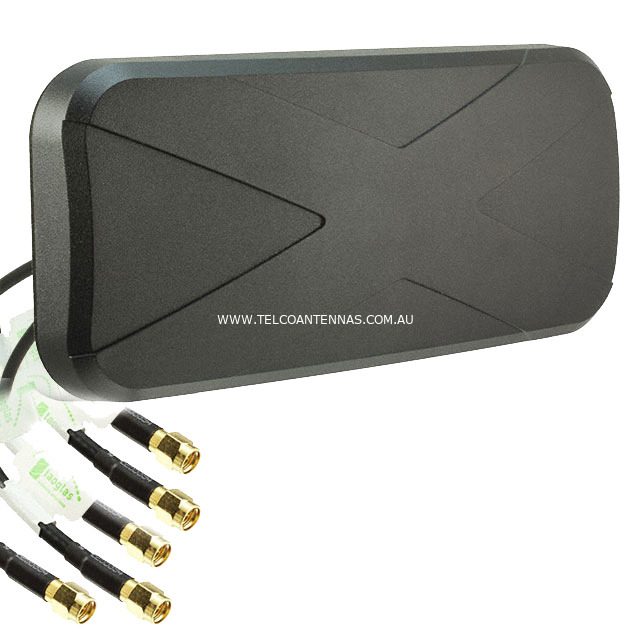

Taoglas Storm MA450 - 3G+4G+4GX & GPS & WiFi MIMO 5-in-1 Antenna

Key Features

• 5-in-1 combination (5x cables)

• Covers all cellular bands 700-3600MHz

• 2.4 & 5.8GHz dual band WiFi

• MIMO on both cellular and WiFi bands

• Active GPS

• Screw-mount

• Super low-profile vandal resistant housing

• Aerodynamic IP67 enclosure

• 5x 5 metre CFD200 cable with SMA Male and RP-SMA Male connectors.

Usage

• The Storm MA450 antenna is a world first, a 5in1 low profile, heavy-duty, fully IP67 waterproof external antenna used for worldwide telematics and IoT applications which require best in class LTE, GNSS, and Wi-Fi performance

• Until the arrival of the Storm, achieving high efficiency in LTE and Wi-Fi required the use of large dome antennas typically 80mm+ in height

• This unique product, only 31mm high, delivers powerful worldwide 4G LTE MIMO antenna technology, plus GPS-GLONASS-BEIDOU for next generation location accuracy

• The antenna covers legacy 2G and 3G bands for devices that fallback where 4G is unavailable

• Dual-band MIMO Wi-Fi antennas enable high throughput Wi-Fi speeds.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		0.55dBi
Optus 4G+ (700MHz)		0.55dBi
Telstra Next-G™ (850MHz)		-0.63dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		-0.63dBi
Optus Regional 3G (900MHz)		0.46dBi
Vodafone Regional 3G (900MHz)		0.46dBi
Telstra/Optus/Voda 4G (1800MHz)		4.48dBi
All Carriers - Urban/Metro 3G (2100MHz)		2.31dBi
802.11 b/g/n/ac WiFi (2400MHz)		2.97dBi
Telstra 4GX (2600MHz)		2.57dBi
802.11 n/ac WiFi (5800MHz)		3.18dBi

Electrical Specifications

• Frequency Range: 698-960 / 1575.42 / 1602 / 1710-2170 /2490-2690 / 3300-3600MHz / 4900-5850MHz

• Input Impedance: 50Ω

• VSWR: <3.0:1

• Vertical Beamwidth: See specification sheet

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: Black Wonderloy PC/ABS Alloy radome, Nickel plated steel nut, CAN10 Zinc Alloy Base & Thread

• Cable: 4x 5m CFD200, 1x 5m RG174 (GPS)

• Connector: 3x SMA Male, 2x RP-SMA (WiFi)

• Operating Temperature: -40°C to +85°C

• Weight: 1470g

• Dimensions: 216.24 x 93.25 x 30.95mm (L x W x H)

• Mounting: 20mm M20 thread stud
