Telco X1 Pro

Telco X1 Pro main image Telco X1 Pro image

Wireless Gigabit Modem Router

600Mbps CAT 12 LTE-Advanced Pro

Developed by Telco Antennas in Brisbane, Australia.




With the Telco X1 Pro we are setting a new standard of performance.  Designed for rapid deployment of reliable high speed internet anywhere, we are proud to introduce the Telco X1 Pro LTE-A Pro Modem Router, a complete site connectivity solution for the most demanding customers who require high throughput and availability from a convenient, easy to use device.

  • Up to 600Mbps down / 150Mbps up internet speeds - LTE Advanced Pro technology
  • 802.11ac Wave 2 WiFi technology and Gigabit Ethernet
  • Pro features included: Band Locking and Bridge Mode
    • Support for Telco Cloud Management System
  • Small form factor and modular design featuring external antenna connectors for mobile data and WiFi
  • Optional mounting brackets or DIN rail brackets to integrate the X1 Pro into any cabinet, case, waterproof box, vehicle, vessel, or mobile plant; and you can even just sit it on your desk.
  • Deploy high speed internet access anywhere -- this modem features global support, operating on network frequency bands used across the entire world.



  • Shred through data packets with a high performance quad core ARM processor that never misses a beat.
  • Running the acclaimed TelcOS Melaleuca, which is hailed by customers for its ease of use, rich features and stability, you can get your site up to full gallop in a matter of minutes. Place the SIM card from your phone into the Nano SIM tray of the X1 Pro.  And by full gallop we mean up to 600Mbps down and 150Mbps up over the LTE network, unconstrained by the gigabit ethernet switch and 1200Mbps WiFi
  • Telco X1 Pro is perfect for all business or connectivity needs such as video conferencing, content streaming, high speed file transfer, VPN and more.





Stay In Touch

Subscribe to our newsletter and you will be notified when the X1 Pro is available























Ideal Use Cases

  • Establishing an ultra fast primary or backup Internet connection via 4G LTE
  • Rural areas, or areas with poor signal quality (our ultra-sensitive modem picks up weak signal best)
  • Failover between wired WAN and CAT-12 4G LTE-A Pro
  • Small to medium enterprise
  • Permanent, semi-permanent or temporary deployments
  • Vehicle, marine or caravan use
  • Home/Office installations that require high speed 4G internet
  • Creating high data capacity dual band WiFi hotspots
  • Being a Cat-12 LTE-A Pro modem, in areas with poor signal the X1 Pro works better and is much more reliable than Cat-4 or Cat-6 LTE modems


Top Features

  • Fully featured MIMO LTE Router
  • User-Acclaimed TelcOS Melaleuca™ Firmware
    • Band Locking
    • Bridge Mode
    • Telco Cloud Management System™ support for remote configuration
  • Powerful, dual band 2.4GHz and 5GHz WiFi
    • New 802.11ac Wave-2 WiFi
  • 600Mbps/150Mbps (DL/UL) Cat-12 LTE-A Pro Modem
    • Global Frequency Support - use it anywhere in the world
  • Quad-core ARM Cortex A7 processor (IPQ4019 SoC)
  • Industrial rugged design
  • External, tray style SIM card slot (nano SIM)
  • DIN Rail support, 3m power cable, multiple mounting options
    • Modular mounting options for DIN rail and backboard mounting
  • External Antenna Connectors - SMA Female (LTE) and RP-SMA Female (WiFi)

Cloud Ready



Servicing

  • mining
  • construction
  • field research
  • clubs
  • parklands
  • WISPs
  • outdoor events
  • mobile vendors
  • hospitality
  • marine
  • transportation
  • sport
  • emergency services
  • agriculture
  • retreats
  • digital signs
  • vending machines
  • and more

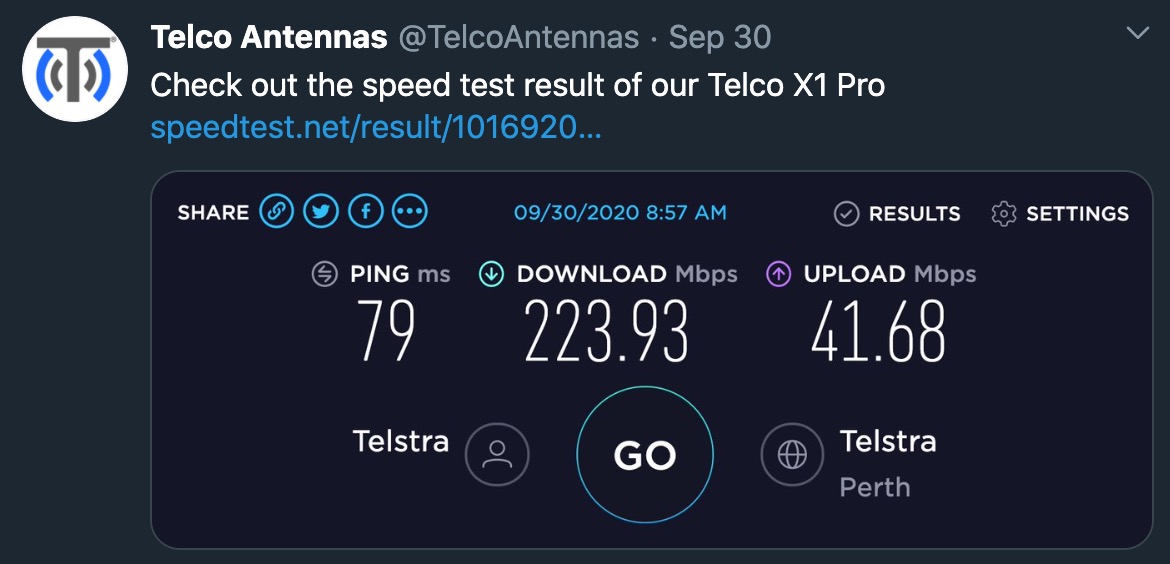

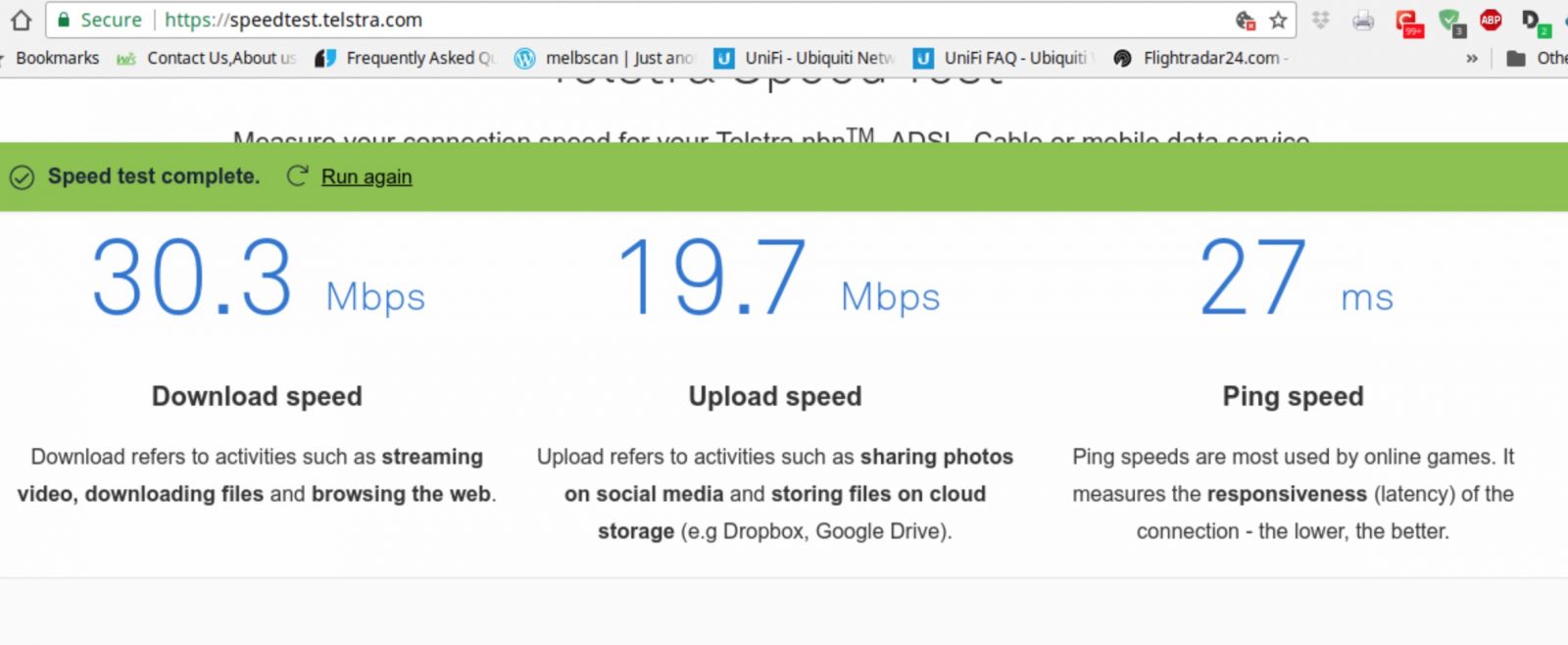

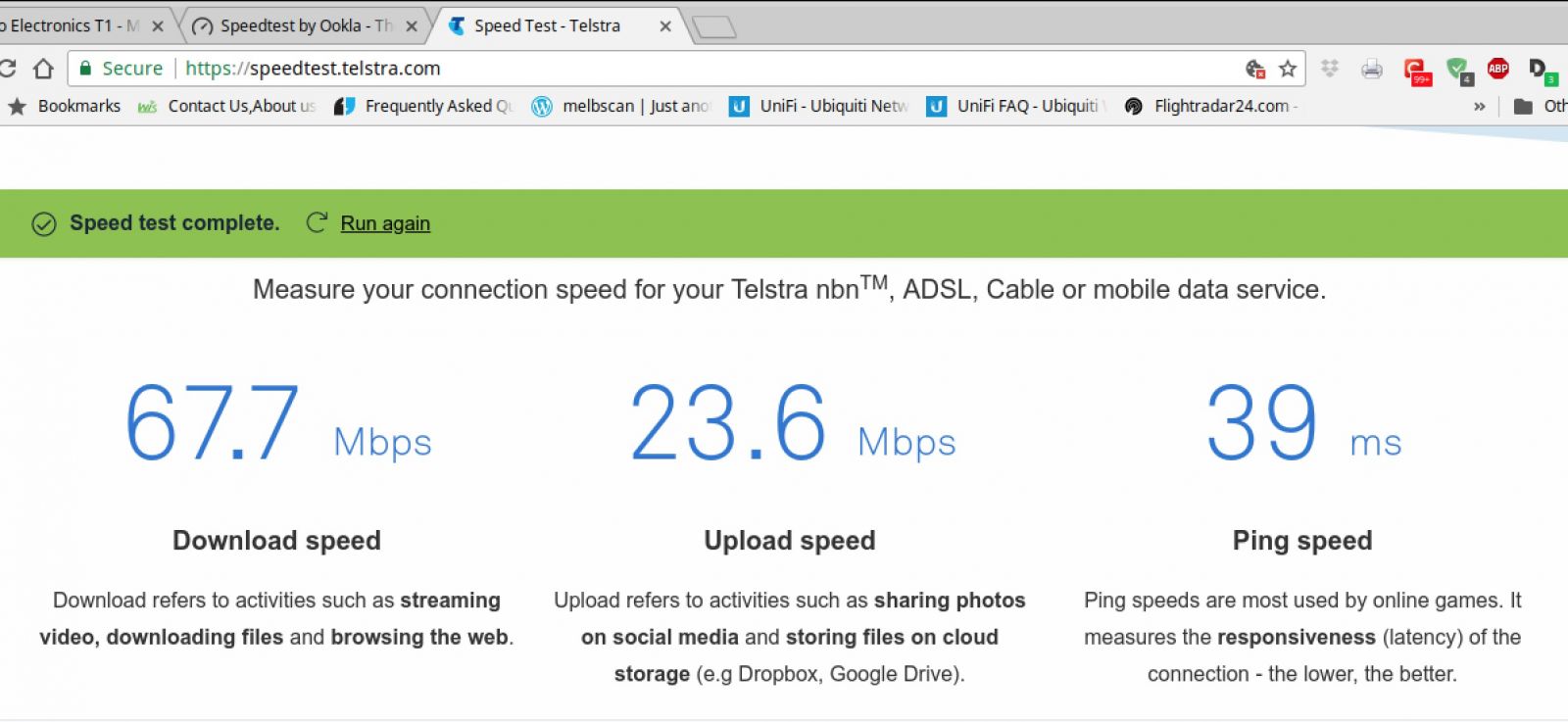

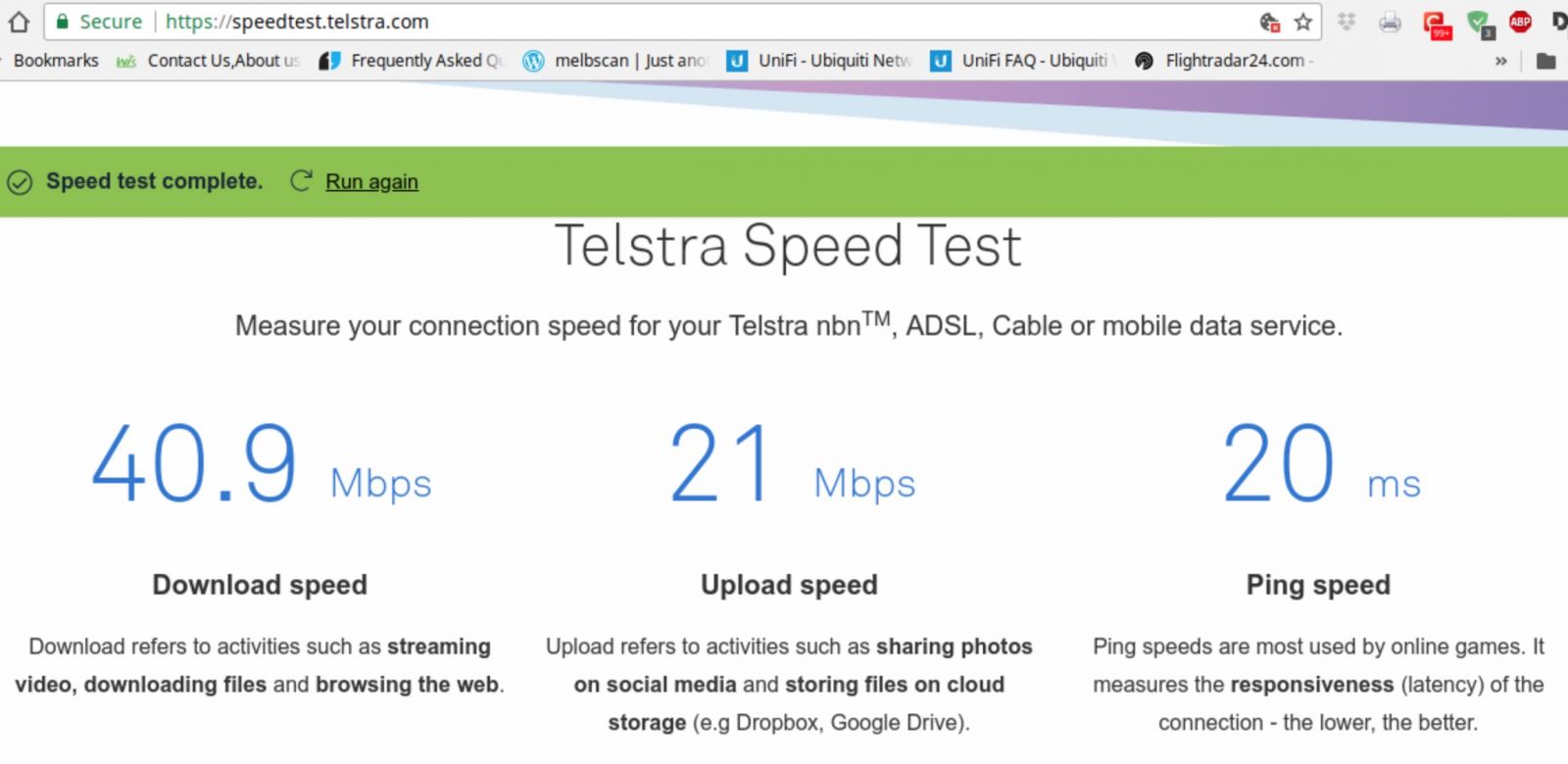

Performance Comparisons

All trademarks belong to their respective owners.



Telco X1 Pro

Telco T1



NETGEAR® Nighthawk® M1



Comset CM210Q-W








Designed from the ground up by Telco Antennas in Brisbane Australia







Telco X1 Pro is the ultimate in modem router performance.  Designed to be uncompromisingly fast, unbelievably rugged, and shock tested for reliability you can count on, the Telco X1 Pro delivers 600Mbps MIMO CAT-12 LTE-A Pro connectivity, gigabit ethernet, and dual band 802.11ac Wave-2 WiFi in a rugged, mountable package ready for indoor or enclosure installation.

Maximum Performance

Shred through data packets with an extremely powerful quad core, hardware accelerated Qualcomm® IPQ4019 ARM System-on-a-Chip (SoC).

MIMO LTE Advanced Pro

Multiple-In Multiple-Out (MIMO) is the cornerstone of LTE-Advanced Pro and the X1 Pro gives you everything you need to max out your connection to the Category 12 LTE-Advanced Pro specification, starting with: external antenna connectors, global frequency band support, band locking, custom APN selection and bridge mode.

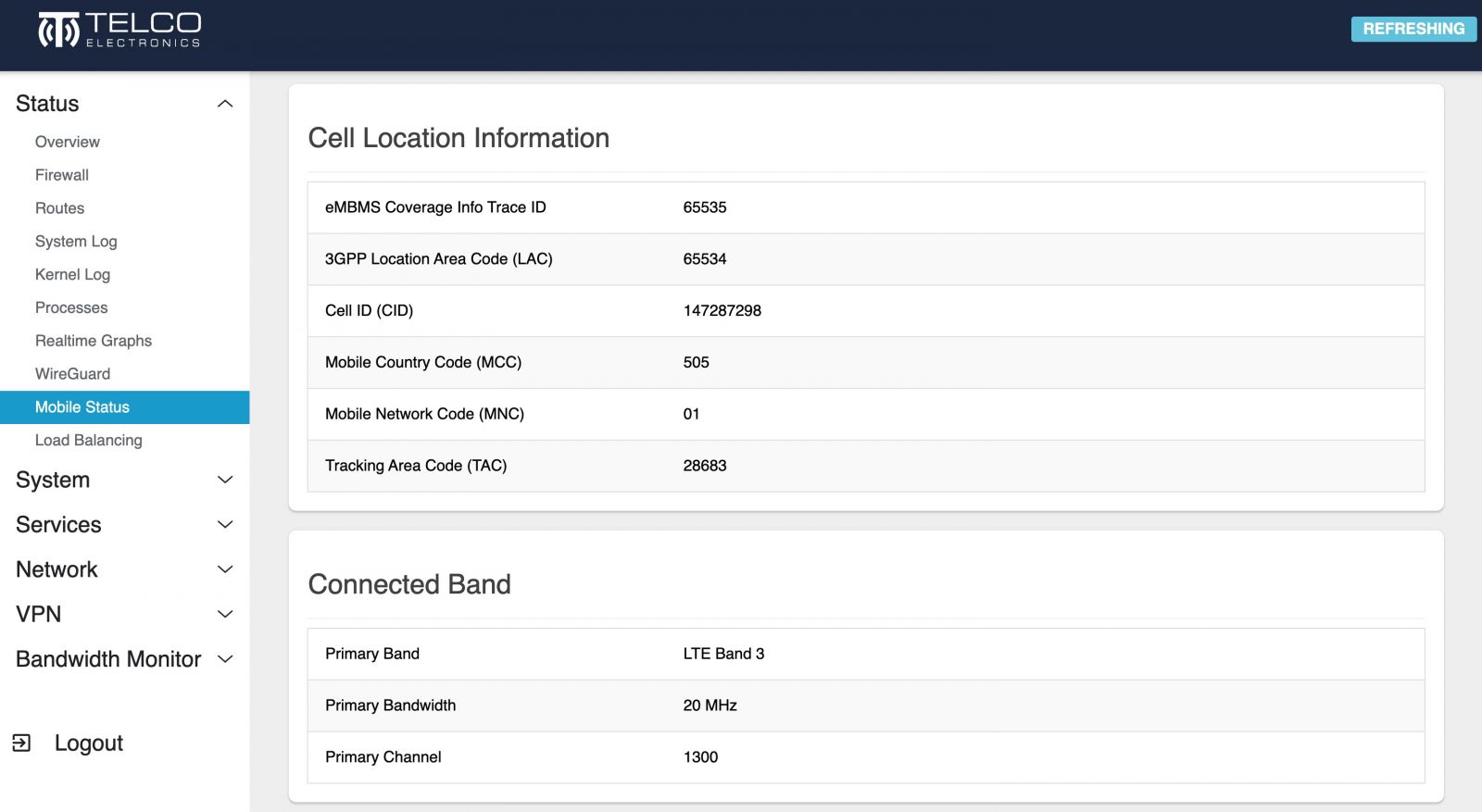

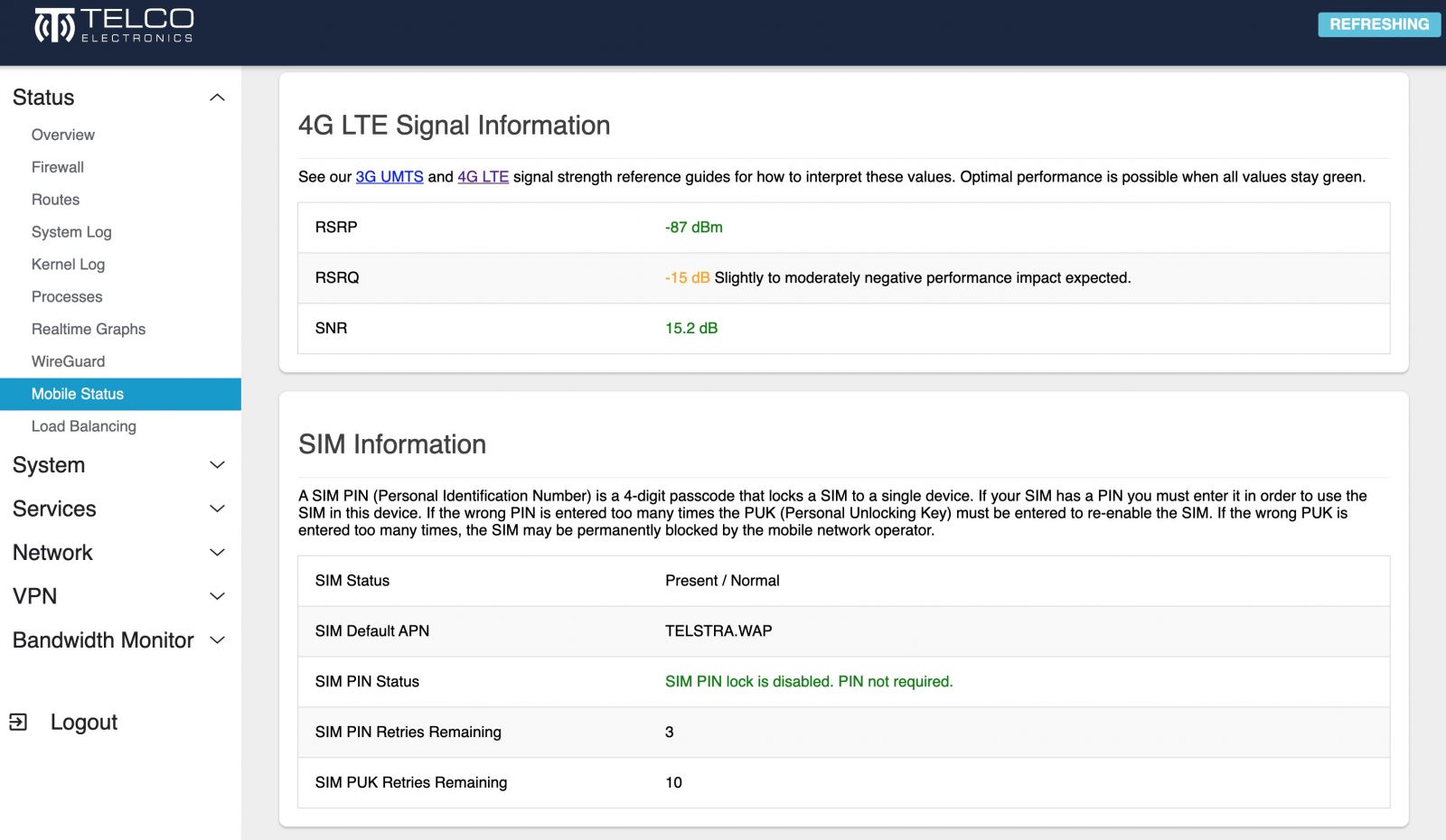

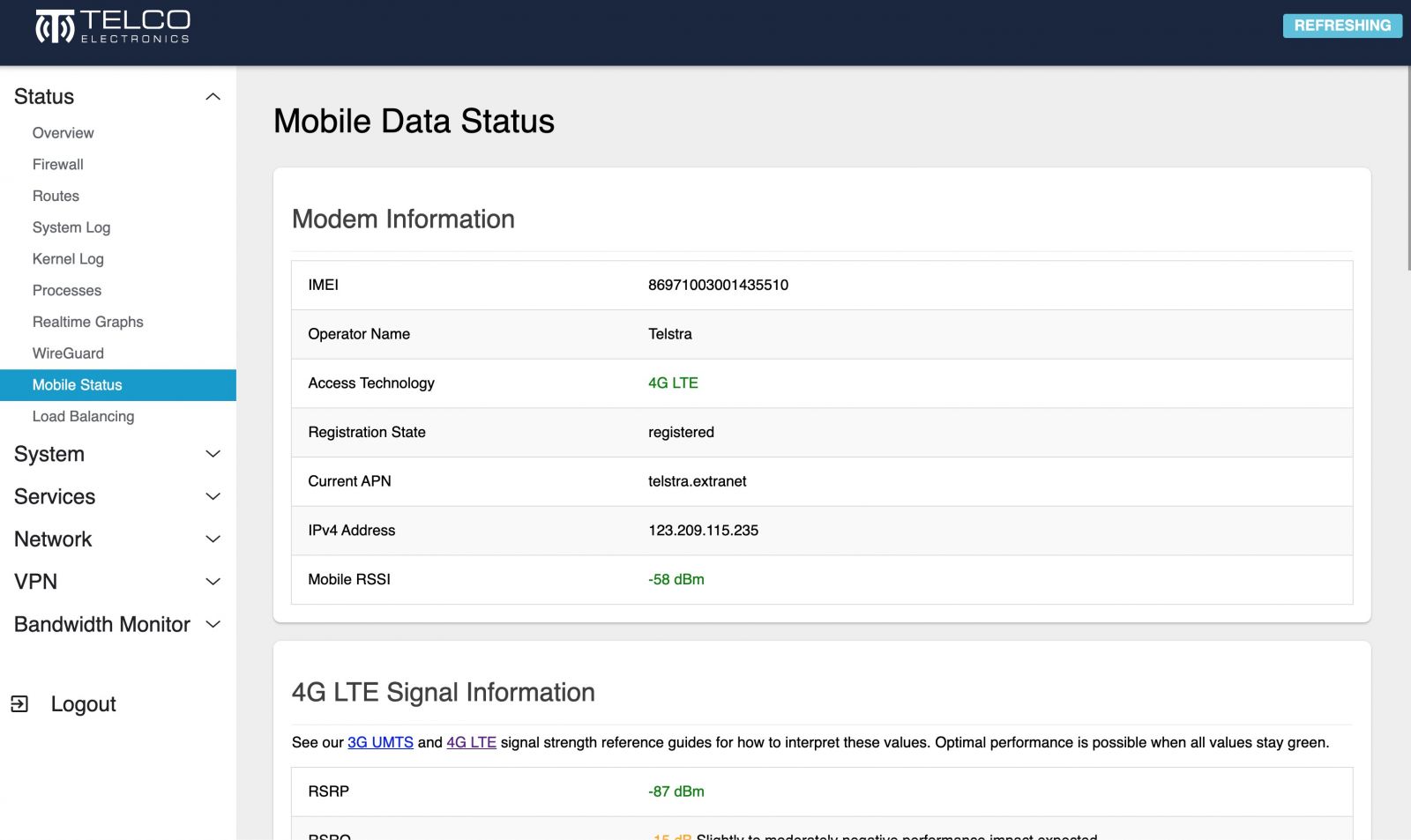

TelcOS™ Melaleuca



Made with trusted, industry standard technology, and it's open source

  • Powerful, yet easy and secure embedded OS designed and developed by Telco Antennas
  • Direct support for Australian mobile networks
  • Reliable Wifi with options including: guest networks, scheduling, client isolation
  • Secure firewall with support for port forwarding, traffic rules and more
  • Download backups, or clone a configuration to multiple X1 Pro's with a single file
  • Latest security patches applied
  • Incorporates KRACK Wifi vulnerability countermeasures
  • Mobile browser support
  • DHCP server including address reservations
  • Wake on Lan (WoL) - wake up other computers attached to the X1 Pro remotely
  • Ping reboot - reboot if a host is unavailable for too long
  • Remote logging - send logs to a logging server
  • Built with a rock-solid Linux® core based on the latest stable OpenWrt® *
  • Includes the latest in VPN technology: WireGuard®



Band Locking

  • Lock on to the best frequency bands in your area
  • Tune the X1 Pro to your antenna






Specifications / Frequency



Electrical

  • IEEE 802.11/b/g/n/ac

  • Antenna connectors

    • 2x Mobile data: SMA Female antenna connector

    • 2x Wifi: RP-SMA Female

  • 5GHz Wifi
    • up to 900Mbps
    • 40MHz/80MHz channel widths
    • Up to 1000mW transmit power
  • 2.4GHz WiFi
    • up to 300Mbps capacity

    • up 100m radius outdoor coverage area 30m indoor

    • Recommended for up to 100 clients

    • 20MHz/40MHz channel widths

  • Five ports - 4 x LAN - 1 x WAN

  • Full SOHO (small office/home office) router capabilities

    • Can be used as a standalone device, or provide 4G to an existing network setup:

      • DHCP

      • Firewall

      • VPN - server and client

  • Cat12 LTE Advanced Pro modem

    • Peak Download Rate: 600Mbps

    • Peak Upload Rate: 150Mbps

    • MIMO Antenna Compatible

    • 3x Carrier Aggregation, 256QAM

      • Maximum aggregated bandwidth: up to 60MHz (20MHz + 20MHz + 20MHz)

    • Transmit Power (max)

      • LTE Bands: 23 dBm +/- 2dB

      • UMTS Bands: +24 dBm +/- 3dB

      • Supported Frequency Bands

      • LTE Band 1
      • LTE Band 2
      • LTE Band 3
      • LTE Band 5
      • LTE Band 7
      • LTE Band 8
      • LTE Band 9
      • LTE Band 12
      • LTE Band 13
      • LTE Band 14
      • LTE Band 17
      • LTE Band 18
      • LTE Band 19
      • LTE Band 20
      • LTE Band 21
      • LTE Band 25
      • LTE Band 26
      • LTE Band 28
      • LTE Band 29
      • LTE Band 30
      • LTE Band 32
      • LTE Band 38
      • LTE Band 39
      • LTE Band 40
      • LTE Band 41
      • LTE Band 66
      • UMTS Band 1
      • UMTS Band 5
      • UMTS Band 6
      • UMTS Band 8
      • UMTS Band 9
      • UMTS Band 19
  • 1x Nano-SIM slot with tray
  • Quality Assured: ISO 9001
  • Power consumption: <12W

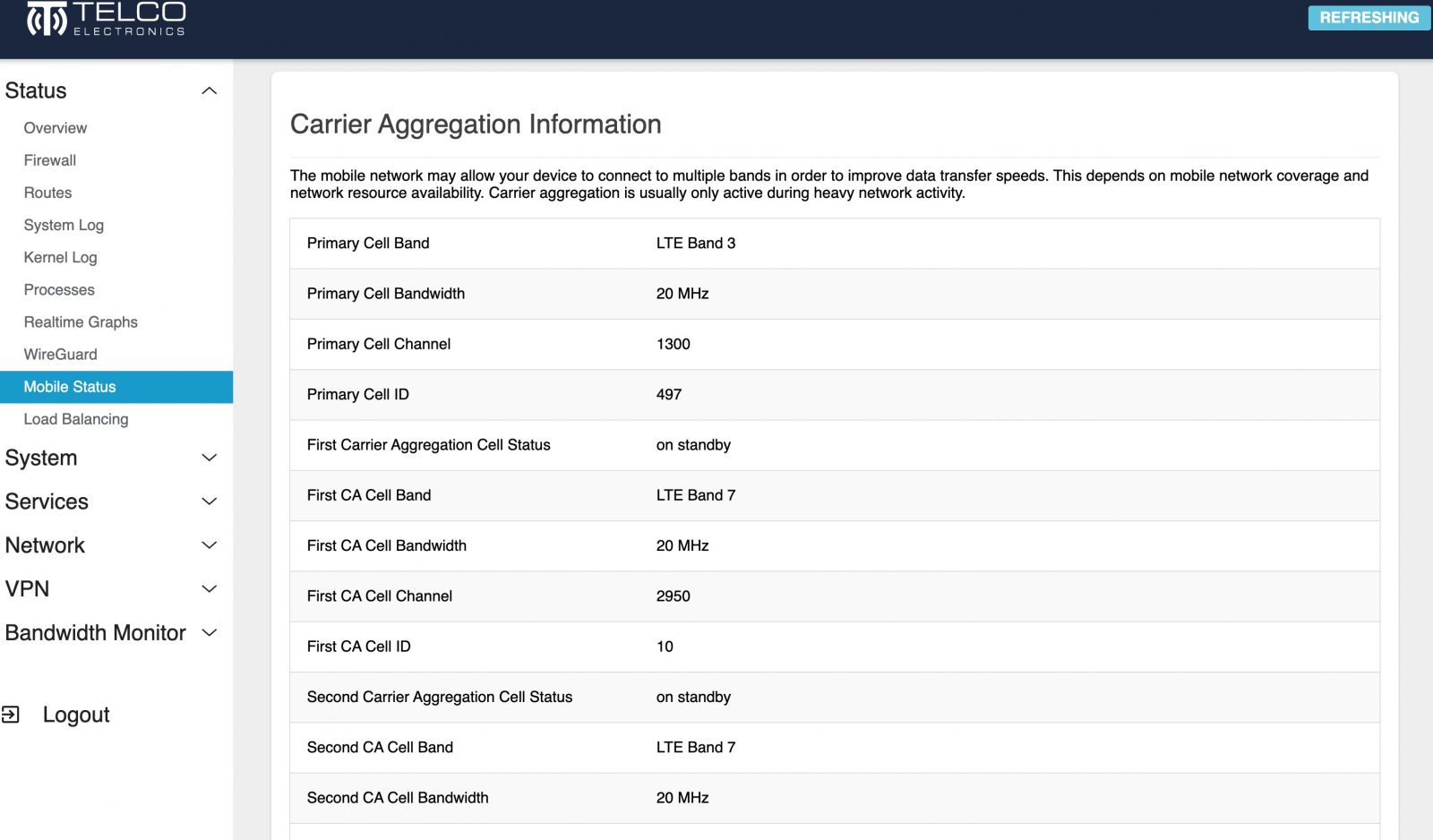

3x Carrier Aggregation

The Telco X1 Pro is capable of combining up to 3 LTE bands to maximise data throughput capacity and improve network performance.



Supported Frequency Bands - Global

Full support for frequency bands used across the entire globe. Australian bands in bold.

  • 4G LTE/LTE Advanced
    • B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B17, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B66
  • 3G
    • TD-SCDMA
      • B39
    • WCDMA
      • B1, B2, B3, B4, B5, B8, B9, B19
Network Service Compatibility
Yes/No
Telstra 4GX Band 28 (700 MHz)
compatible
Optus 4G+ Band 28 (700 MHz)
compatible
Telstra Next-G™ Band 5 (850 MHz)
compatible
Vodafone 4G+ Band 5 (850 MHz)* *Please check Vodafone Coverage Map
compatible
Optus Regional 3G Band 8 (900 MHz)* *Please check Optus Coverage Map.
compatible
Vodafone Regional 3G Band 8 (900 MHz)* *Please check Vodafone Coverage Map.
compatible
Telstra/Optus/Vodafone 4G Band 3 (1800 MHz)
compatible
All Carriers - Urban/Metro 3G Band 1 (2100 MHz)
compatible
Optus 4G TDD Band 40 (2300 MHz)
compatible
Telstra 4G Band 8 (900MHz)
compatible

Telstra 4GX Band 7 (2600 MHz)
compatible




Attention Optus Fixed Wireless Customers

Optus is not allowing third party devices to access their Fixed Wireless network which uses the APN LTEBROADBAND.  Only Optus branded devices can access the LTEBROADBAND network.  Unfortunately this means you cannot use a Telco T1 to access this closed network.  The Optus Mobile Data network, however, does allow third party devices, so the Telco T1 can be used on that network.  For details please see the Optus Critical Information Summary under Equipment Needs.



Wifi

  • Dual Band IEEE 802.11b/g/n/ac Wave-2 WiFi up to 1200Mbps
  • 20MHz/40MHz/80MHz channel width
  • Up to 1000mW transmit power
  • Modes
    • Access Point
    • Client
    • Ad-hoc
    • IEEE 802.11s Mesh
    • Monitor
  • WDS - Wireless Distribution System
  • Encryption
    • WPA2-PSK
    • WPA-PSK/WPA2-PSK Mixed mode
    • WPA-PSK
    • WEP Shared Key
    • WEP Open System
    • No encryption
  • MAC Address Filter
  • Supports up to 4 SSID's with unique security and firewall profiles
  • Guest SSIDs
  • Isolate Clients - prevents client-to-client communication
  • Hide SSID



Physical

  • Height: 30mm

    • With antenna: add 140mm to height

  • Width: 155mm

  • Depth: 110mm

  • Weight: 200g

  • Material: Iron

  • Operating temperature: -10° to +55° C

  • Operating humidity: 10% to 90% non-condensing

  • Various mounting options

  • Small form factor for versatile installation





Power adaptor (PoE, included)

  • Australian plug
  • Input: 100~240V 50/60Hz 0.5A
  • Output: 12V/2A



Package contents

  • LTE Advanced Pro Wireless Gigabit Dual Band Wireless Router (Telco X1 Pro)

  • Power adaptor (Australian plug)

  • 4x antennas - 2x LTE and 2x WiFi

  • Quick start guide




Read more











RCM Certified
