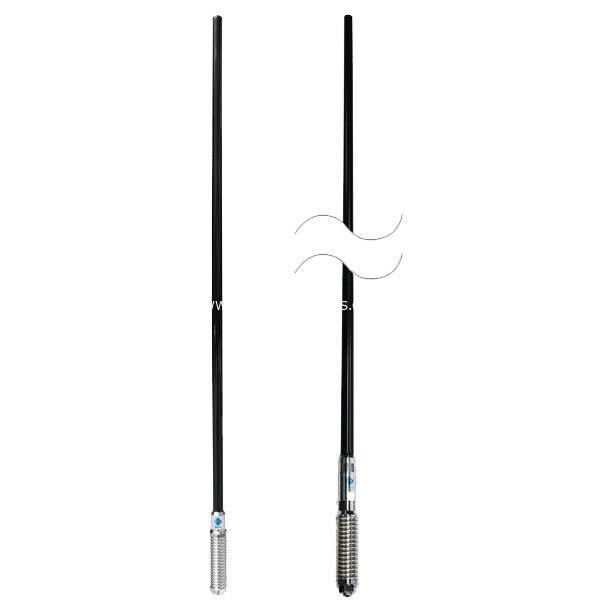

RFI Town & Country Pack, CDQ8199 8.5dBi Cellular Mobile + CDQ7194 5.5dBi Whip Antenna



Key Features

  • This is the perfect Antenna setup for the Traveller, featuring a High Gain 8.5dBi Antenna for the remote areas and the Mid Gain 5.5dBi whip for the more hilly regions

  • Ideal for all new 4G & 5G networks with true multi-band coverage

  • Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability

  • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security purposes

  • Supplied with 5m low loss coaxial cable, with an SMA Male connector.



CDQ7199 Features

  • As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive signal
  • With a significantly higher gain than the CDQ8194 and CDQ8195, the CDQ7199 is the best performing antenna in flat outback and rural areas, where cell towers are few and far between

  • The CDQ8100 series is designed with our Q-Fit® system for quick and simple removal of the whip section - this allows users to remove the whip section when entering car washes, low height areas such as car parks and for security

  • The antenna is provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed

  • With a 16mm stud mount on an heavy duty electropolished stainless steel spring, these antennas may be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks

  • The CDQ8199's fully ground-independent design results in true 8.5dBi gain regardless of mounting position.

CDQ7194 Features

  • In hilly areas, cell towers are usually located at the peak of the hill, and if you've got a very high gain antenna (like 9dBi) chances are the antenna won't have a tall enough angle to receive from the tower

  • The CDQ8194's 5dBi gain is perfect for those in the southern states or anyone planning on travelling through hilly ranges

  • "Q-Fit™ removable whip system for fast and simple removal when entering low height areas, car washes or for antenna security." - read more on the RFI website



Specifications / Frequency

Network Compatibility
Yes/No
CDQ7194 Gain
CDQ7199 Gain
Telstra 4GX (700MHz)
compatible
5.5dBi
8.5dBi
Optus 4G+ (700MHz)
compatible
5.5dBi
8.5dBi
Telstra Next-G™ (850MHz)
compatible
5.5dBi
8.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
5.5dBi
8.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
5.5dBi
8.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
5.5dBi
8.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4.5dBi
4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4.5dBi
4.5dBi
Optus 4G TDD (2300MHz)
compatible
5.5dBi
5.5dBi
Telstra 4GX (2600MHz)
compatible
5.5dBi
5.5dBi
All Networks 5G (3500MHz) compatible 6.5dBi 6.5dBi



Electrical Specifications

  • Fequency Range: 698-960MHz / 1710-2170MHz / 2300-2700 / 3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • CDQ7199  Vertical Beamwidth: 15° / 30° / 20° / 15°

  • CDQ7194  Vertical Beamwidth: 30° / 30° / 20° / 15°

  • Maximum Power: 10Watts.



Mechanical Specifications

  • Construction: Fibreglass radome, PCB Radiator, electro-polished stainless steel spring

  • Cable: 5m Cellfoil 9006 low loss coaxial

  • Connector: SMA Male

  • CDQ7199 Length: 2080mm

  • CDQ7199 Weight: 1.7kg.

  • CDQ7194 Length: 735mm

  • CDQ7194 Weight: 0.7kg



Connection

  • This antenna has a 5m cable that terminates with an SMA Male connector

Please contact us If you'd like a shorter length of cable, or a different connector and we will customise this antenna for you.



A heads up!

over-size item symbol sign

  • This product is over 2m in length and must be sent by specialist freight companies

  • Understandably a 2m long cardboard tube can be easily damaged, so this product is shipped in a custom made PVC enclosure

  • Due to the costs incurred, shipping of this item is expensive, irrespective of whether we're shipping it to Sydney metro, or to Canada.



Read More



RFI wireless logo



(CDQ8199-94-WHIP)

SKU CDQ8199-94-WHIP
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 2.200m
Shipping Cubic 0.044000000m3
